Highlights
High‑precision Processing

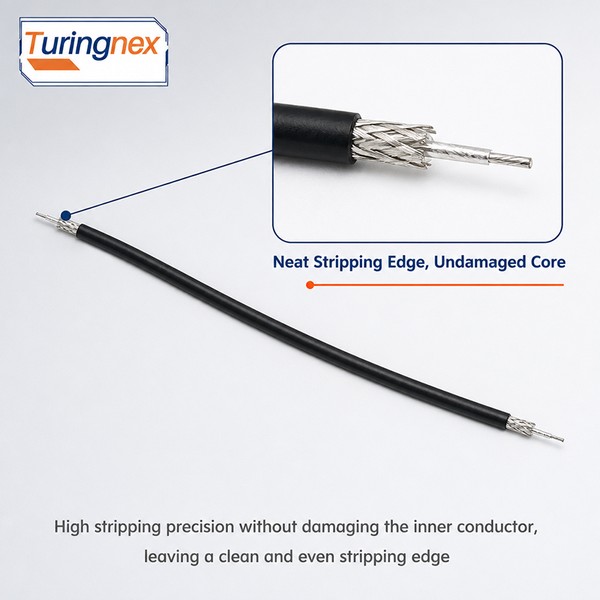

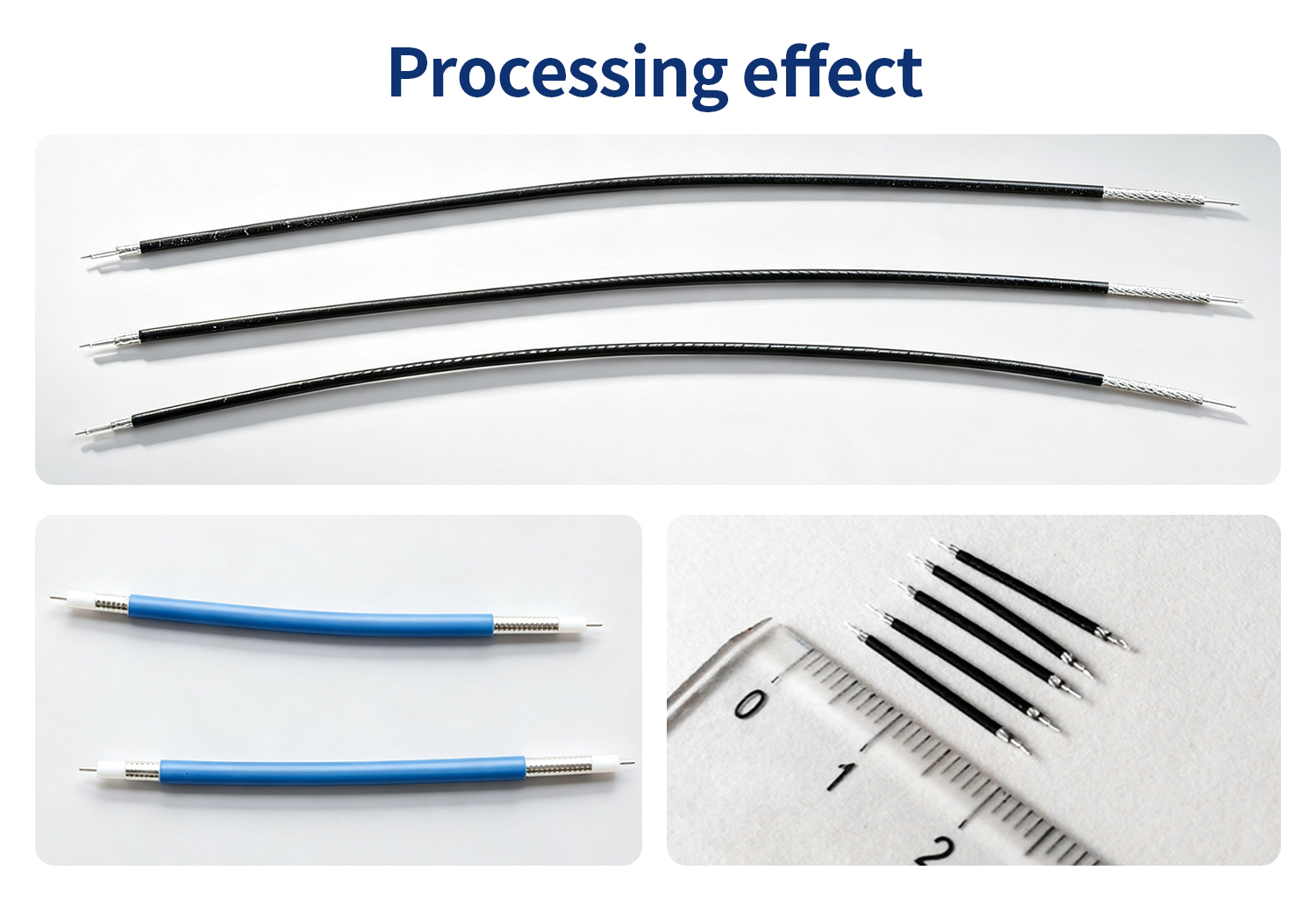

The setting accuracy for stripping and cutting depth reaches 0.01mm, meeting the fine‑stripping requirements of coaxial cables.
Multi‑layer Stripping Capacity
Supports up to 6‑layer stripping, suitable for processing coaxial cables with complex structures.

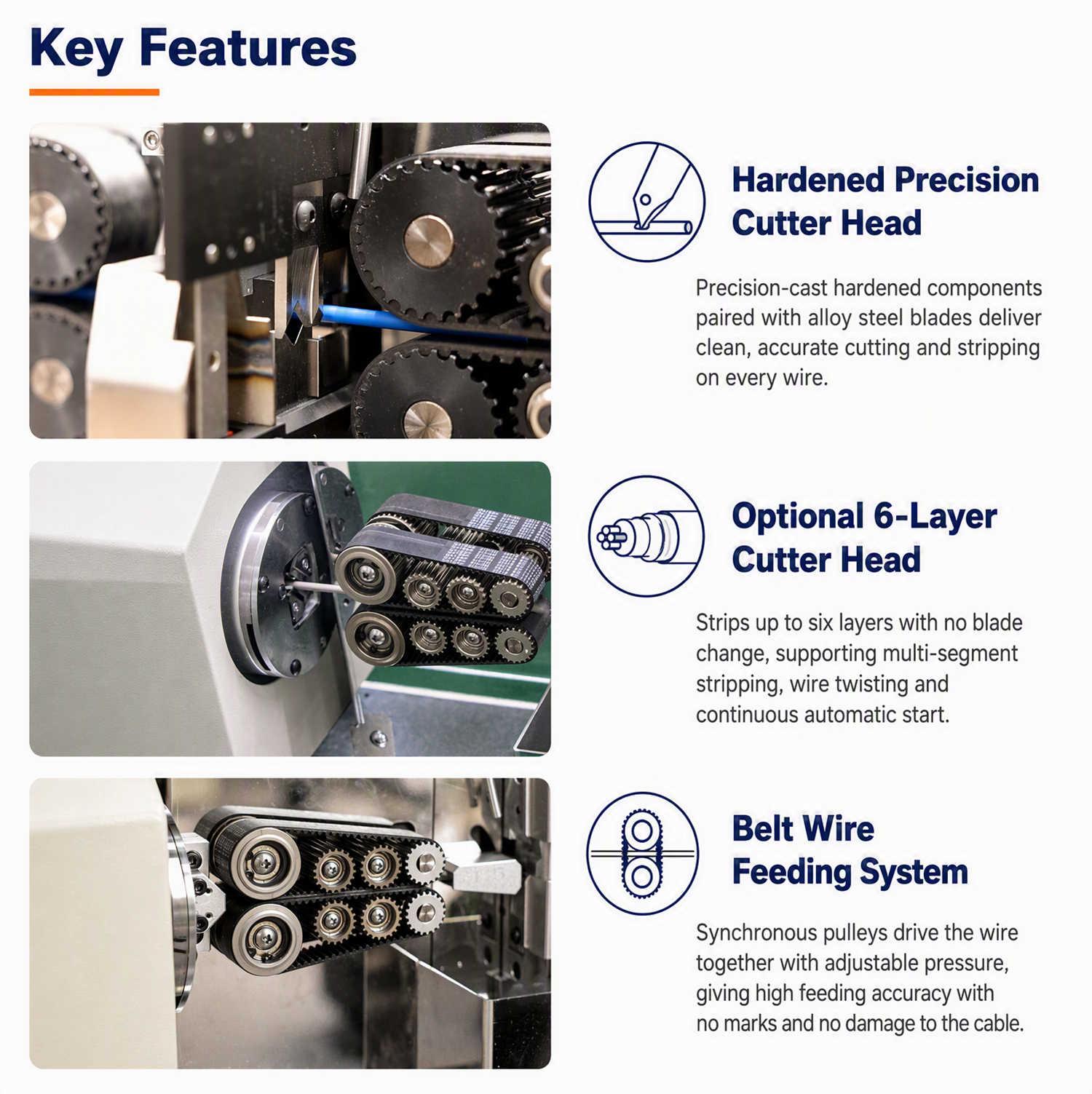

Premium Tooling Configuration
Equipped with imported tungsten steel and high‑speed steel cutters for long service life and high‑quality cutting edges.
User‑friendly Operation
Bilingual Chinese‑English touch‑screen interface; stores up to 40 sets of processing parameters for quick product change‑over.

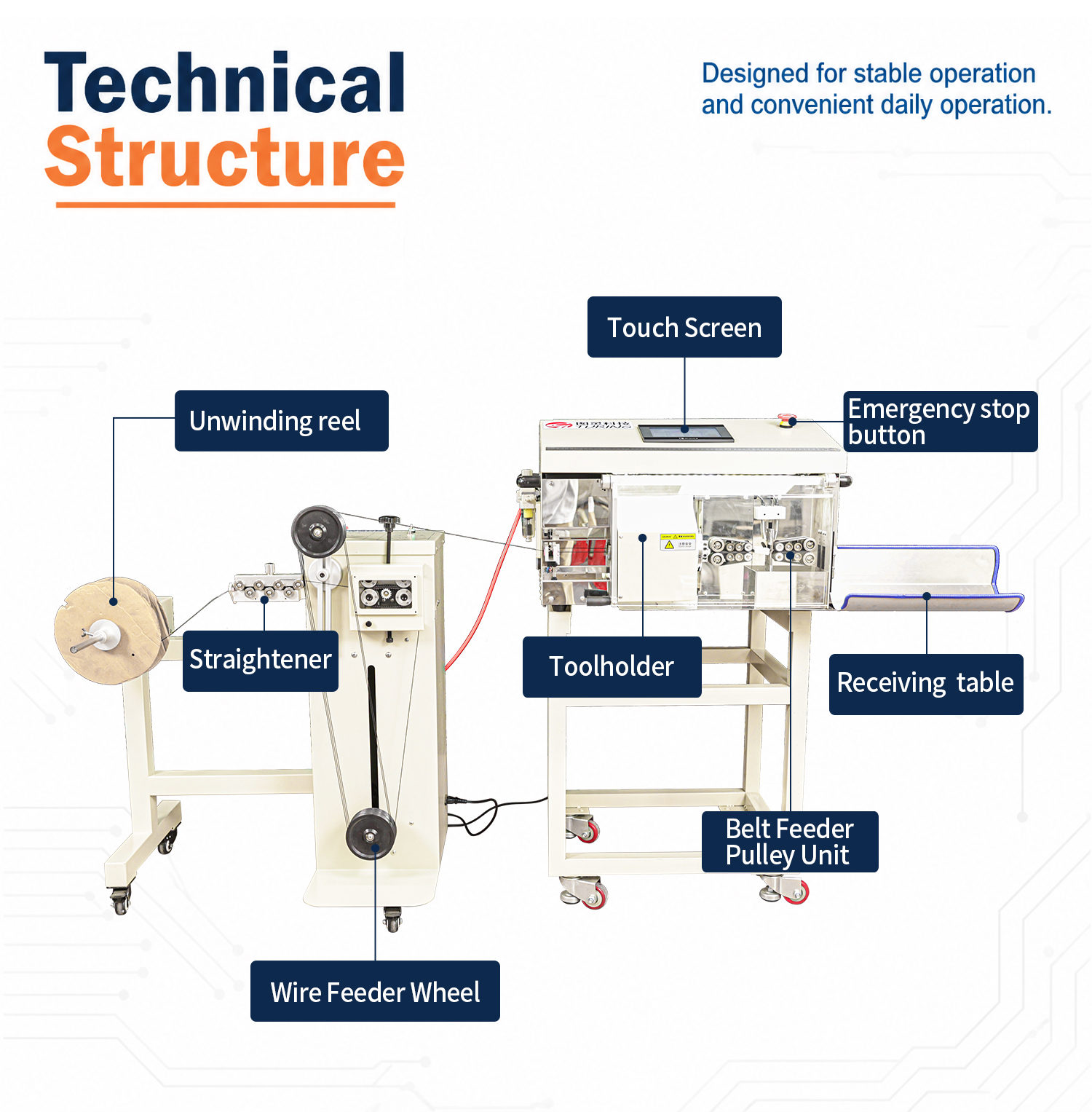

High‑efficiency Driving & Stripping Mechanism

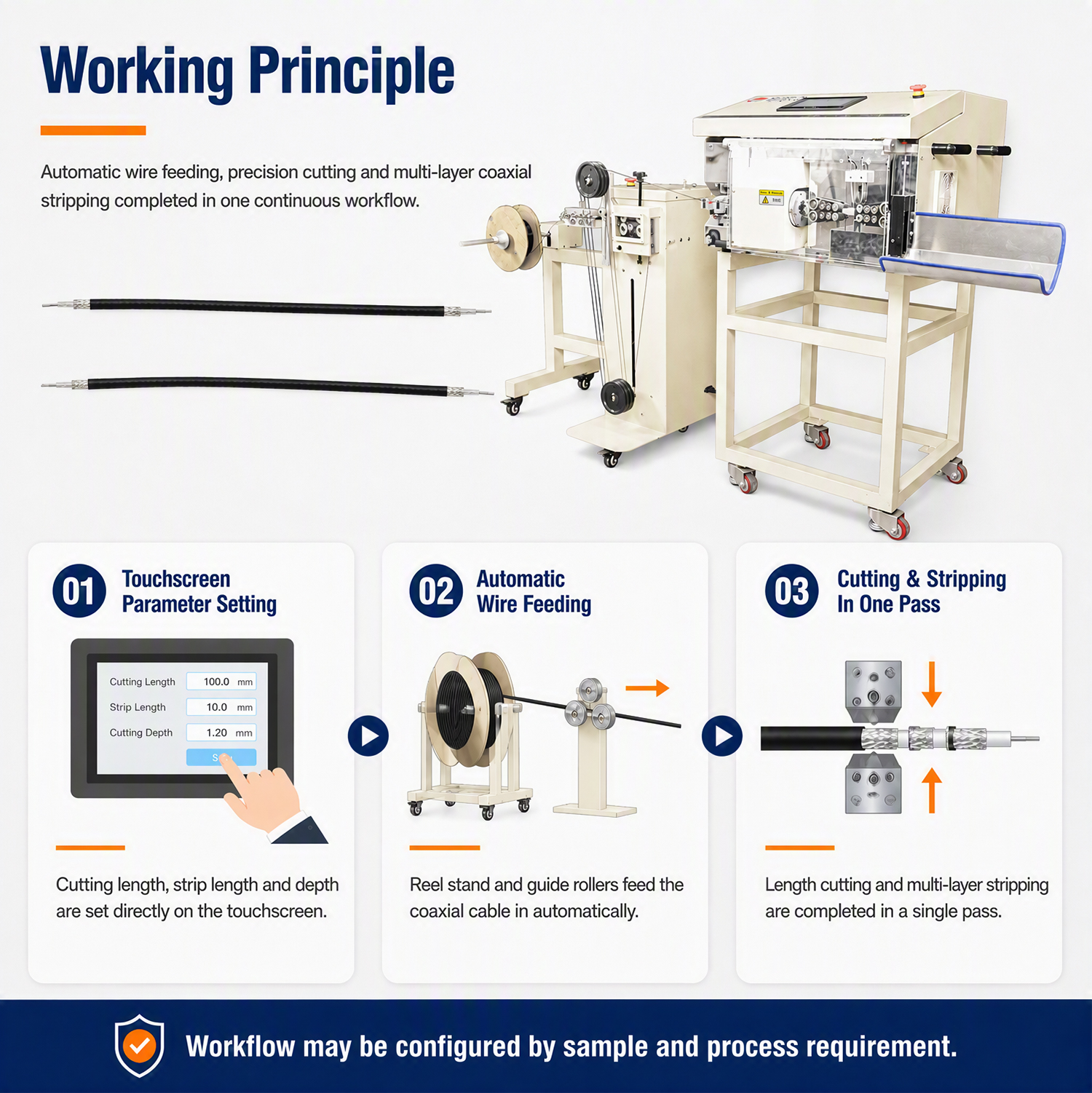

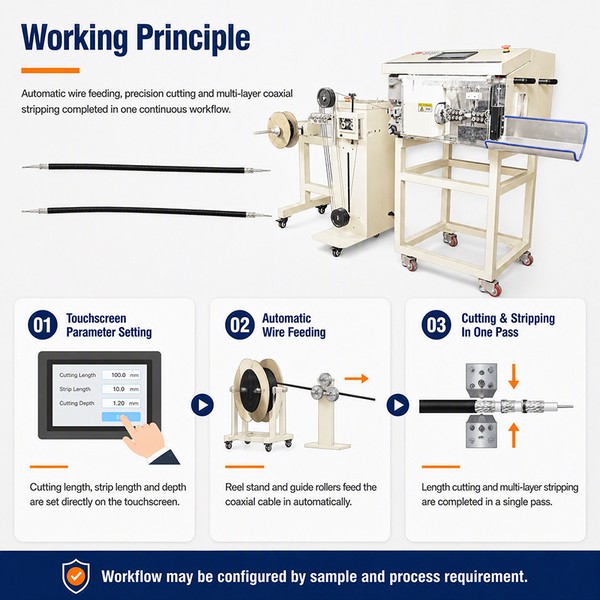

Adopts motor plus ball‑screw drive, combined with rotary cutter and fixed stripping cutter. Productivity ranges from 750 to 1300 pieces per hour.
Wide Processing Range
Fits coaxial cables with diameters from 0.64‑4.0mm. Adjustable stripping lengths: max. 200mm on the right end and max. 45mm on the left end.

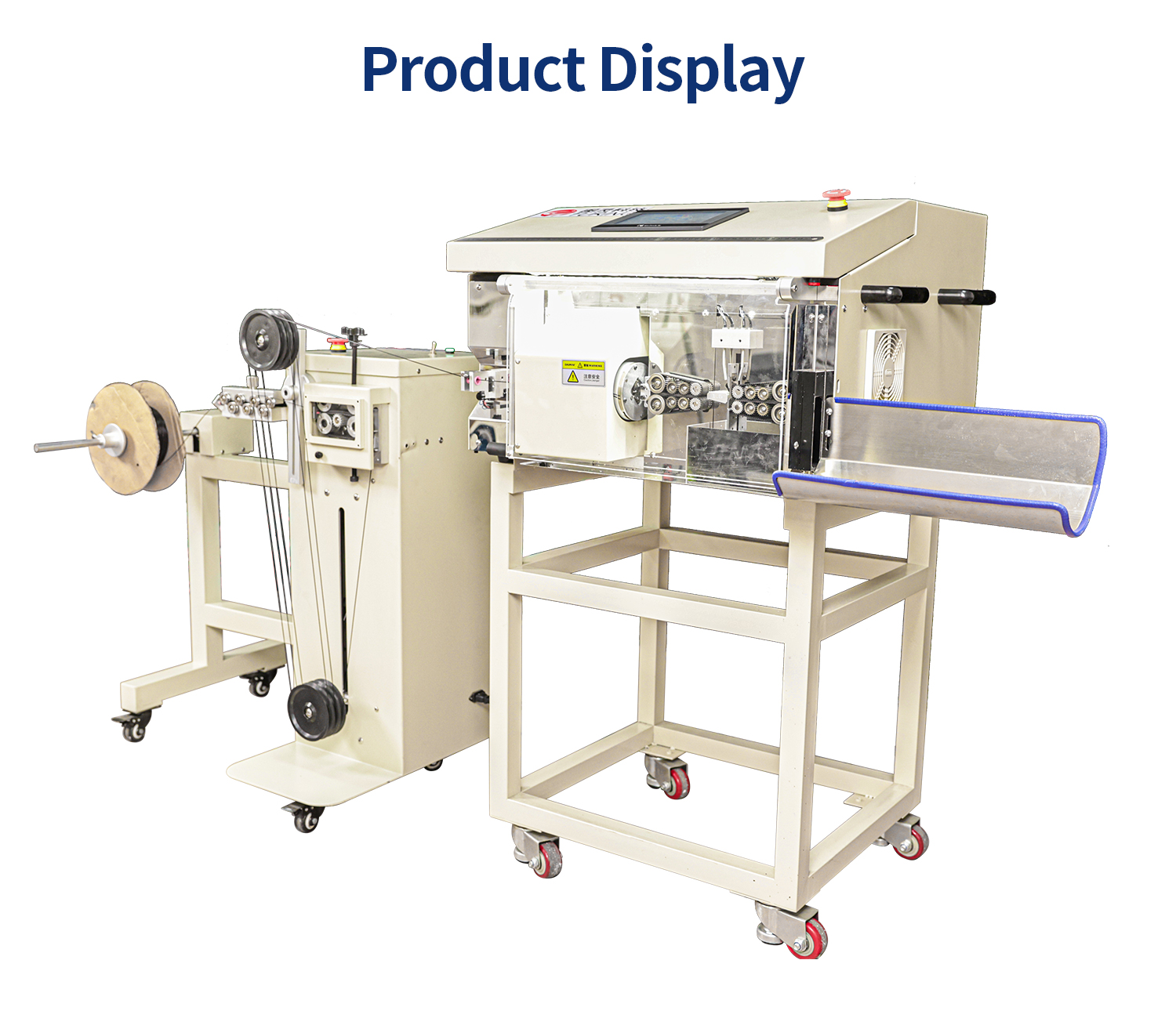

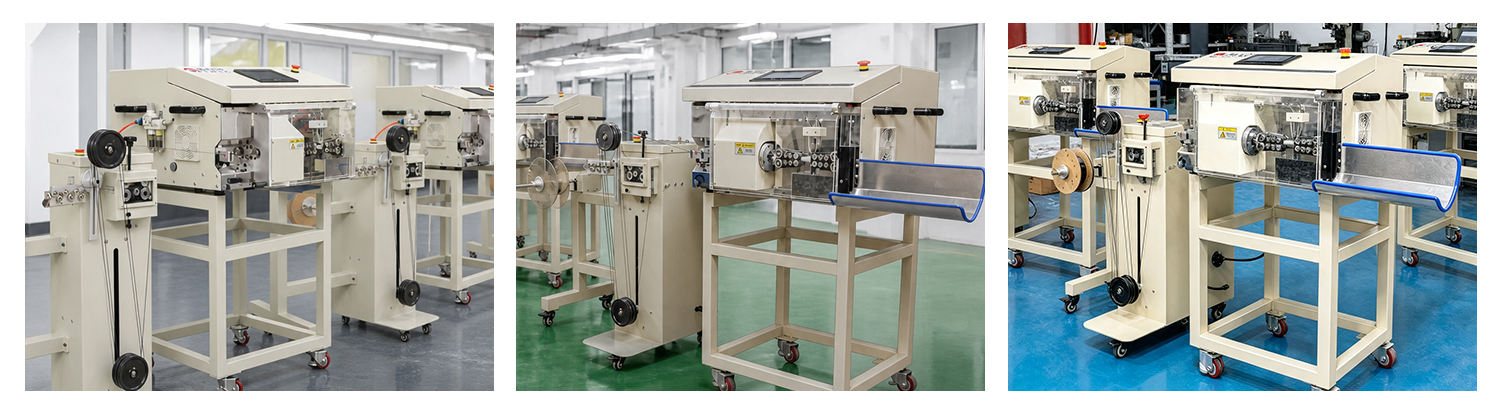

TR-9800 in Operation
Full Specifications

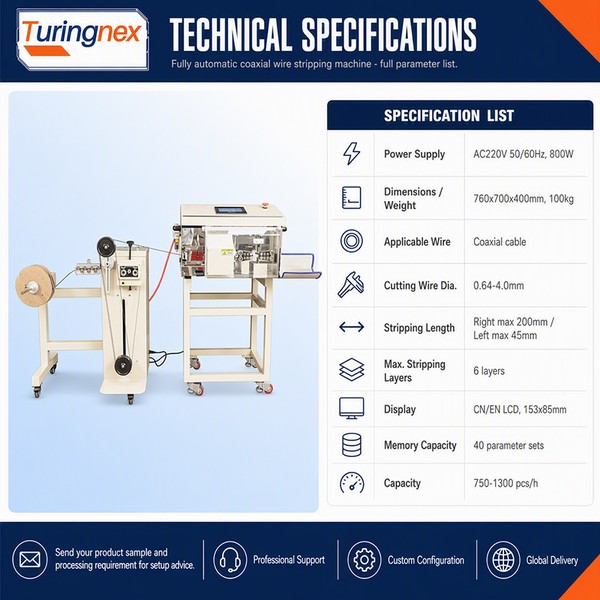

Technical Data
| Model | TR-9800 |
| Power | AC220V/50HZ, |
| Contact | Lily 008613715588365 |
| Terminal compatibility |
Ordering Information
| Certification | CE — ISO9001 factory — certificates on request |
| MOQ | 1 set |
| Price (FOB, indicative) | Quote on request |
| Lead time | Standard models in stock; customised 7–15 days |
| Payment | T/T 30% deposit + 70% before shipment |
| Warranty | Standard warranty — terms confirmed in sales contract |
| Free trial | Free crimp test with your wire & terminals |
Specifications are indicative and confirmed with your order. Custom configurations available.
Features & Details
- TR-9800 Fully Automatic Coaxial Wire Stripping Machine
- The setting accuracy for stripping and cutting depth reaches 0.01mm, meeting the fine‑stripping requirements of coaxial cables.
- Supports up to 6‑layer stripping, suitable for processing coaxial cables with complex structures.
- Equipped with imported tungsten steel and high‑speed steel cutters for long service life and high‑quality cutting edges.
- Bilingual Chinese‑English touch‑screen interface; stores up to 40 sets of processing parameters for quick product change‑over.
- Adopts motor plus ball‑screw drive, combined with rotary cutter and fixed stripping cutter. Productivity ranges from 750 to 1300 pieces per hour.
Services Around the Machine

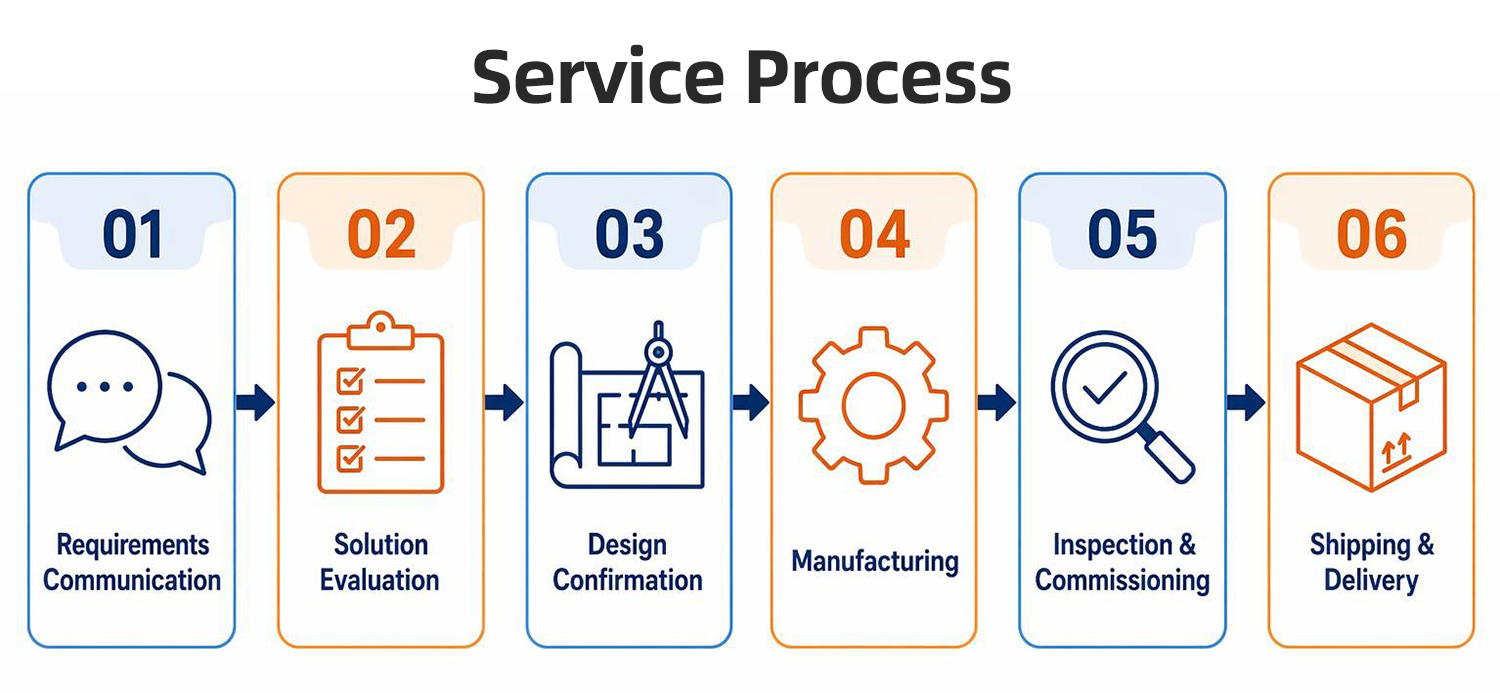

From Your Wire to a Working Machine
Machines are configured around your wire range and terminals — this is how we de-risk it before you pay.
Application Note
Which materials it handles, which lines it fits — in the context of your application.
View Application SolutionFree Sample Test
Send your wire and terminals — we run the test on our machine and return the video.
Indicative lead time: On request
Request a TestWhy Buy Direct From Turingnex

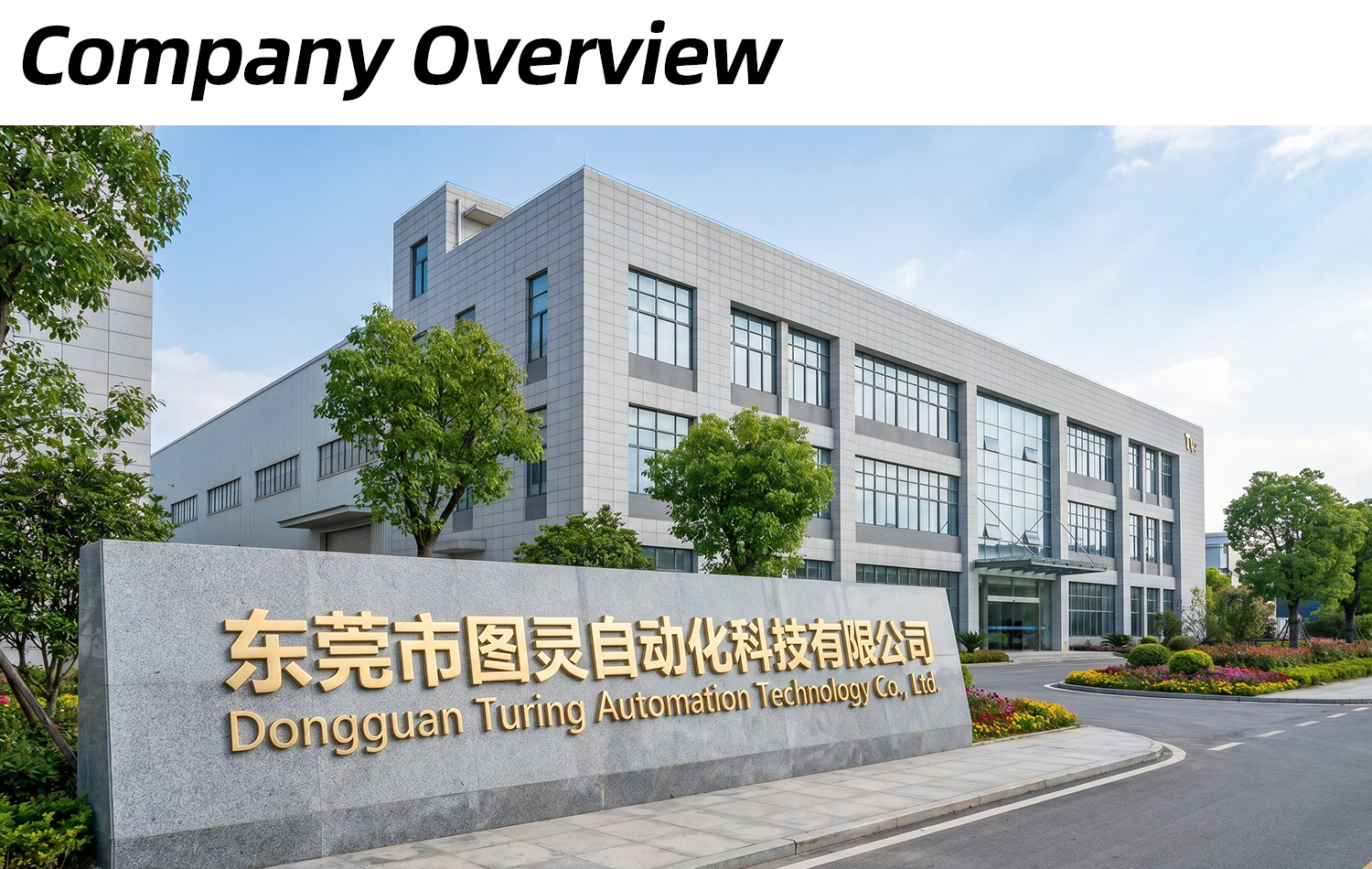

Factory Direct
One factory in Dongguan, one engineer per inquiry — 24h quotes, no middlemen.
Certified & Protected
CE certification, ISO9001 quality system, Alibaba Trade Assurance available.
Test Before You Buy
Free crimp test on your wire and terminals — quality verified before you commit.
Packing & Delivery
- Export-grade packing: wooden case / carton with foam protection
- Sea, air or express shipping — tracking provided
- QC photos & videos sent before packing
- Spare dies and consumables available for reorder
