Highlights
01
power supply
Handheld device AC 220V; gun head DC 24V
02
size
Main body: L 680 * W 660 * H 650 mm
03
weights
Equipment: 130kg; Gun head: 1kg
04
pneumatic
5 - 6Kg/cm² | Ties specifications | 2.5X80mm Straight Tail Tie for Machine Use
Machine Video
TR-889 in Operation

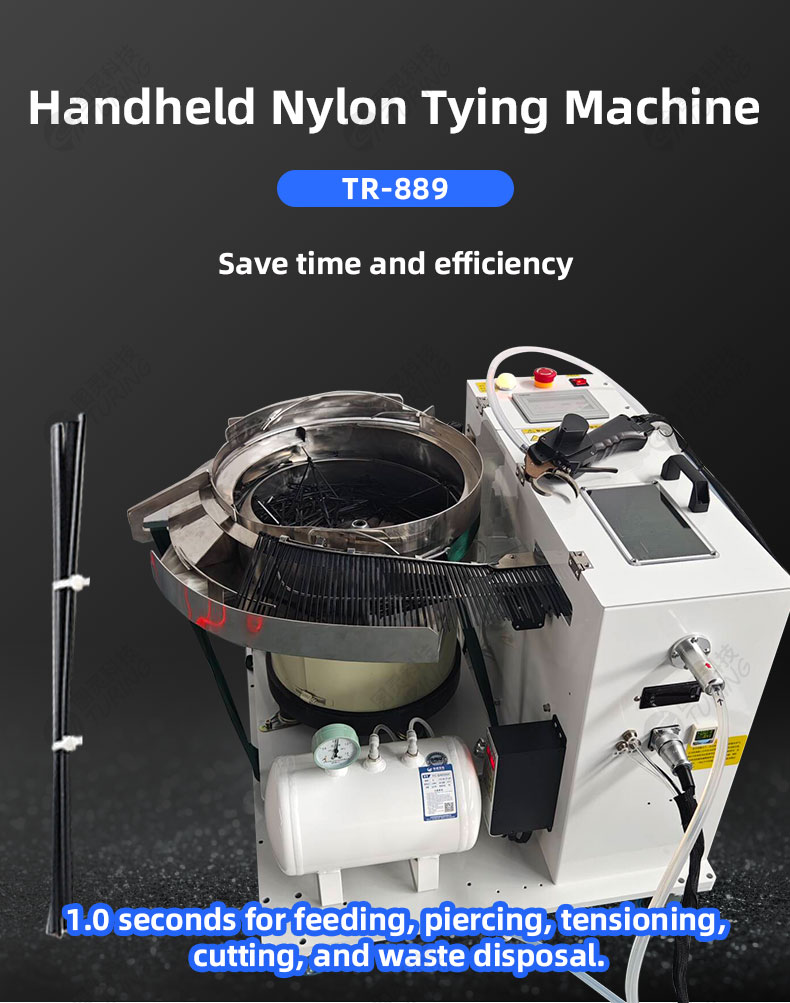

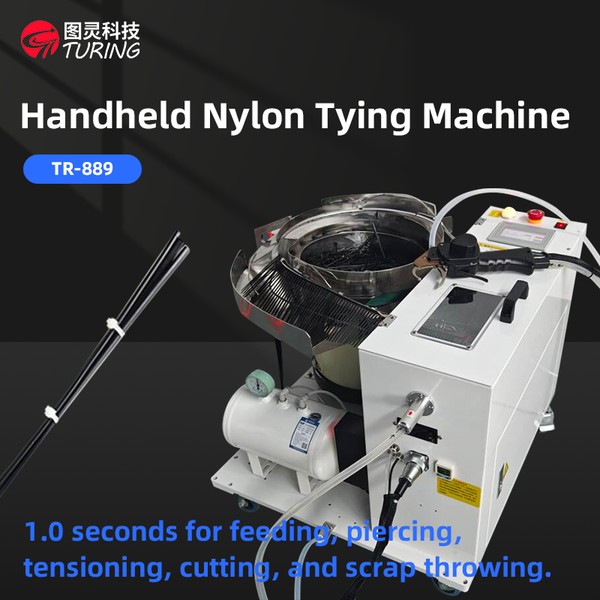

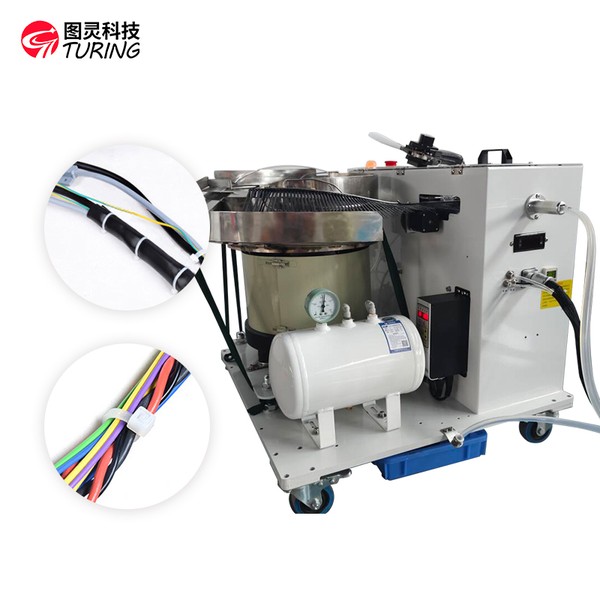

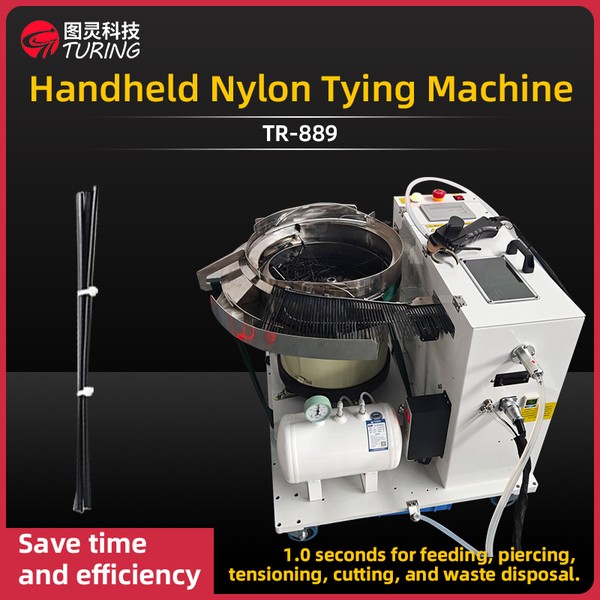

TR-889 Semi Automatic Handheld Nylon Cable Tie Machine Cable Tying Machine in operation
Full Specifications

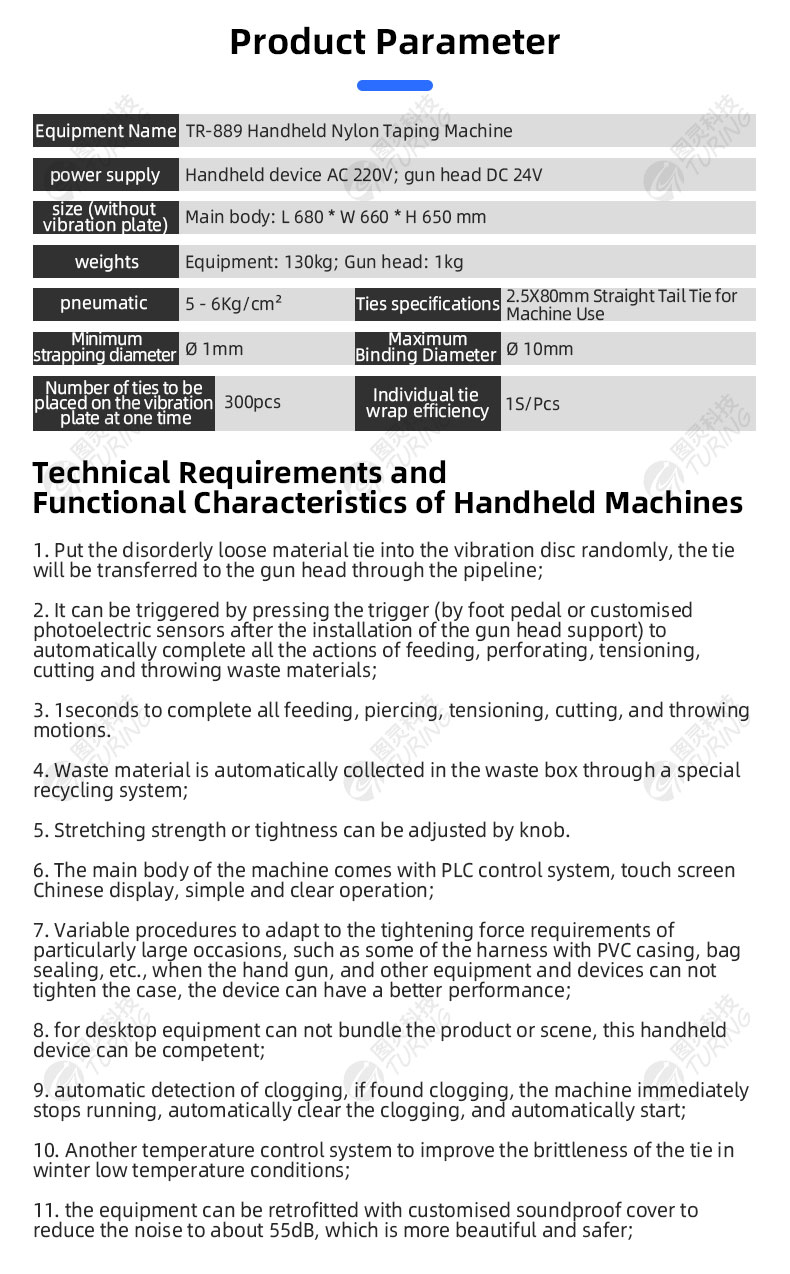

Technical Data
| Model | TR-889 |
| Power | AC220V/50HZ, |
| Application | Automatic nylon cable tie machine |
| Feature | Stable Performance |
| Warranty | 1year |
| Contact | Coco 0086-18666170785 |
| Power-supply | Handheld device AC 220V; gun head DC 24V |
| Size | Main body: L 680 * W 660 * H 650 mm |
| Weights | Equipment: 130kg; Gun head: 1kg |
| Pneumatic | 5 - 6Kg/cm² | Ties specifications | 2.5X80mm Straight Tail Tie for Machine Use |
| Min.-strapping-diameter | Ø 1mm | Max. Binding Diameter | Ø 10mm |
| Number-of-ties-to-be-placed-on-the-vibration-plate-at-one-time | 300pcs |
| Individual-tie-wrap-efficiency | 1S/Pcs |
| Terminal compatibility |
Ordering Information
| Certification | CE — ISO9001 factory — certificates on request |
| MOQ | 1 set |
| Price (FOB, indicative) | Quote on request |
| Lead time | Standard models in stock; customised 7–15 days |
| Payment | T/T 30% deposit + 70% before shipment |
| Warranty | Standard warranty — terms confirmed in sales contract |
| Free trial | Free crimp test with your wire & terminals |
Specifications are indicative and confirmed with your order. Custom configurations available.
Features & Details
- Handheld device AC 220V; gun head DC 24V
- 2.5X80mm Straight Tail Tie for Machine Use
- Number of ties to be placed on the vibration plate at one time
- Technical Requrements andFunctionalCharacteristics ofHandheld Machines

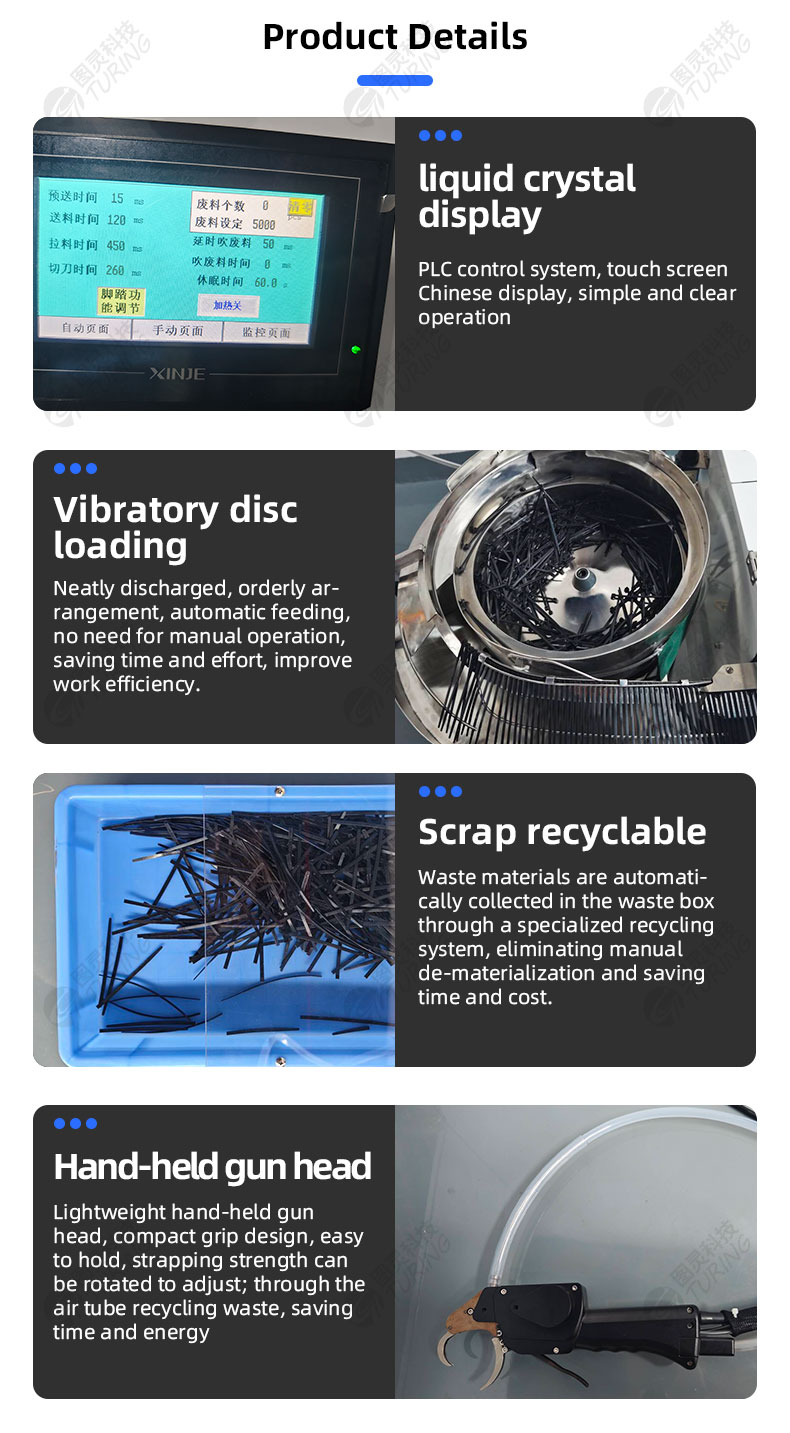

- 1. Put the disorderly loose material tie into the vibration disc randomly, the tiewill be transferred to the gun head through the pipeline;

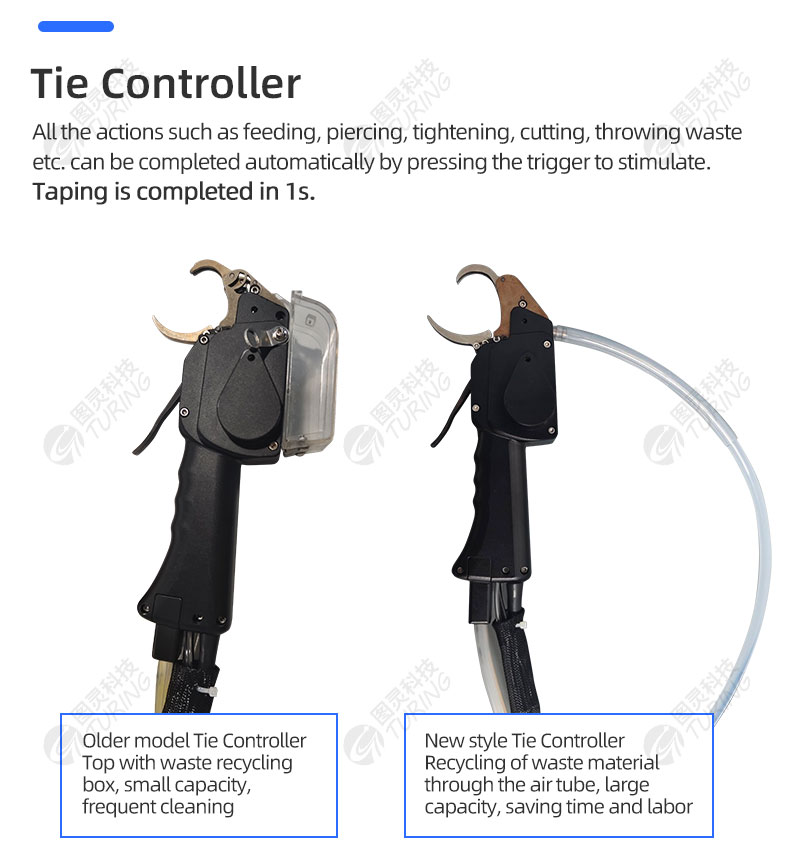

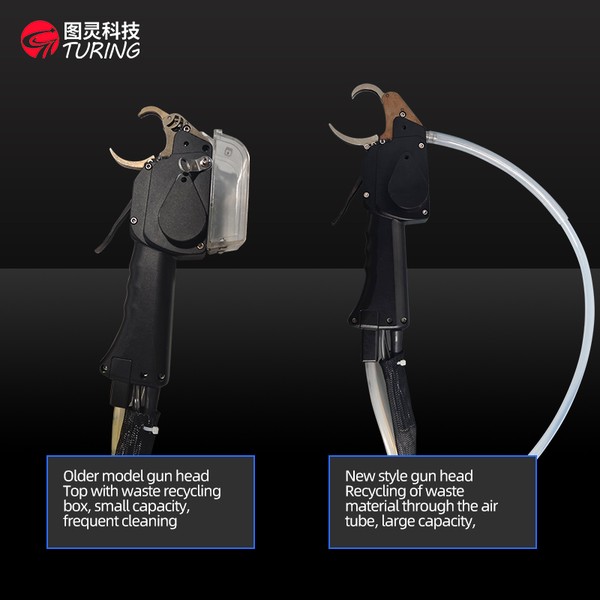

- 2.it can be triggered by pressing the trigger (by foot pedal or customisedphotoelectric sensors after the installation of the qun head support) toautomatically complete all the actions of feeding, perforating, tensioningcutting and throwing waste materials;
