Highlights
01
Categories
Stripping and Bending Machine
02
Brand
Turing
03
Model
TR-880Z
04
Power
AC220V/50HZ,
Machine Video
TR-880Z in Operation
TR-880Z Fully Automatic Double Head Wire Stripping And Bending Machine(up To 35mm²) in operation
Full Specifications

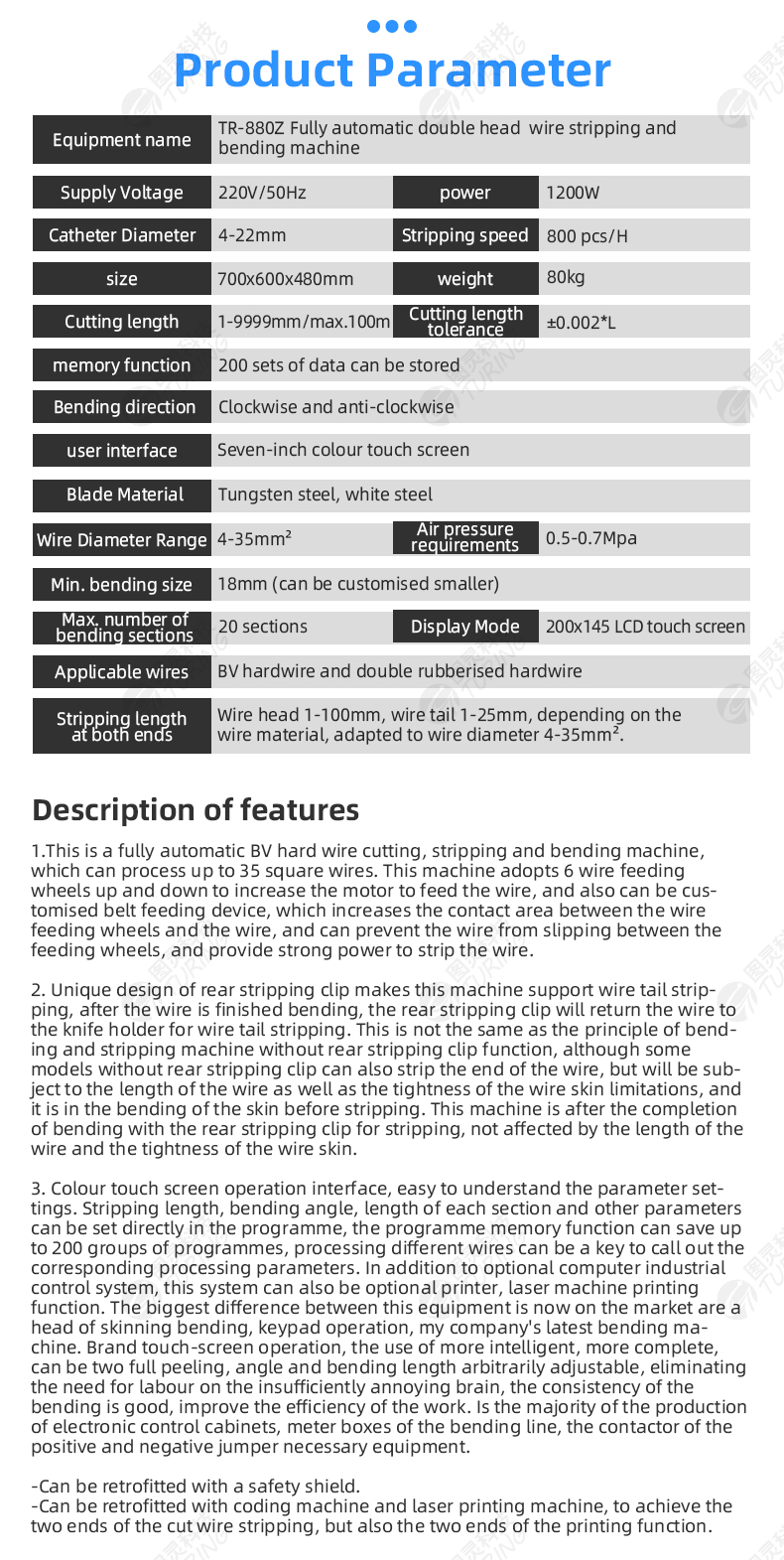

Technical Data
| Model | TR-880Z |
| Power | AC220V/50HZ, |
| Feature | Stable Performance |
| Warranty | 1year |
| Contact | Lily 0086-13715588365 |
| Terminal compatibility |
Ordering Information
| Certification | CE — ISO9001 factory — certificates on request |
| MOQ | 1 set |
| Price (FOB, indicative) | Quote on request |
| Lead time | Standard models in stock; customised 7–15 days |
| Payment | T/T 30% deposit + 70% before shipment |
| Warranty | Standard warranty — terms confirmed in sales contract |
| Free trial | Free crimp test with your wire & terminals |
Specifications are indicative and confirmed with your order. Custom configurations available.
Features & Details

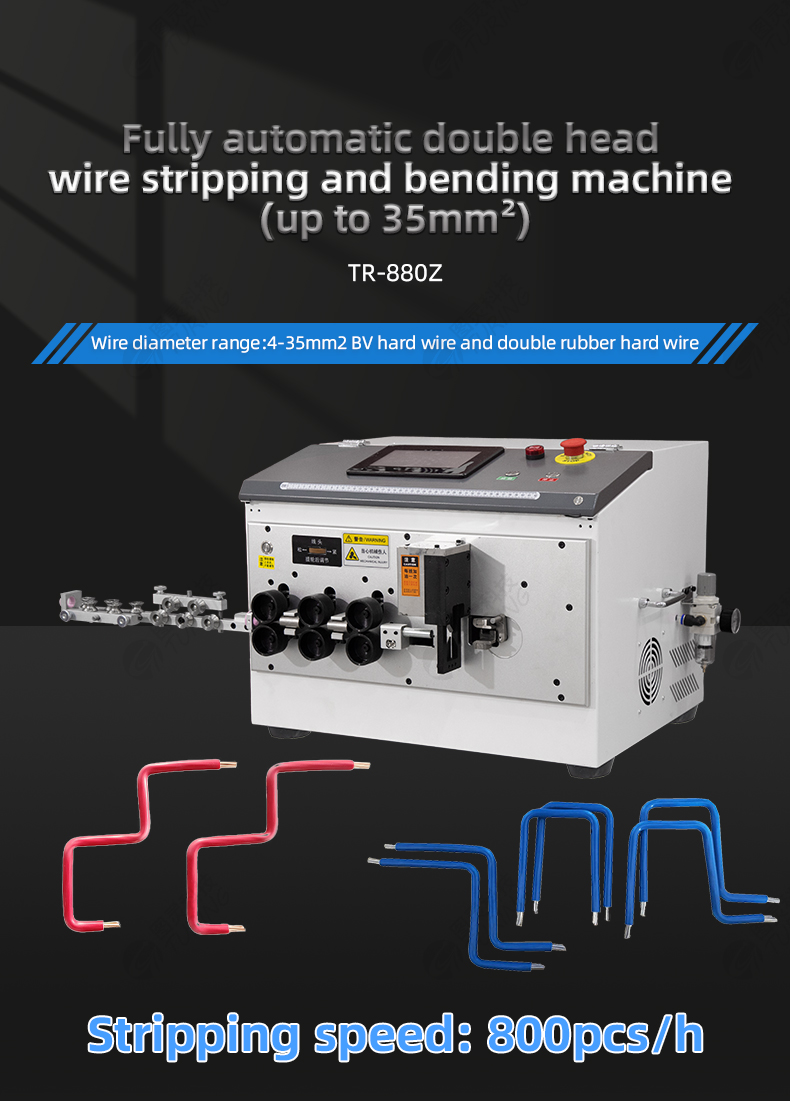

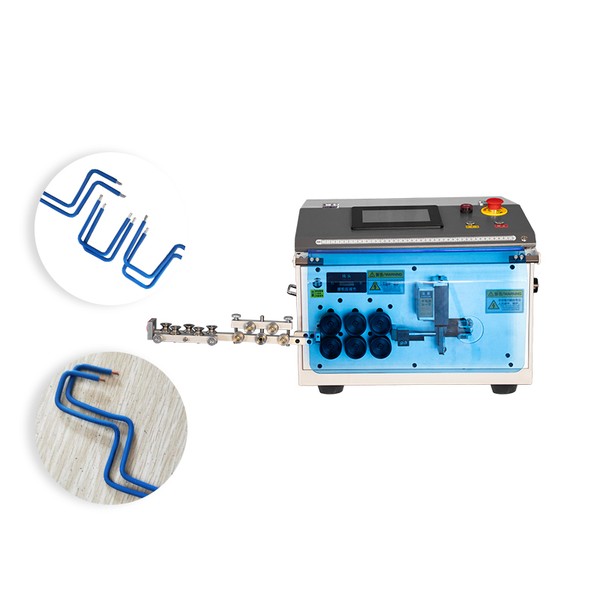

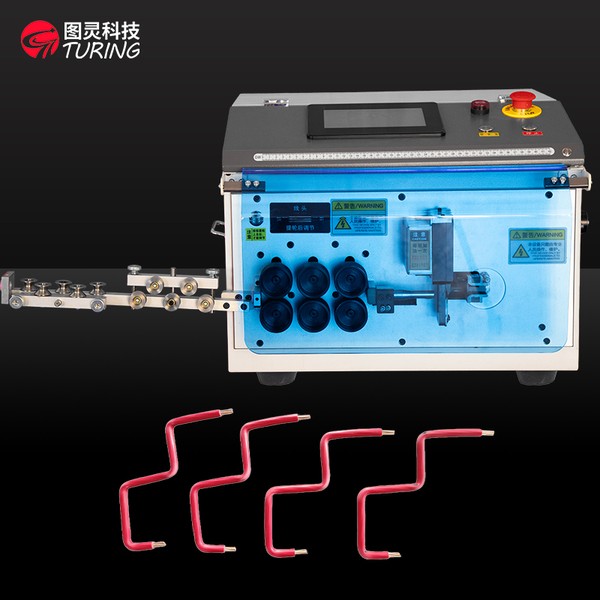

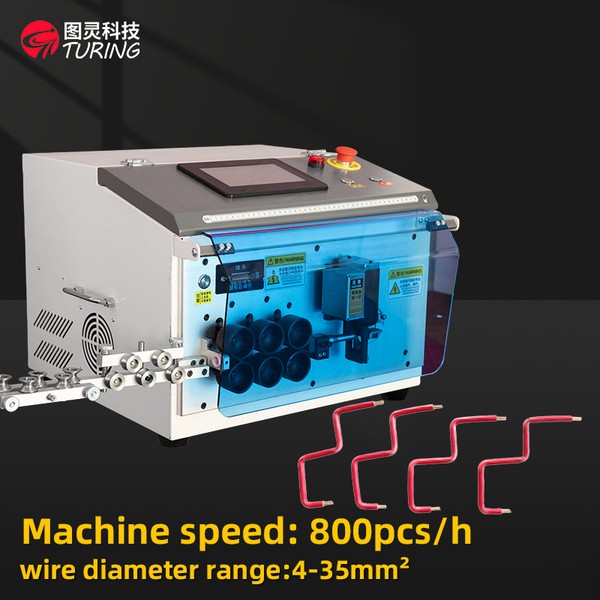

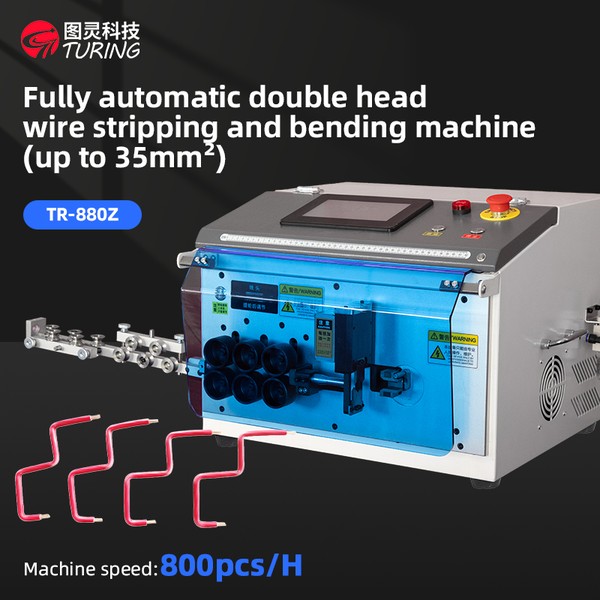

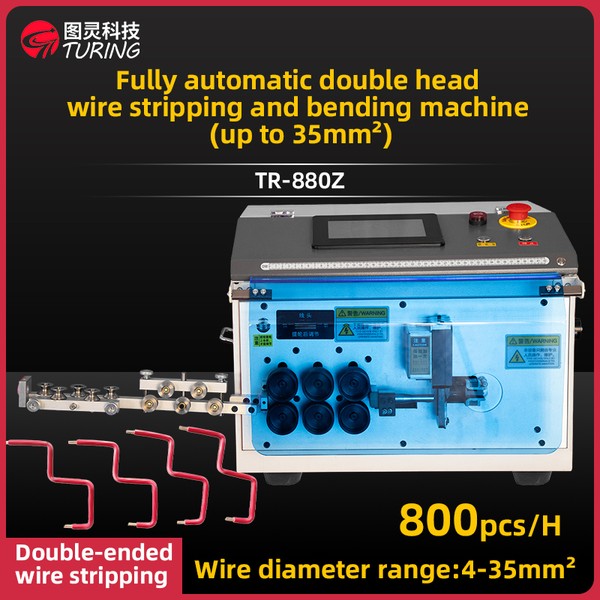

- TR-880Z Fully automatic double head wire stripping and bending machine(up to 35mm²)

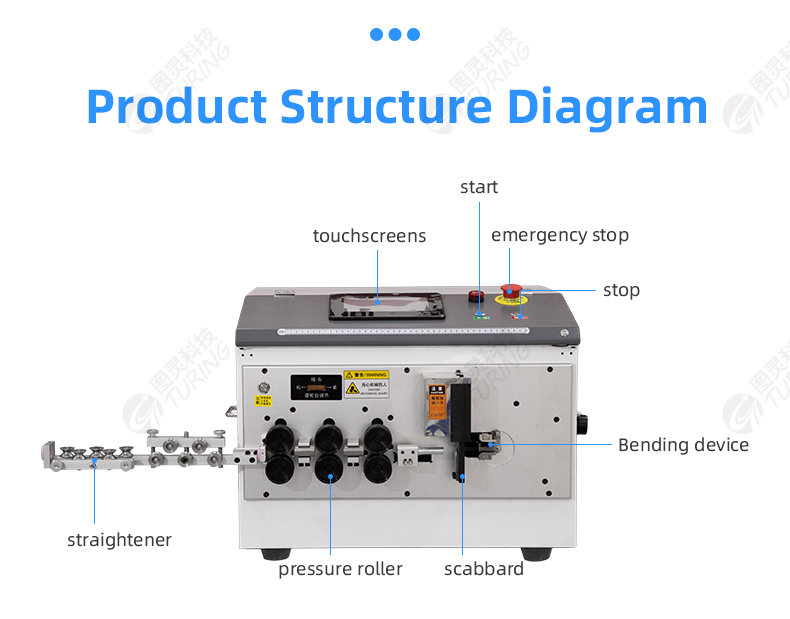

- 1.This is a fully automatic BV hard wire cutting, stripping and bending machine,which can process up to 35 square wires. This machine adopts 6 wire feedingwheels up and down to increase the motor to feed the wire, and also can be cus-tomised belt feeding device, which increases the contact area between the wirefeeding wheels and the wire, and can prevent the wire from slipping between thefeeding wheels,and provide strong power to strip the wire.
- 2. Unique design of rear stripping clip makes this machine support wire tail strip-ping, after the wire is finished bending, the rear stripping clip will return the wire tothe knife holder for wire tail stripping. This is not the same as the principle of bend-ing and stripping machine without rear stripping clip function, although somemodels without rear stripping clip can also strip the end of the wire, but will be sub-ject to the length of the wire as well as the tightness of the wire skin limitations, andit is in the bending ofthe skin before stripping. This machine is after the completionof bending with the rear stripping clip for stripping, not affected by the length of thewire and the tightness of the wire skin.

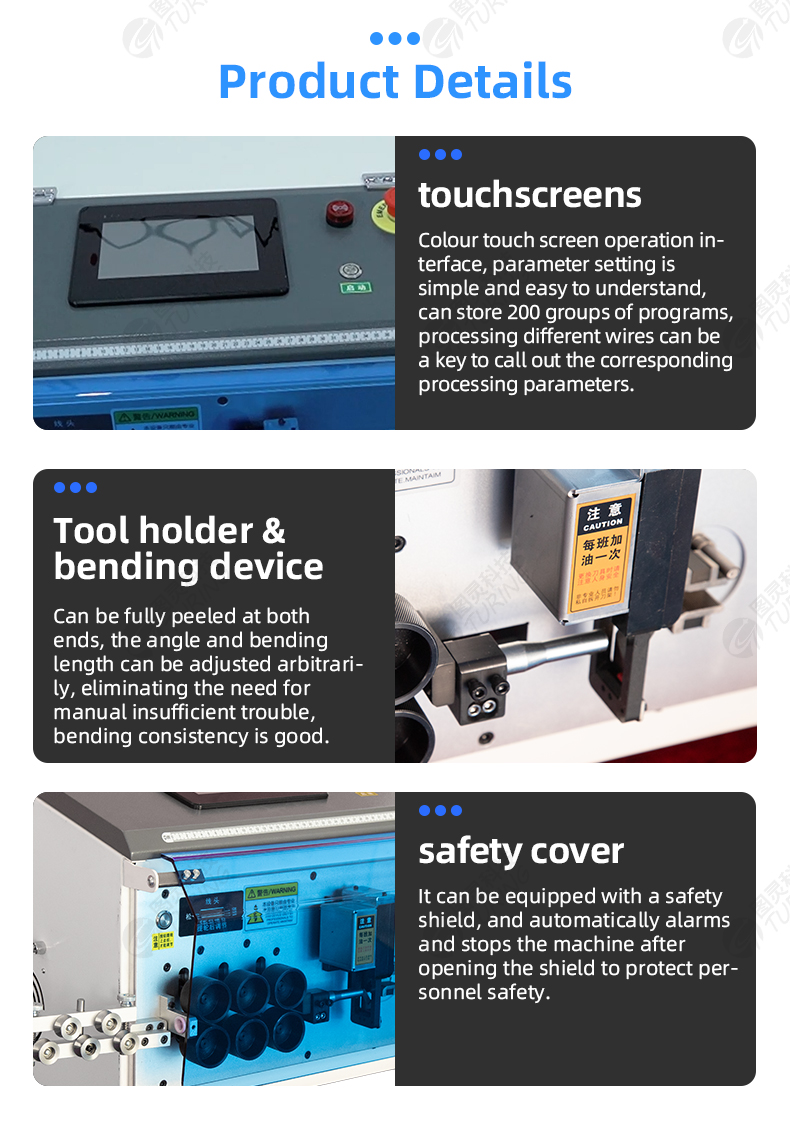

- 3. Colour touch screen operation interface, easy to understand the parameter set-tings. Stripping length, bending angle, length of each section and other parameterscan be set directly in the programme, the programme memory function can save upto 200 groups of programmes, processing different wires can be a key to call out thecorresponding processing parameters. in addition to optional computer industrialcontrol system, this system can also be optional printer, laser machine printingfunction. The biggest difference between this equipment is now on the market are ahead of skinning bending, keypad operation, my company's latest bending ma-chine. Brand touch-screen operation, the use of more intelligent, more complete,can be two full peeling, angle and bending length arbitrarily adjustable, eliminatingthe need for labour on the insufficiently annoying brain, the consistency of thebending is good, improve the efficiency of the work. ls the majority ofthe productionof electronic control cabinets, meter boxes of the bending line, the contactor of thepositive and negative jumper necessary equipment.
- -Can be retrofitted with a safety shield.-Can be retrofitted with coding machine and laser printing machine, to achieve thetwo ends of the cut wire stripping, but also the two ends of the printing function.
- vevor full automatic wire cutting stripping machine, automatic cable wire cutting stripping machine, full automatic wire cutting stripping machine, coaxial cable wire cutting stripping machine, automatic wire cutting stripping and crimping machine, used automatic wire cutting and stripping machine, automatic wire cutting stripping and crimping machine price, wire cutting and stripping machine usa, wire cutting and stripping machine manual, wire cutting and stripping machine video, wire cutting and stripping machine price china, wire cutter and stripping machine, wire cutting and stripping machine, wire cutting stripping and twisting machine, pvc wire cutting and stripping machine, wire cutting stripping bending machine, how to strip wire cover, wire cutting stripping and crimping machine, wire cutting and stripping machine manufacturer in china, automatic computer wire stripping cutting peeling machine, copper wire stripping cutting machine, wire cable cutting and stripping machine, wire stripping cutting machine hs code,
Services Around the Machine
Free sample testYour wire, our machine — video proof before you pay.
Setup guidanceRemote commissioning support included with every order.
12-month warrantyPlus spare-parts support and calibration advice.
Options & toolingCustom dies and accessories made to your terminal.
Custom Machine Program
From Your Wire to a Working Machine
Machines are configured around your wire range and terminals — this is how we de-risk it before you pay.
01Send SamplesYour wire and terminals — free evaluation, no commitment.
02Free Test + VideoWe run your sample on the machine and send the video proof.
03Config & QuoteConfiguration, options and FOB quote confirmed within 24 h.
04Build & Run-in TestEvery machine is built and run-in tested 100% before packing.
05QC Video & ShipFinal QC video before packing — sea, air or express dispatch.
Application Note
Which materials it handles, which lines it fits — in the context of your application.
View Application SolutionFree Sample Test
Send your wire and terminals — we run the test on our machine and return the video.
Indicative lead time: On request
Request a TestWhy Buy Direct From Turingnex
Applied Industries
20,000㎡Factory area, Dongguan
10,000+Machines installed worldwide
50+Export countries
98%On-time delivery
Factory Direct
One factory in Dongguan, one engineer per inquiry — 24h quotes, no middlemen.
Certified & Protected
CE certification, ISO9001 quality system, Alibaba Trade Assurance available.
Test Before You Buy
Free crimp test on your wire and terminals — quality verified before you commit.
Packing & Delivery
- Export-grade packing: wooden case / carton with foam protection
- Sea, air or express shipping — tracking provided
- QC photos & videos sent before packing
- Spare dies and consumables available for reorder
Sea / air / express options Tracking after dispatch
TR-880Z — Purchasing FAQ
MOQ is 1 machine for standard models — you can trial a single unit on one line before scaling. Custom dies are ordered by piece.
Common standard models are in stock and can ship right away; customised (non-standard) machines are built to order in 7–15 days. Dies and lead time are confirmed in the quotation.
Standard terms are T/T — 30% deposit to start production and 70% balance before shipment. L/C and Alibaba Trade Assurance are also accepted.
Our factory holds CE certification and ISO9001 quality management, and orders can be protected by Alibaba Trade Assurance. Certificates are available on request.
