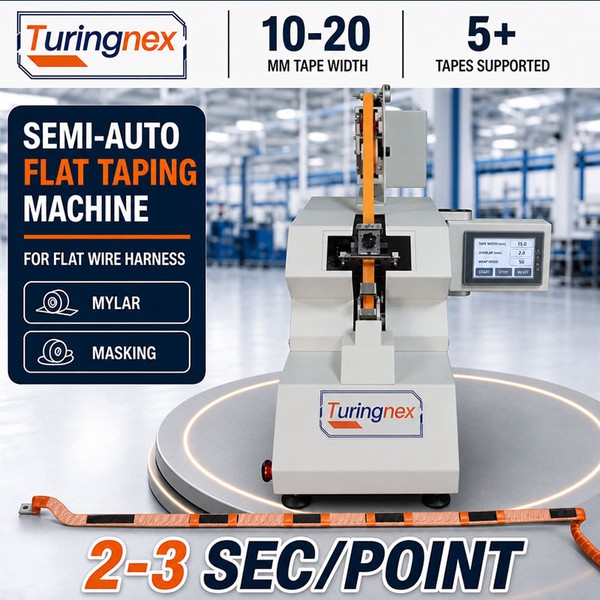

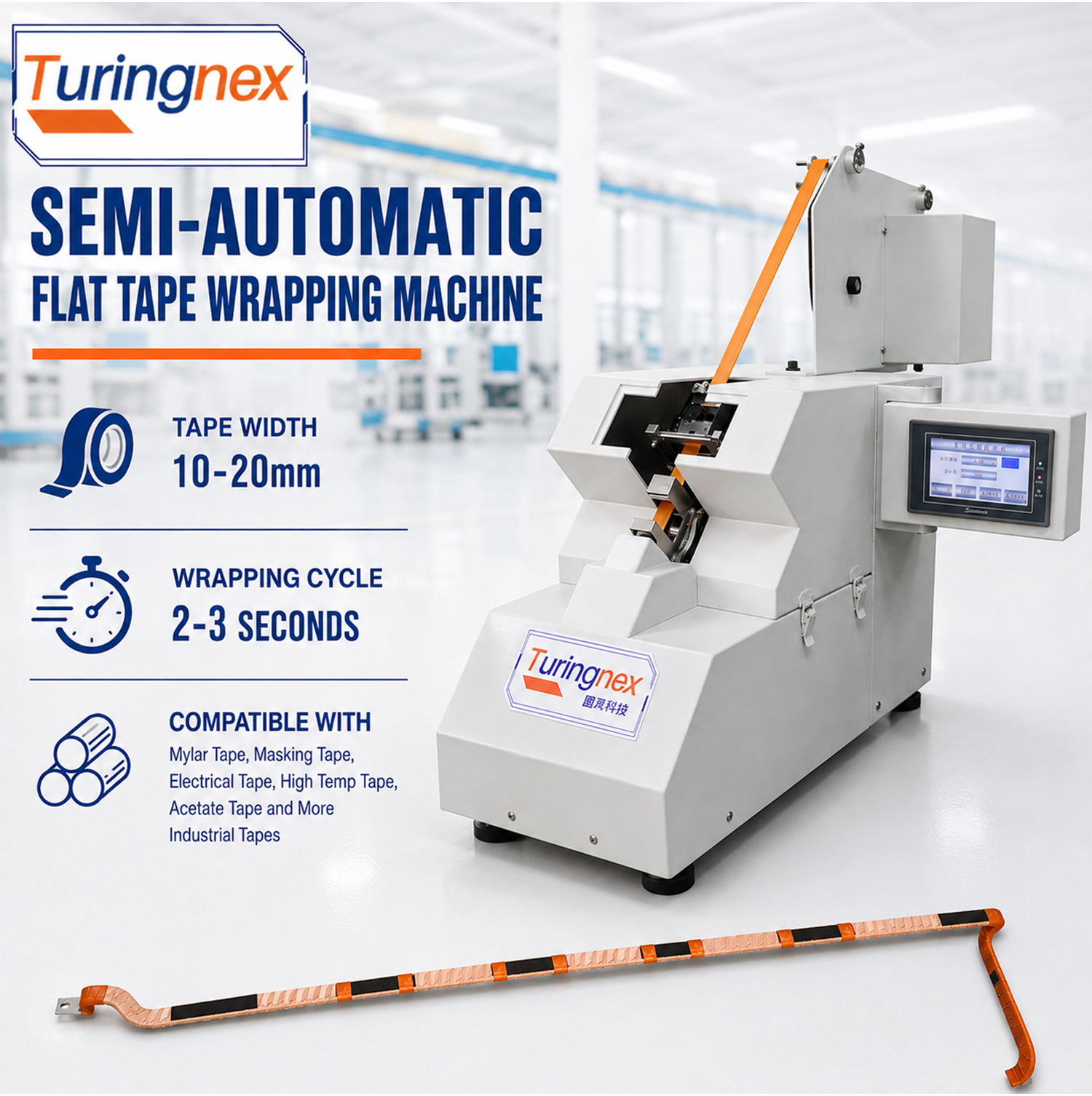

TR-60W20 Semi-automatic Flat Tape Wrapping Machine

Name: TR-60W20 Semi-automatic Flat Tape Wrapping Machine
Brand: Turingnex
SKU: TR-60W20
Availability: InStock

TR-60W20 Semi-automatic Flat Tape Wrapping Machine: Power 220V 450W; application Single Point Tape Wrapping Machine; feature Stable Performance.

Request Quotation Watch Video Downloads

Quote on requestFOB · MOQ 1 set · final price confirmed at quotation

Power: 220V 450WApplication: Single Point Tape Wrapping MachineFeature: Stable PerformanceFunction: Automatic Tape Winding MachineEquipment-name: TR-60W20 Semi-Automatic Spot Taping MachineSize-weight: 77x35x62cm, approx. 30kg

Taping cycle: 2‑3 seconds. Automatic spot‑taping replaces manual wrapping and greatly improves wire‑harness processing efficiency.

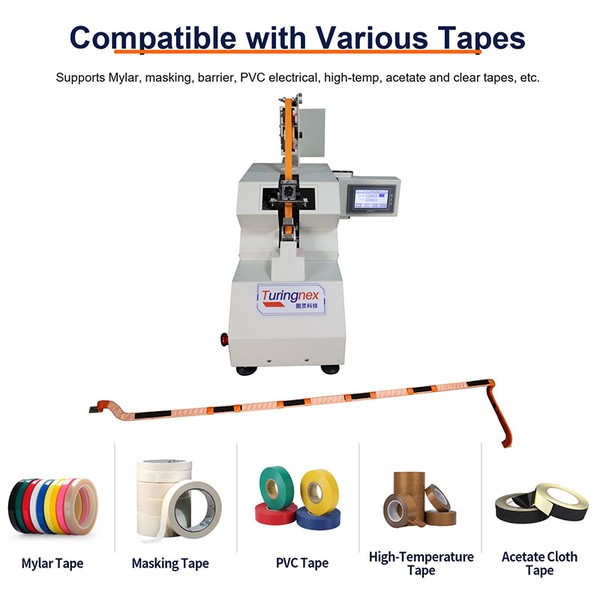

Works with Mylar tape, masking tape, electrical insulation tape, high‑temperature tape, acetate cloth tape and other industrial tapes to meet diverse process requirements.
Compatible with tape width: 10‑20 mm, workpiece diameter: 5‑20 mm, cut‑tape length: 30‑95 mm. Custom‑made modules are available upon request.

CE CertifiedFactory Direct Price12-Month Warranty24h Quote ResponseTested Before ShipmentFree Sample Test Video

10,000+ Machines installed worldwide50+ Export countries

Highlights

01

High‑Efficiency Spot‑Taping Operation

Taping cycle: 2‑3 seconds. Automatic spot‑taping replaces manual wrapping and greatly improves wire‑harness processing efficiency.

02

Wide Compatibility for Multiple‑Material Tapes

Works with Mylar tape, masking tape, electrical insulation tape, high‑temperature tape, acetate cloth tape and other industrial tapes to meet diverse process requirements.

03

Broad Application Coverage

Compatible with tape width: 10‑20 mm, workpiece diameter: 5‑20 mm, cut‑tape length: 30‑95 mm. Custom‑made modules are available upon request.

04

Dual‑Start Modes for Flexible Operation

Equipped with both foot‑pedal switch and fiber‑optic sensor trigger modes, adapting to different operator habits.

05

Fast & Convenient Tape Replacement

Splice the end of the new tape to the leftover tape directly. No complicated disassembly required, minimizing downtime.

06

Durable‑Built & Easy‑to‑Maintain

Closed‑loop motor drive. Wearing parts (blades, paper rollers, elastic belts) can be replaced easily. Compact desktop design, approx. 30kg, saves workshop floor space.

Machine Video

TR-60W20 in Operation

TR-60W20 Semi-automatic Flat Tape Wrapping Machine in operation

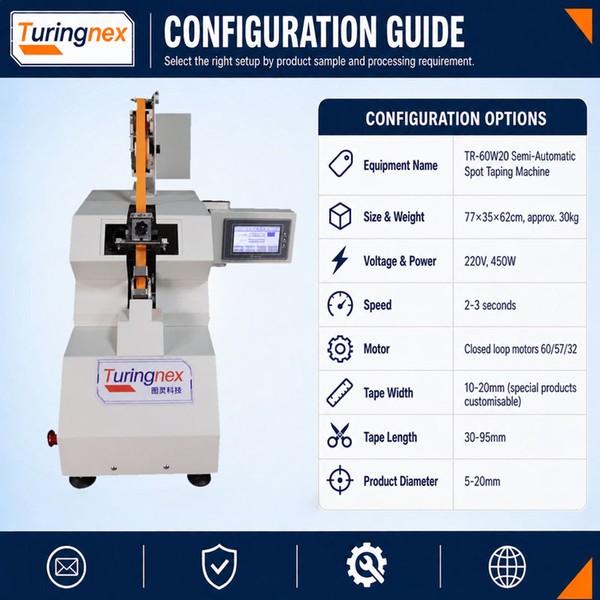

Full Specifications

Technical Data

Model	TR-60W20
Power	220V 450W
Application	Single Point Tape Wrapping Machine
Feature	Stable Performance
Function	Automatic Tape Winding Machine
Equipment-name	TR-60W20 Semi-Automatic Spot Taping Machine
Size-weight	77x35x62cm, approx. 30kg
Voltage-power	220V 450W
Speed	2-3 seconds
Motor	Closed loop motors 60/57/32
Tape-width	10mm-20mm (special products need to be customised)
Tape-length	30-95mm
Product-diameter	5mm-20mm
Tape-change-method	Adhesion of old and new tapes to each other
Functionality	Automatic Spot Wrap Tape
Wear-parts-of-this-machine	Paper Cutting Scissors, Paper Rolling Wheels, Elastic Bands
Type-of-adhesive-tape	Mala tape, beauty pattern tape, retaining wall tape, electrician's tape, high temperature tape, acetate tape, transparent tape, etc.
Terminal compatibility

Ordering Information

Certification	CE — ISO9001 factory — certificates on request
MOQ	1 set
Price (FOB, indicative)	Quote on request
Lead time	Standard models in stock; customised 7–15 days
Payment	T/T 30% deposit + 70% before shipment
Warranty	Standard warranty — terms confirmed in sales contract
Free trial	Free crimp test with your wire & terminals

Specifications are indicative and confirmed with your order. Custom configurations available.

Features & Details

Taping cycle: 2‑3 seconds. Automatic spot‑taping replaces manual wrapping and greatly improves wire‑harness processing efficiency.
Works with Mylar tape, masking tape, electrical insulation tape, high‑temperature tape, acetate cloth tape and other industrial tapes to meet diverse process requirements.
Compatible with tape width: 10‑20 mm, workpiece diameter: 5‑20 mm, cut‑tape length: 30‑95 mm. Custom‑made modules are available upon request.
Splice the end of the new tape to the leftover tape directly. No complicated disassembly required, minimizing downtime.
Closed‑loop motor drive. Wearing parts (blades, paper rollers, elastic belts) can be replaced easily. Compact desktop design, approx. 30kg, saves workshop floor space.
TR-60W20 Semi-Automatic Spot Taping Machine

TR-60W20 Semi-automatic Flat Tape Wrapping Machine — detail 1

TR-60W20 Semi-automatic Flat Tape Wrapping Machine — detail 2

TR-60W20 Semi-automatic Flat Tape Wrapping Machine — detail 3

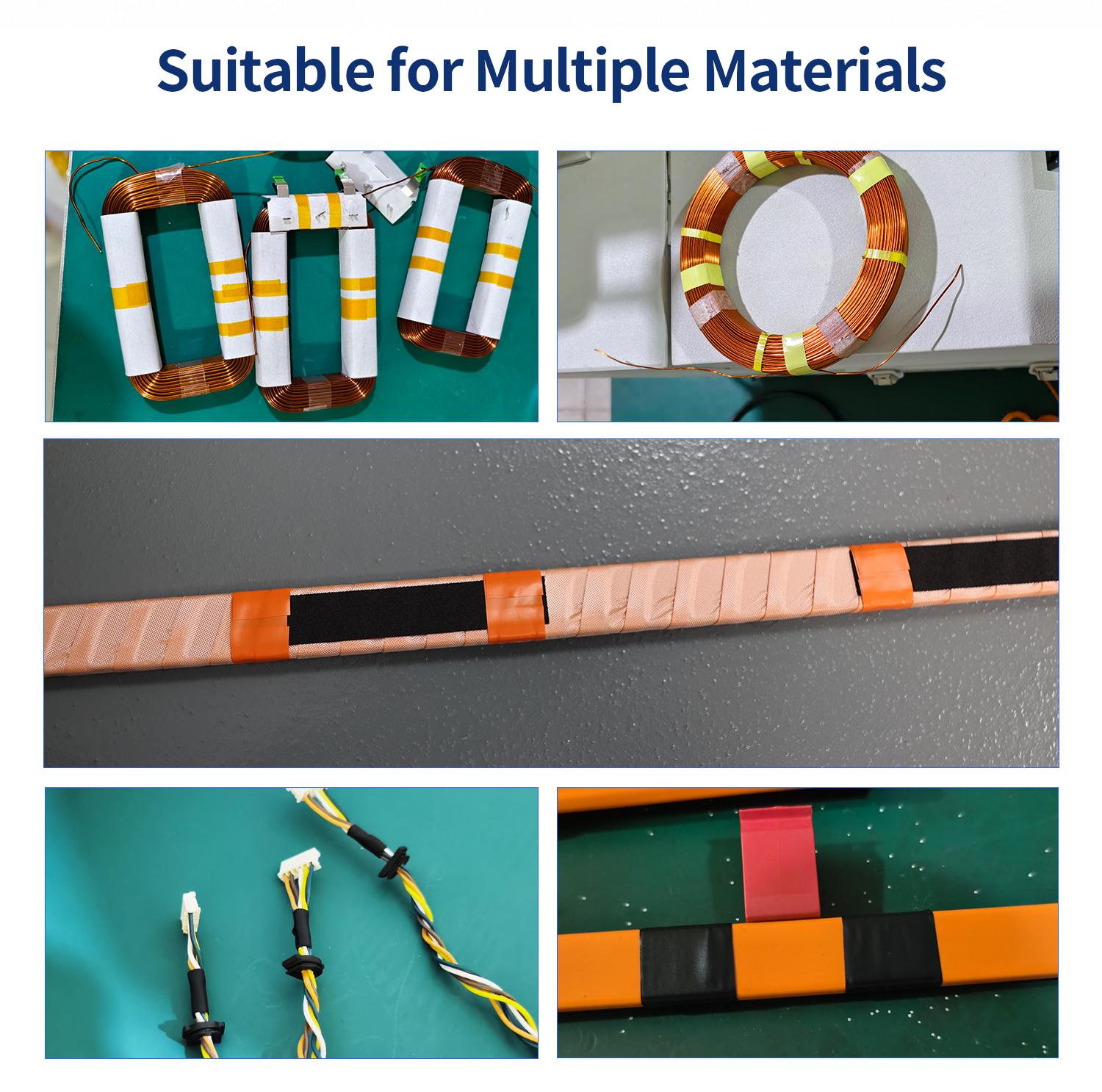

TR-60W20 Semi-automatic Flat Tape Wrapping Machine — detail 4

TR-60W20 Semi-automatic Flat Tape Wrapping Machine — detail 5

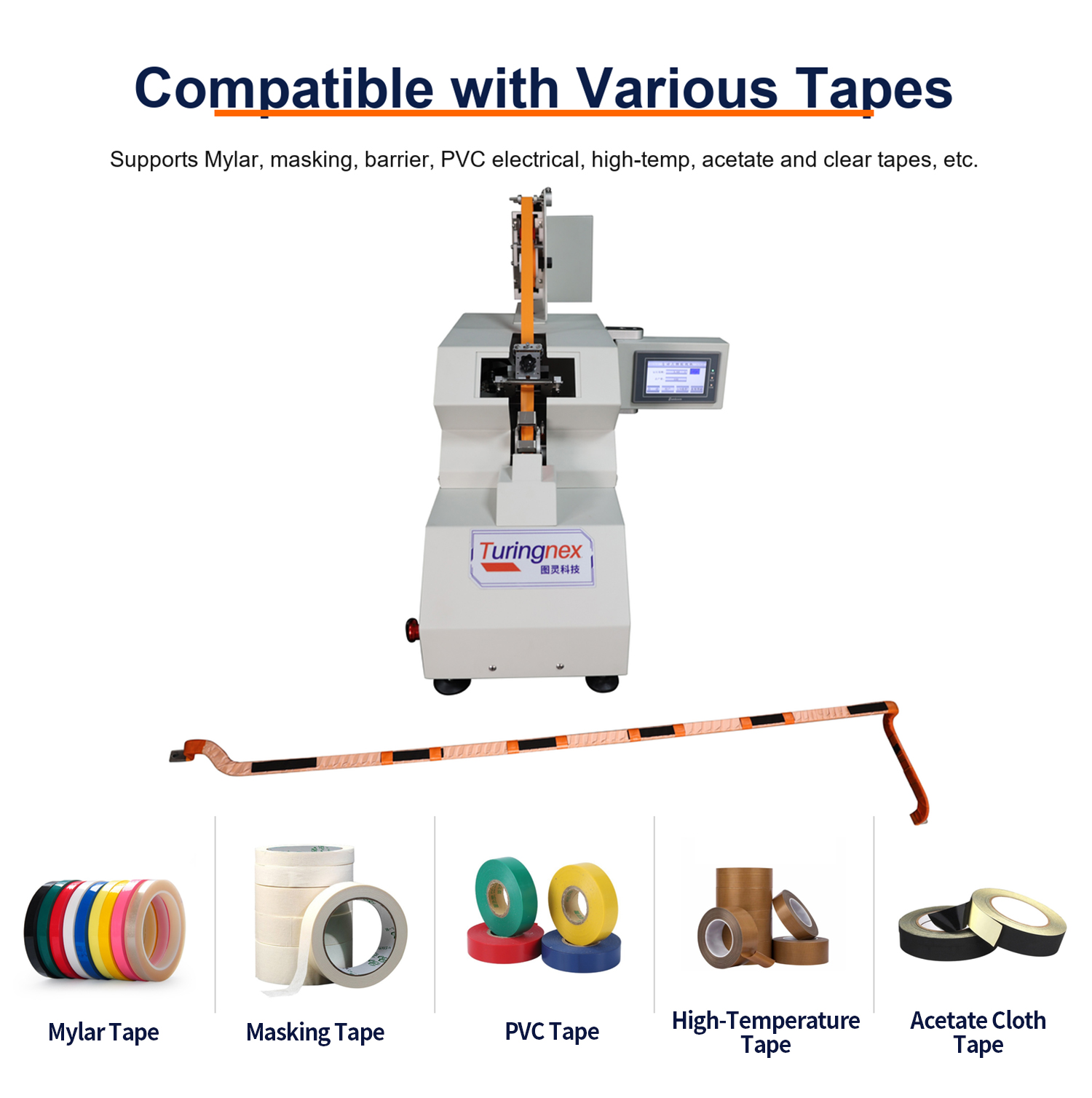

TR-60W20 Semi-automatic Flat Tape Wrapping Machine — detail 6

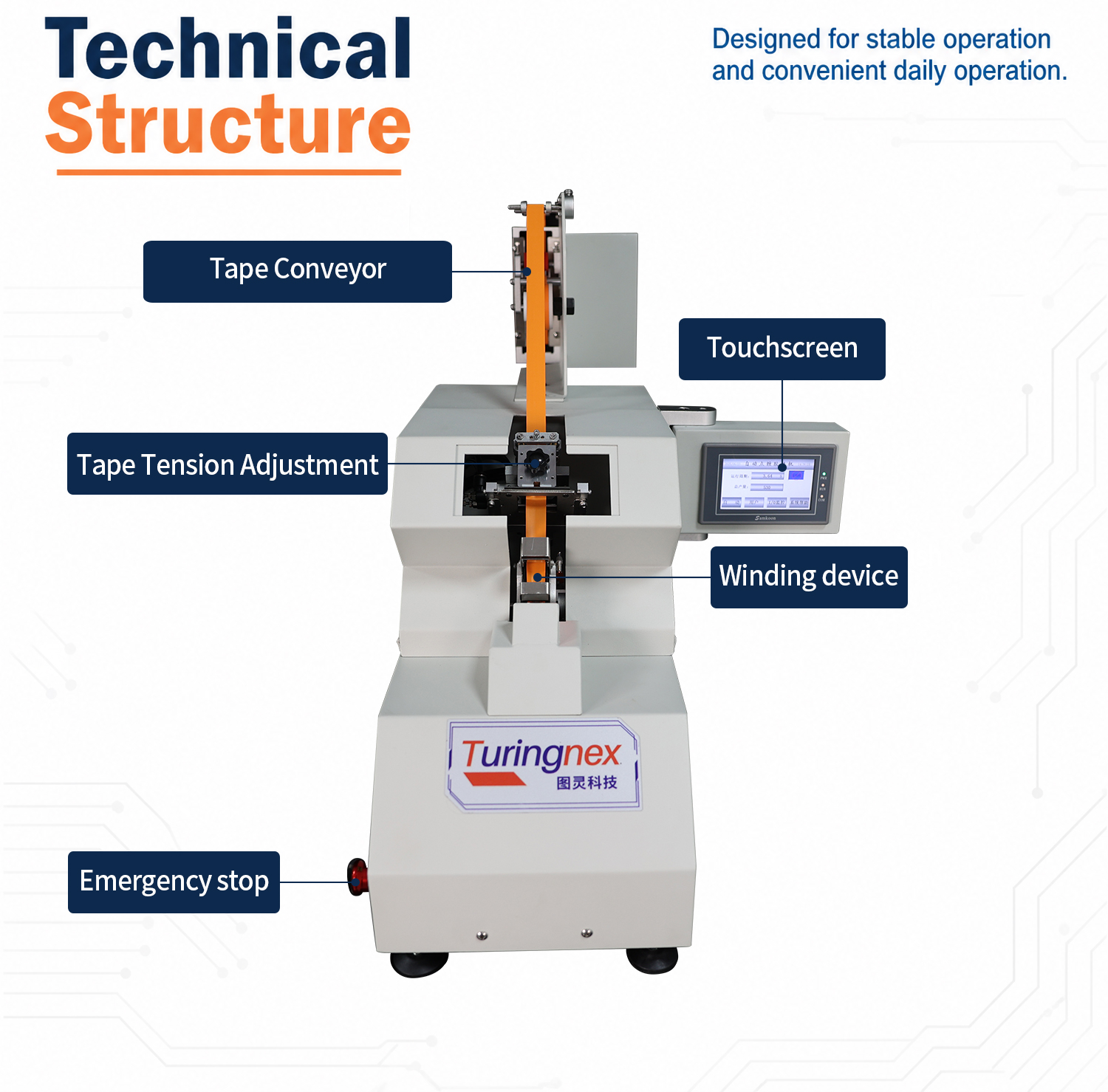

TR-60W20 Semi-automatic Flat Tape Wrapping Machine — detail 7

TR-60W20 Semi-automatic Flat Tape Wrapping Machine — detail 8

TR-60W20 Semi-automatic Flat Tape Wrapping Machine — detail 9

TR-60W20 Semi-automatic Flat Tape Wrapping Machine — detail 10

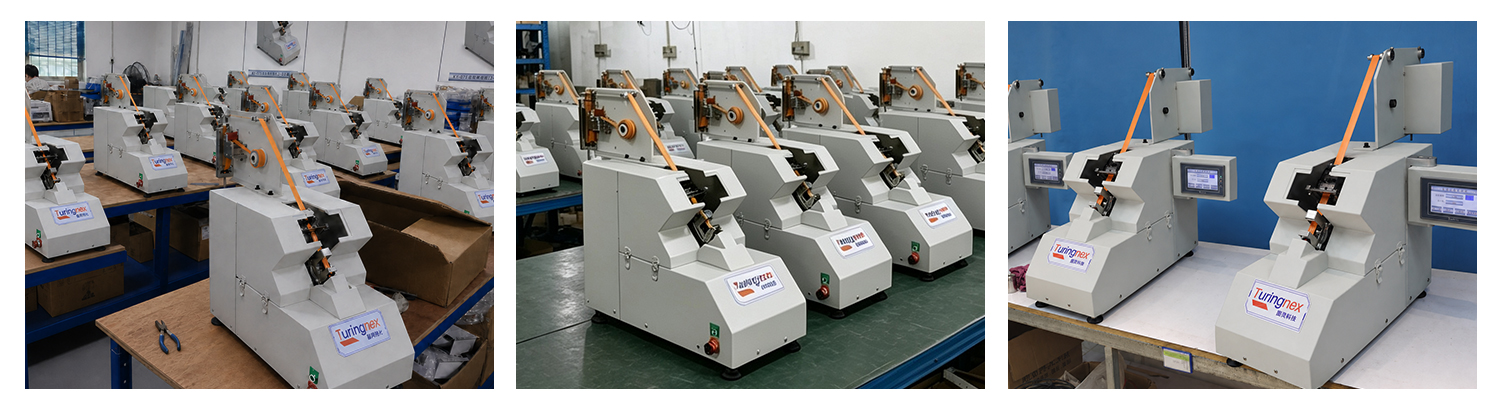

TR-60W20 Semi-automatic Flat Tape Wrapping Machine — detail 11

TR-60W20 Semi-automatic Flat Tape Wrapping Machine — detail 12

TR-60W20 Semi-automatic Flat Tape Wrapping Machine — detail 13

TR-60W20 Semi-automatic Flat Tape Wrapping Machine — detail 14

TR-60W20 Semi-automatic Flat Tape Wrapping Machine — detail 15

TR-60W20 Semi-automatic Flat Tape Wrapping Machine — detail 16
