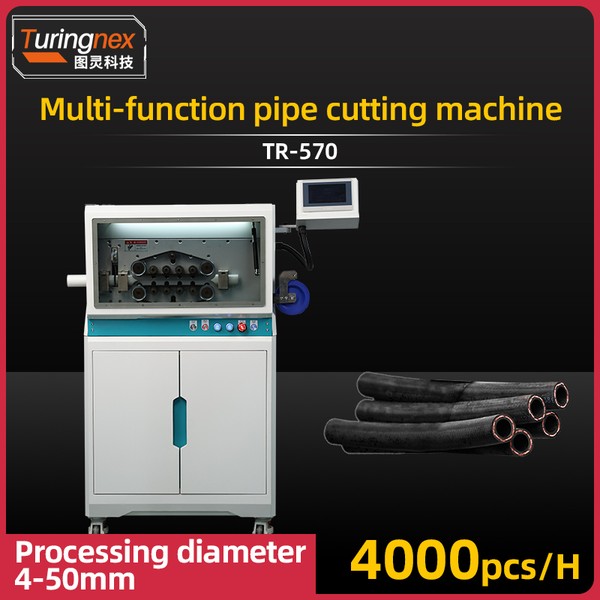

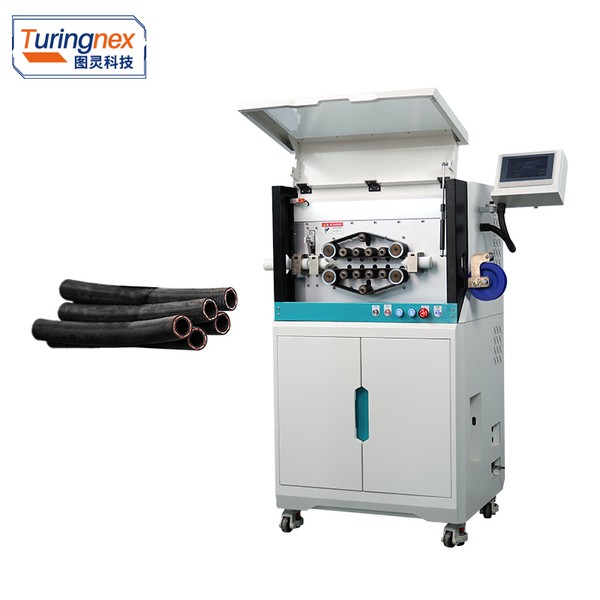

Click to zoomTR-570 Multi-functional Pipe Cutting Machine
TR-570 Multi-functional Pipe Cutting Machine: Power AC220V/50HZ,; application Automatic Tube Cutting Machine; feature Stable Performance.

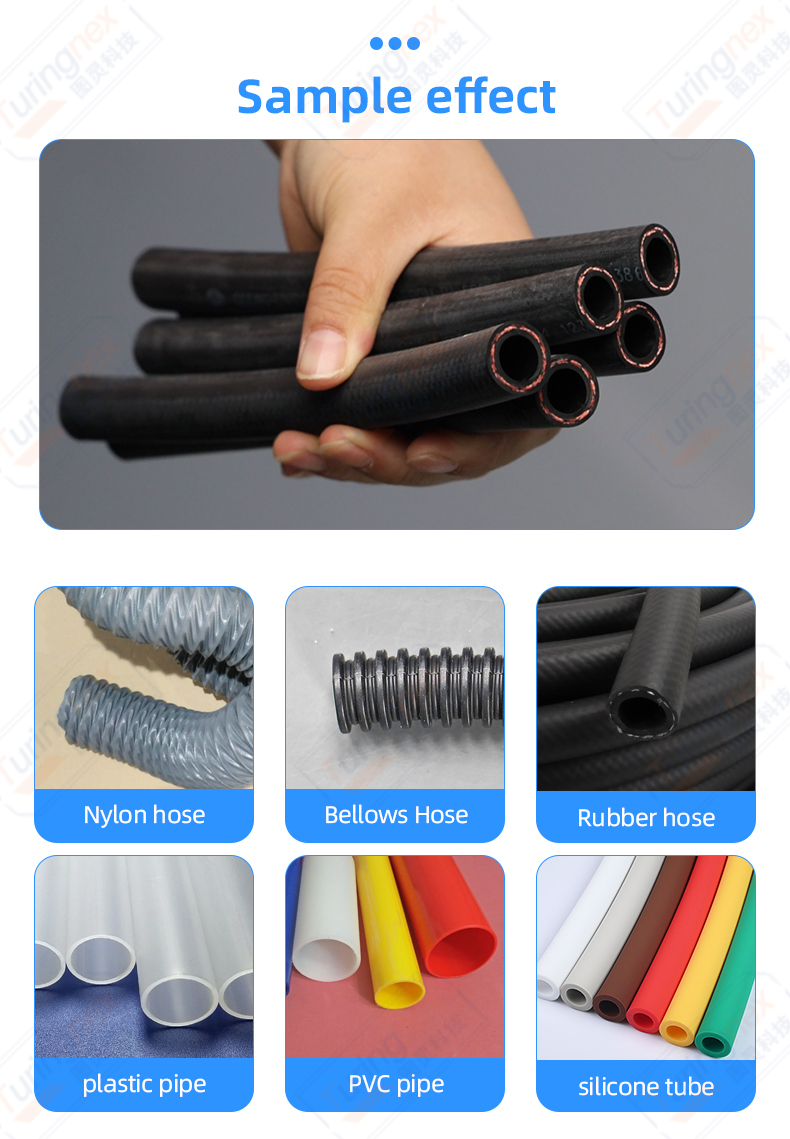

- Functions: 1, gas pipe / low-pressure oil pipe / PVC pipe / heat-shrinkable pipe, and other kinds of plastic tubing cut off at a fixed length.
- Cutting tolerance: within 0.003*L (L=cutting length)
- Allowed to pass the maximum diameter: Φ52
Highlights
Categories
Pipe/Tube Cutting Machine
Brand
Turing
Model
TR-570
Power
AC220V/50HZ,
Watch TR-570 on Your Wire Type
We will send you a short run-test video of this model — real machine, real production. Most videos within 24 h.

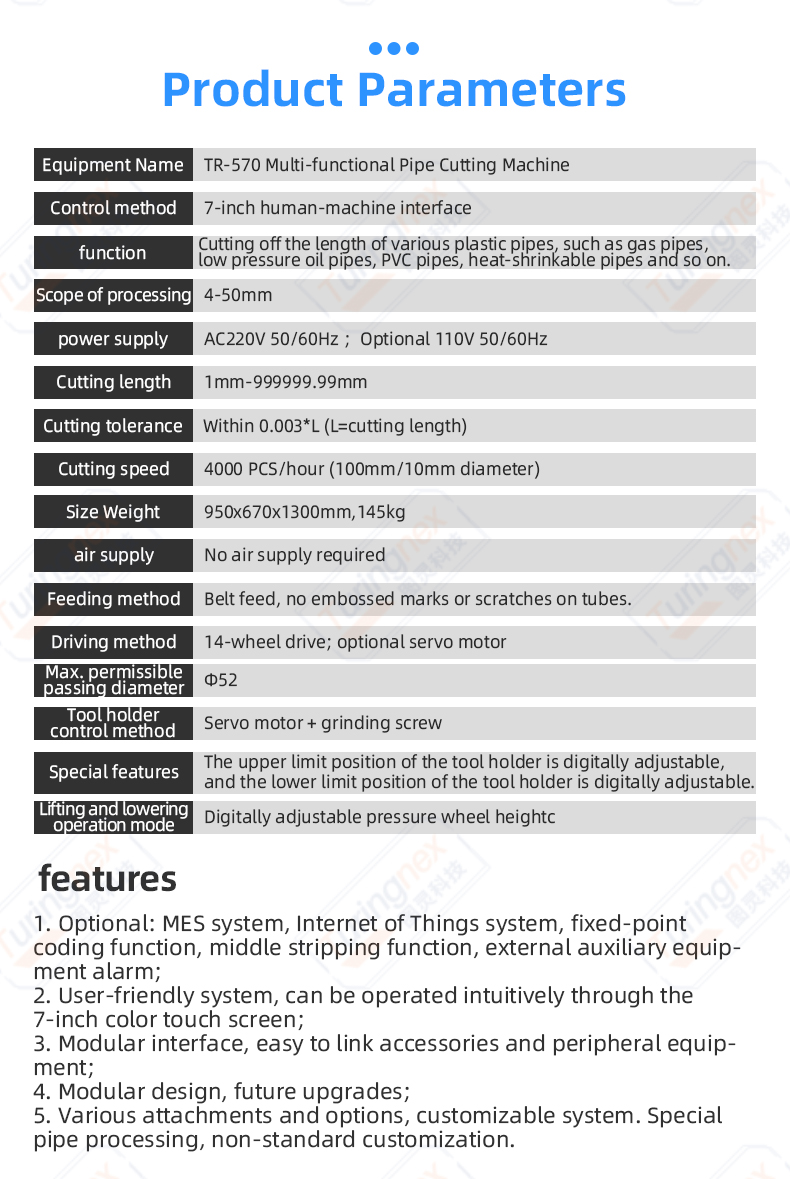

Full Specifications
Technical Data
| Model | TR-570 |
| Power | AC220V/50HZ, |
| Application | Automatic Tube Cutting Machine |
| Feature | Stable Performance |
| Cutting-diameter | ø4-ø50mm |
| Terminal compatibility |
Ordering Information
| Certification | CE — ISO9001 factory — certificates on request |
| MOQ | 1 set |
| Price (FOB, indicative) | Quote on request |
| Lead time | Standard models in stock; customised 7–15 days |
| Payment | T/T 30% deposit + 70% before shipment |
| Warranty | Standard warranty — terms confirmed in sales contract |
| Free trial | Free crimp test with your wire & terminals |
Specifications are indicative and confirmed with your order. Custom configurations available.
Features & Details
- Functions: 1, gas pipe / low-pressure oil pipe / PVC pipe / heat-shrinkable pipe, and other kinds of plastic tubing cut off at a fixed length.
- Cutting tolerance: within 0.003*L (L=cutting length)
- Allowed to pass the maximum diameter: Φ52

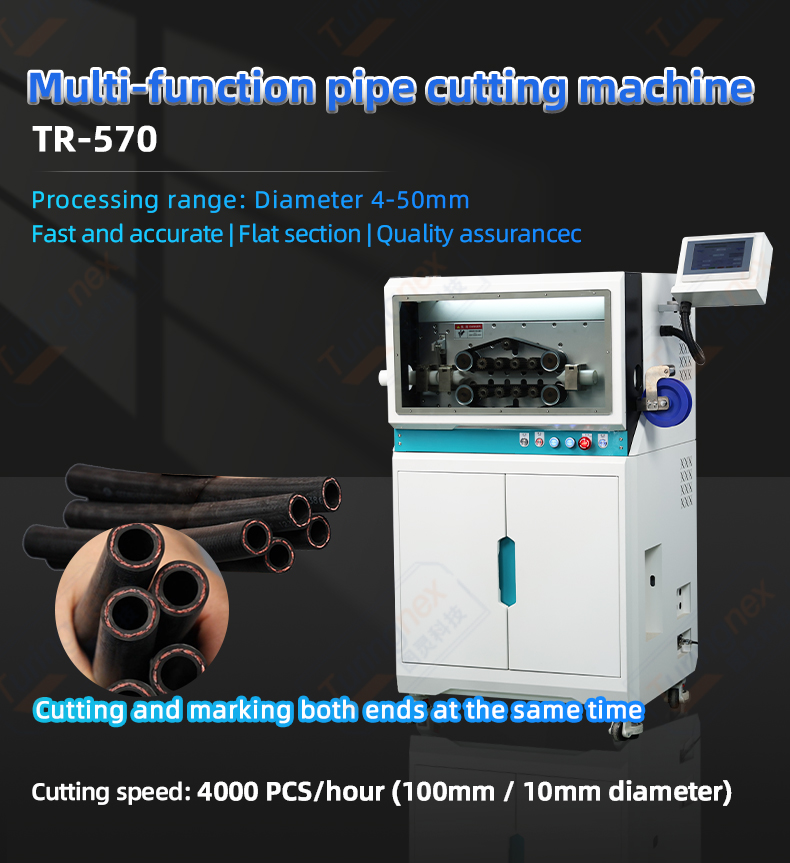

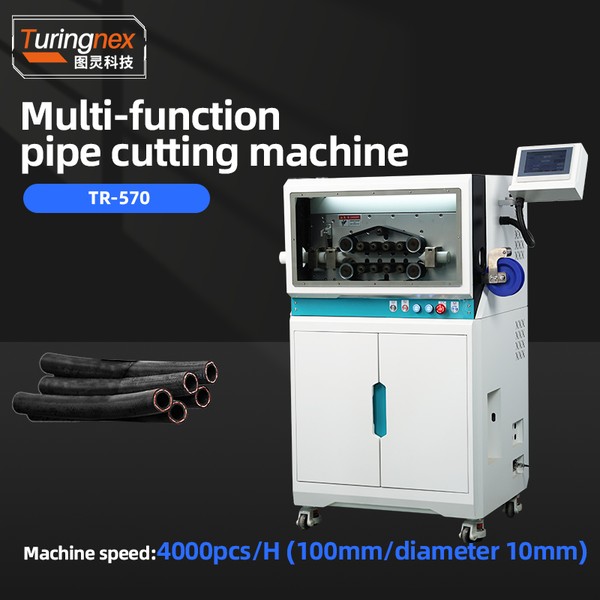

- Productivity: 4000 PCS/hour (100mm/diameter 10mm)
- Driving mode: 14-wheel drive; servo motor can be optionally equipped

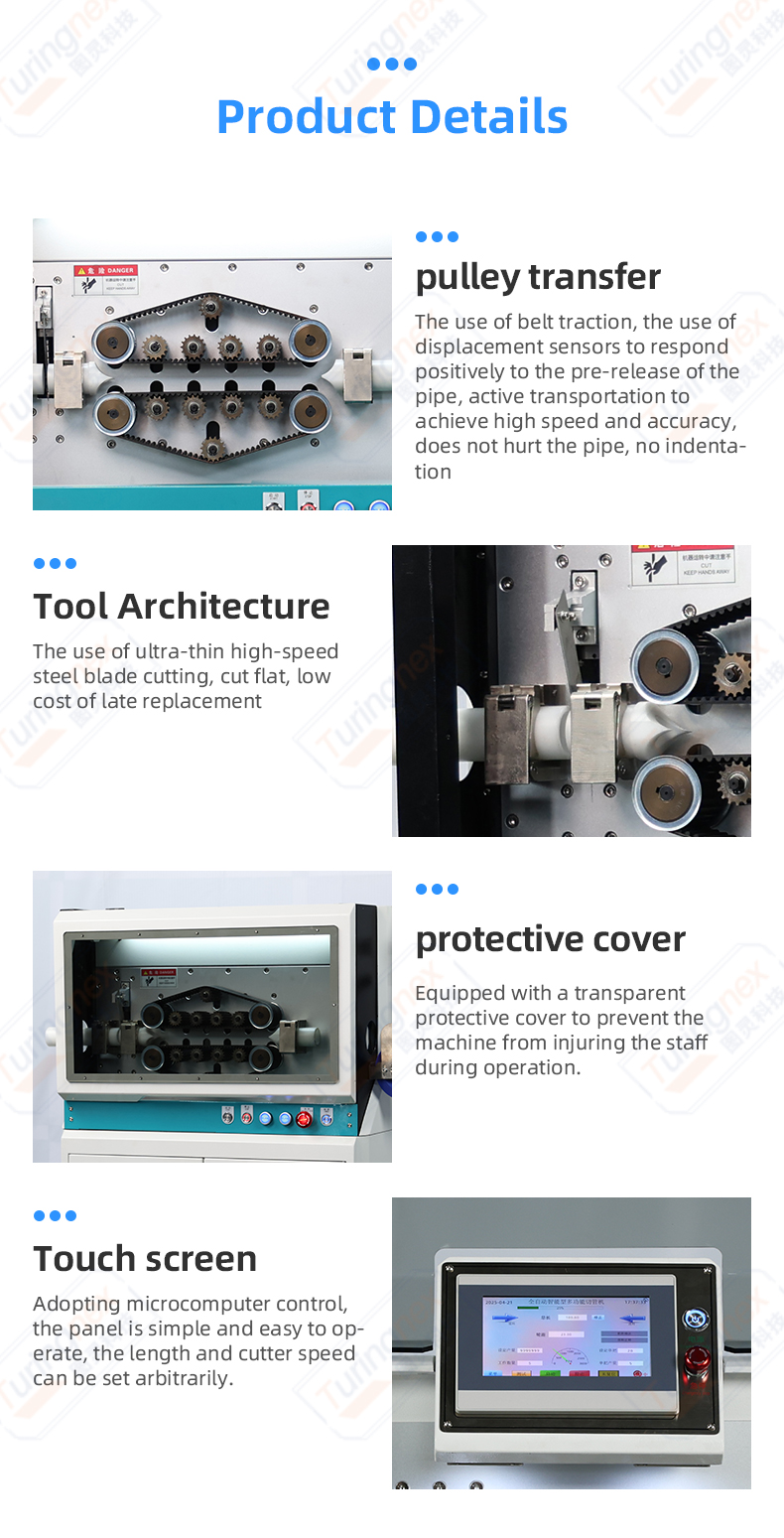

- Feeding mode: belt feeding, no embossed mark and no scratches of the pipe.
Services Around the Machine
From Your Wire to a Working Machine
Machines are configured around your wire range and terminals — this is how we de-risk it before you pay.
Application Note
Which materials it handles, which lines it fits — in the context of your application.
View Application SolutionFree Sample Test
Send your wire and terminals — we run the test on our machine and return the video.
Indicative lead time: On request
Request a TestWhy Buy Direct From Turingnex
Factory Direct
One factory in Dongguan, one engineer per inquiry — 24h quotes, no middlemen.
Certified & Protected
CE certification, ISO9001 quality system, Alibaba Trade Assurance available.
Test Before You Buy
Free crimp test on your wire and terminals — quality verified before you commit.
Packing & Delivery
- Export-grade packing: wooden case / carton with foam protection
- Sea, air or express shipping — tracking provided
- QC photos & videos sent before packing
- Spare dies and consumables available for reorder
