TR-500ST

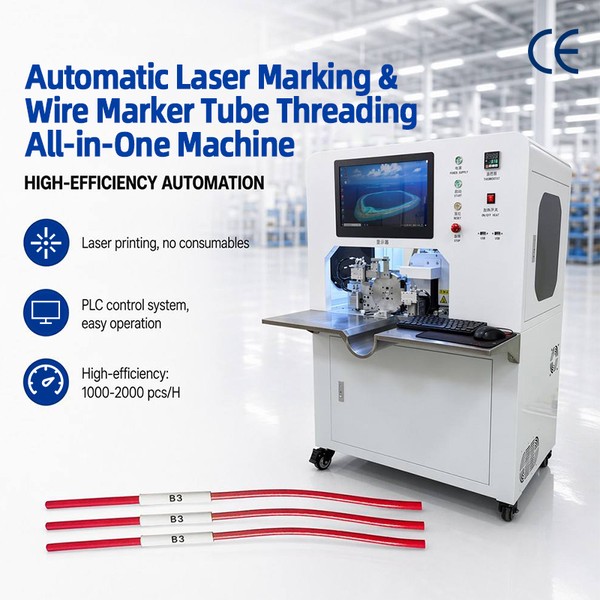

TR-500ST Automatic All-in-one Laser Printing Number Tube Heat Shrinkable Baking Machine

Name: TR-500ST Automatic All-in-one Laser Printing Number Tube Heat Shrinkable Baking Machine
Brand: Turingnex
SKU: TR-500ST
Availability: InStock

TR-500ST Automatic All-in-one Laser Printing Number Tube Heat Shrinkable Baking Machine: Power AC220V/50HZ,; application heat shrinkable tube baking machine; feature Stable Performance.

Request Quotation Watch Video Downloads

Quote on requestFOB · MOQ 1 set · final price confirmed at quotation

Power: AC220V/50HZ,Application: heat shrinkable tube baking machineFeature: Stable PerformanceWarranty: 1yearControl: Servo and Step motorContact: Coco 0086-18666170785

Output reaches 1,000-2,000 pieces per hour, greatly replacing manual work and improving wire harness processing efficiency.
UV laser printing requires no ink or ribbons. Marks are water & oil resistant, cutting long-term consumable costs.

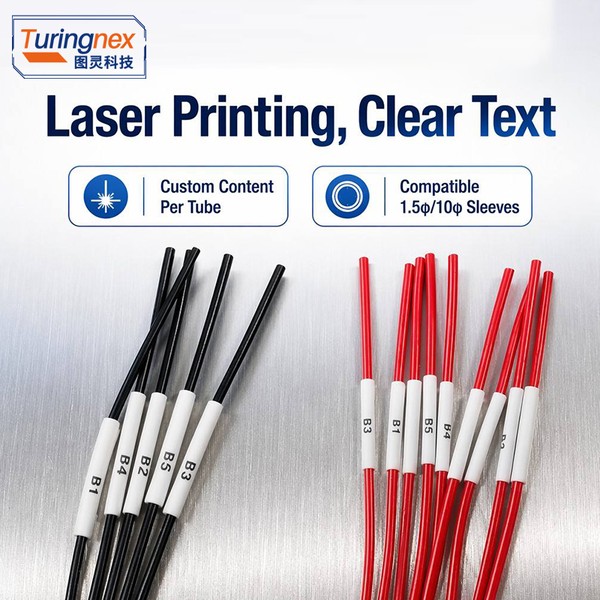

Compatible with standard sleeves φ1.5–φ10; each tube supports separate text/font printing and interval printing for custom orders.

CE CertifiedFactory Direct Price12-Month Warranty24h Quote ResponseTested Before ShipmentFree Sample Test Video

10,000+ Machines installed worldwide50+ Export countries

Highlights

01

High-efficiency 5-tube simultaneous processing

Output reaches 1,000-2,000 pieces per hour, greatly replacing manual work and improving wire harness processing efficiency.

02

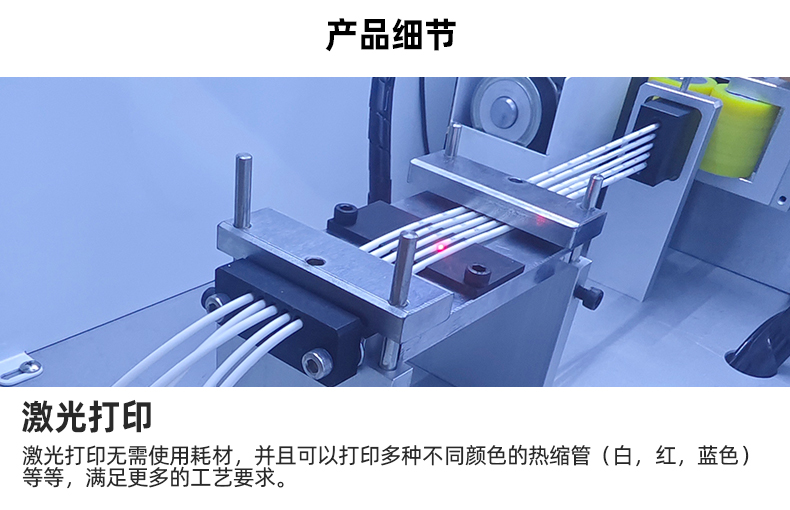

Laser engraving with zero consumables

UV laser printing requires no ink or ribbons. Marks are water & oil resistant, cutting long-term consumable costs.

03

Flexible customized production

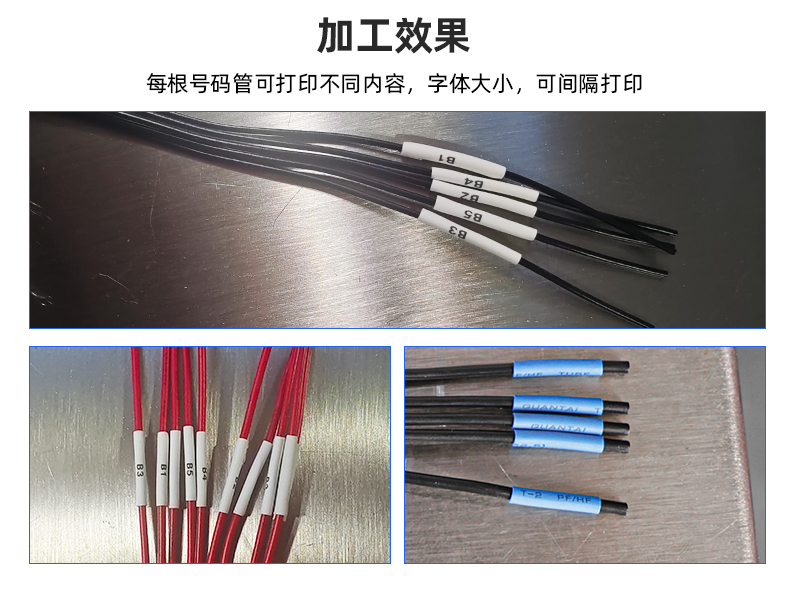

Compatible with standard sleeves φ1.5–φ10; each tube supports separate text/font printing and interval printing for custom orders.

04

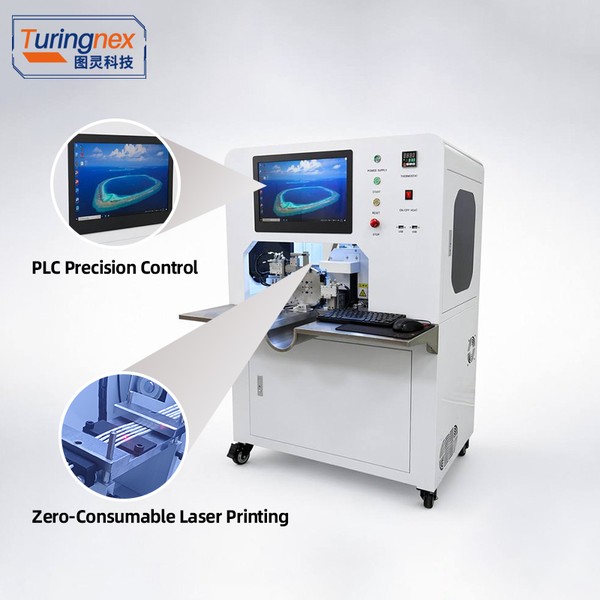

Intelligent PLC control system

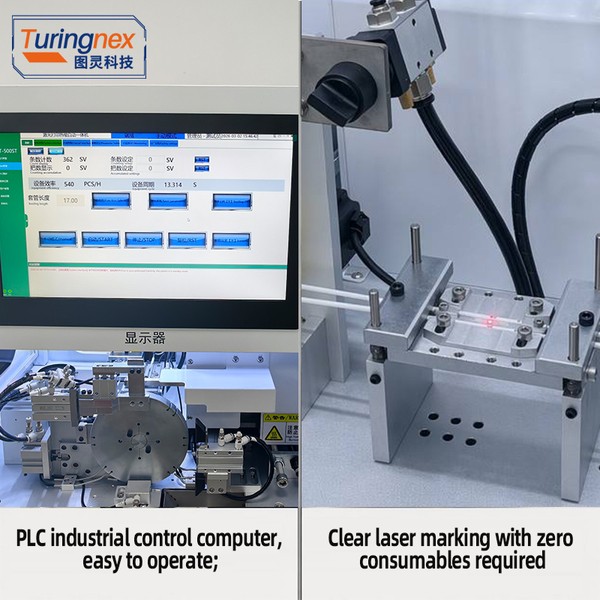

All-in-one industrial PC plus upper software, 7-inch touch screen for visual operation. Real-time content/quantity check and instant parameter editing reduce errors.

Machine Video

TR-500ST in Operation

TR-500ST Automatic All-in-one Laser Printing Number Tube Heat Shrinkable Baking Machine in operation

Full Specifications

Technical Data

Model	TR-500ST
Power	AC220V/50HZ,
Application	heat shrinkable tube baking machine
Feature	Stable Performance
Warranty	1year
Control	Servo and Step motor
Contact	Coco 0086-18666170785
Equipment-name	TR-500ST Automatic Laser Marking & Wire Marker Tube Threading All-in-One Machine
Power-supply	AC 220V 50/60Hz，2500W
Monitor	17-inch
Equipment-casing-baking-length	8mm-45mm (optional jig)

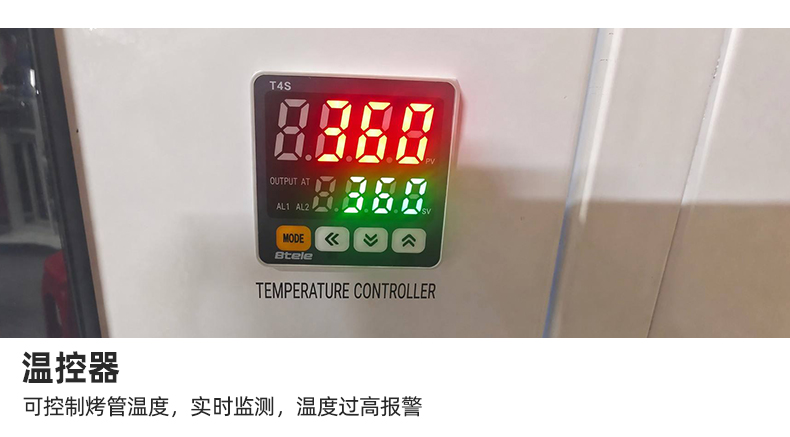

Baking-temperature	0°C-400°C (adjustable by thermostat)
Size-&-weight	L900xW550xH1290mm，165kg
Equipment-casing-compatibility-range	1.5φ/10φ standard Customizable up to φ12
Air-pressure-requirements	0.5/0.65MPa
Operating-temperature	0℃-50℃
Storage-temperature	-20℃-60℃
Operating-humidity	10%RH~90%RH (no condensation)
Anti-interference-ability	Interference voltage: 1500Vp-p; pulse period: 1us; duration: 1 minute
Atmosphere	No corrosive gases
Cooling-method	forced water cooling
Terminal compatibility

Ordering Information

Certification	CE — ISO9001 factory — certificates on request
MOQ	1 set
Price (FOB, indicative)	Quote on request
Lead time	Standard models in stock; customised 7–15 days
Payment	T/T 30% deposit + 70% before shipment
Warranty	Standard warranty — terms confirmed in sales contract
Free trial	Free crimp test with your wire & terminals

Specifications are indicative and confirmed with your order. Custom configurations available.

Features & Details

Output reaches 1,000-2,000 pieces per hour, greatly replacing manual work and improving wire harness processing efficiency.
UV laser printing requires no ink or ribbons. Marks are water & oil resistant, cutting long-term consumable costs.
Compatible with standard sleeves φ1.5–φ10; each tube supports separate text/font printing and interval printing for custom orders.
All-in-one industrial PC plus upper software, 7-inch touch screen for visual operation. Real-time content/quantity check and instant parameter editing reduce errors.
Precision automatic feeding without jamming. Combines marking, threading and heat baking, with multi-protection to extend machine lifespan.
2.The main unit is equipped with a built-in 4-wheel synchronous wire feeder to maintain constant wire tension, and comes with an automatic terminal tape cutting device.

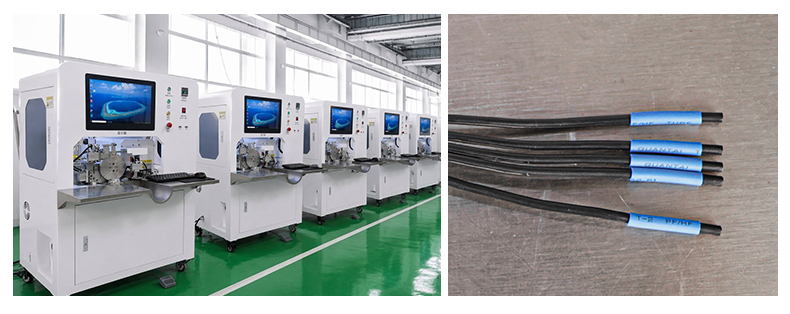

TR-500ST Automatic All-in-one Laser Printing Number Tube Heat Shrinkable Baking Machine — detail 1

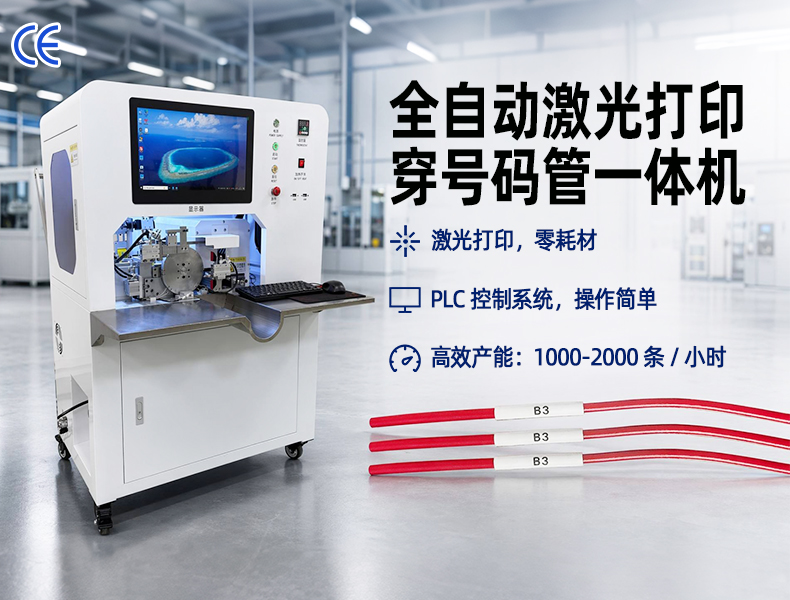

TR-500ST Automatic All-in-one Laser Printing Number Tube Heat Shrinkable Baking Machine — detail 2

TR-500ST Automatic All-in-one Laser Printing Number Tube Heat Shrinkable Baking Machine — detail 3

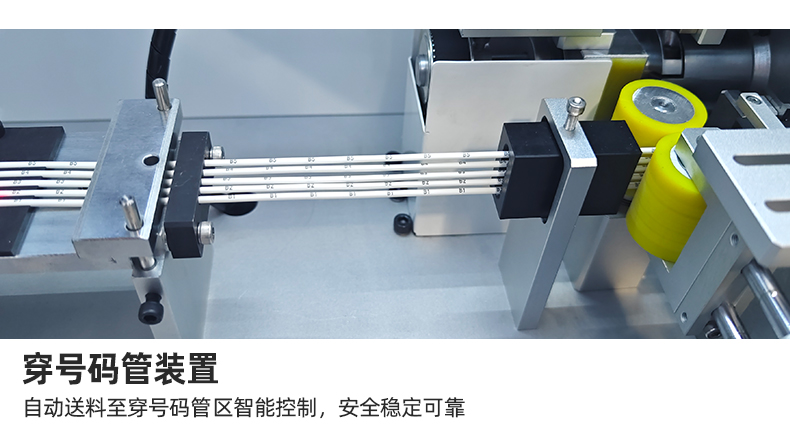

TR-500ST Automatic All-in-one Laser Printing Number Tube Heat Shrinkable Baking Machine — detail 4

TR-500ST Automatic All-in-one Laser Printing Number Tube Heat Shrinkable Baking Machine — detail 5

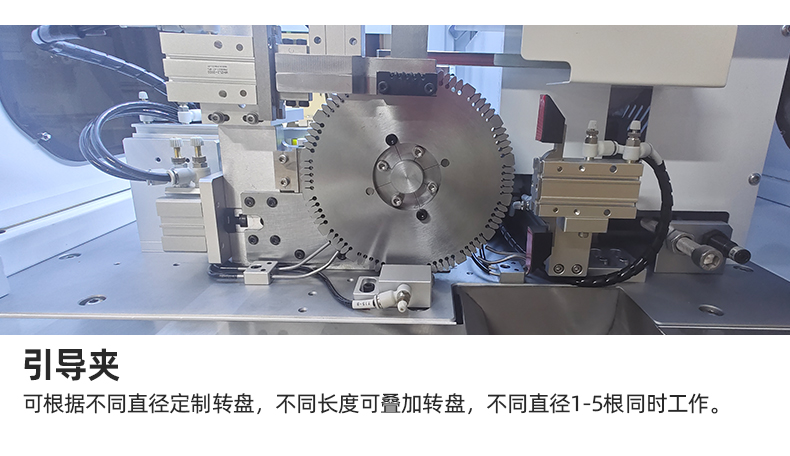

TR-500ST Automatic All-in-one Laser Printing Number Tube Heat Shrinkable Baking Machine — detail 6

TR-500ST Automatic All-in-one Laser Printing Number Tube Heat Shrinkable Baking Machine — detail 7

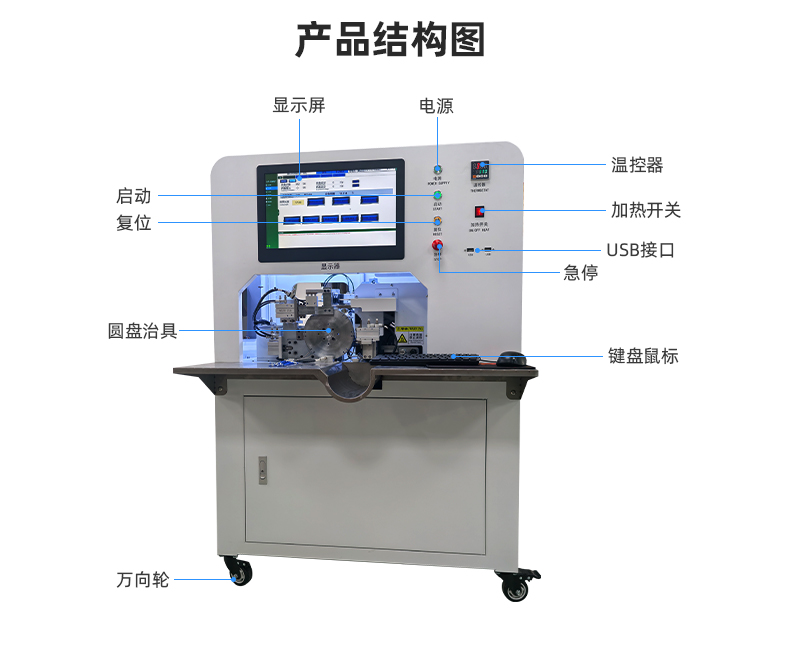

TR-500ST Automatic All-in-one Laser Printing Number Tube Heat Shrinkable Baking Machine — detail 8

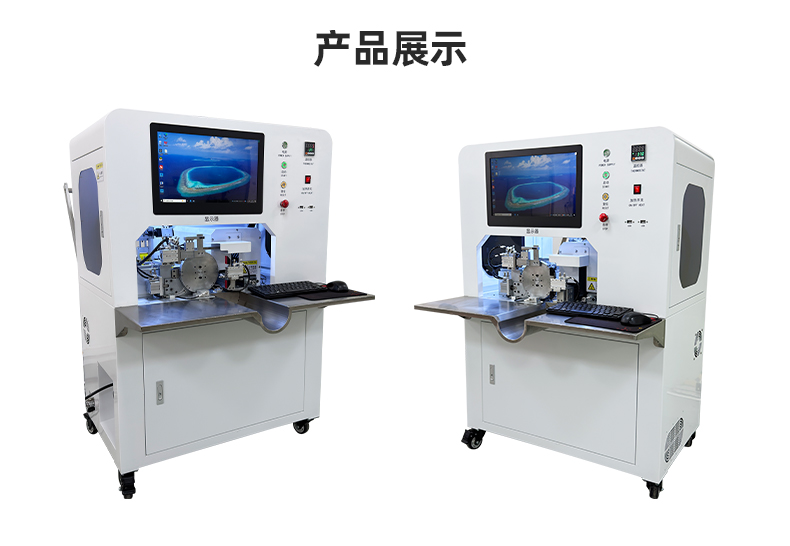

TR-500ST Automatic All-in-one Laser Printing Number Tube Heat Shrinkable Baking Machine — detail 9

TR-500ST Automatic All-in-one Laser Printing Number Tube Heat Shrinkable Baking Machine — detail 10

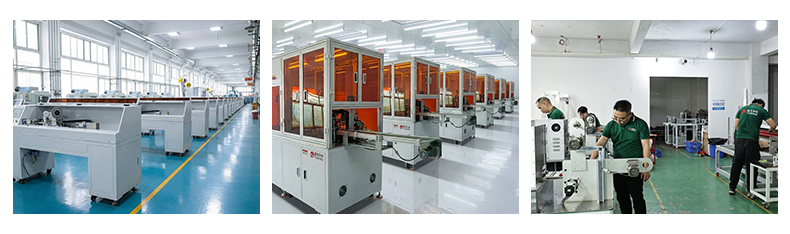

TR-500ST Automatic All-in-one Laser Printing Number Tube Heat Shrinkable Baking Machine — detail 11

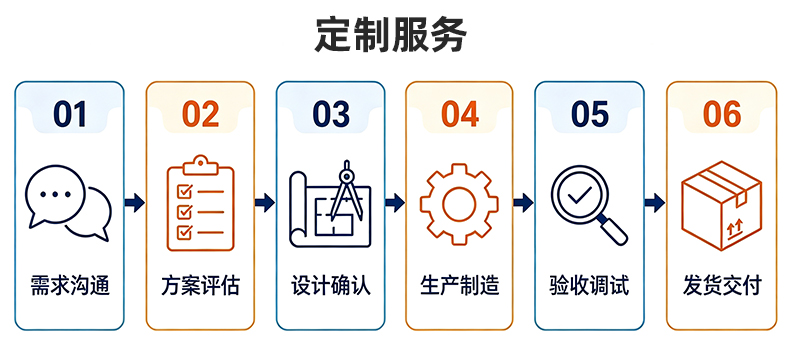

TR-500ST Automatic All-in-one Laser Printing Number Tube Heat Shrinkable Baking Machine — detail 12
