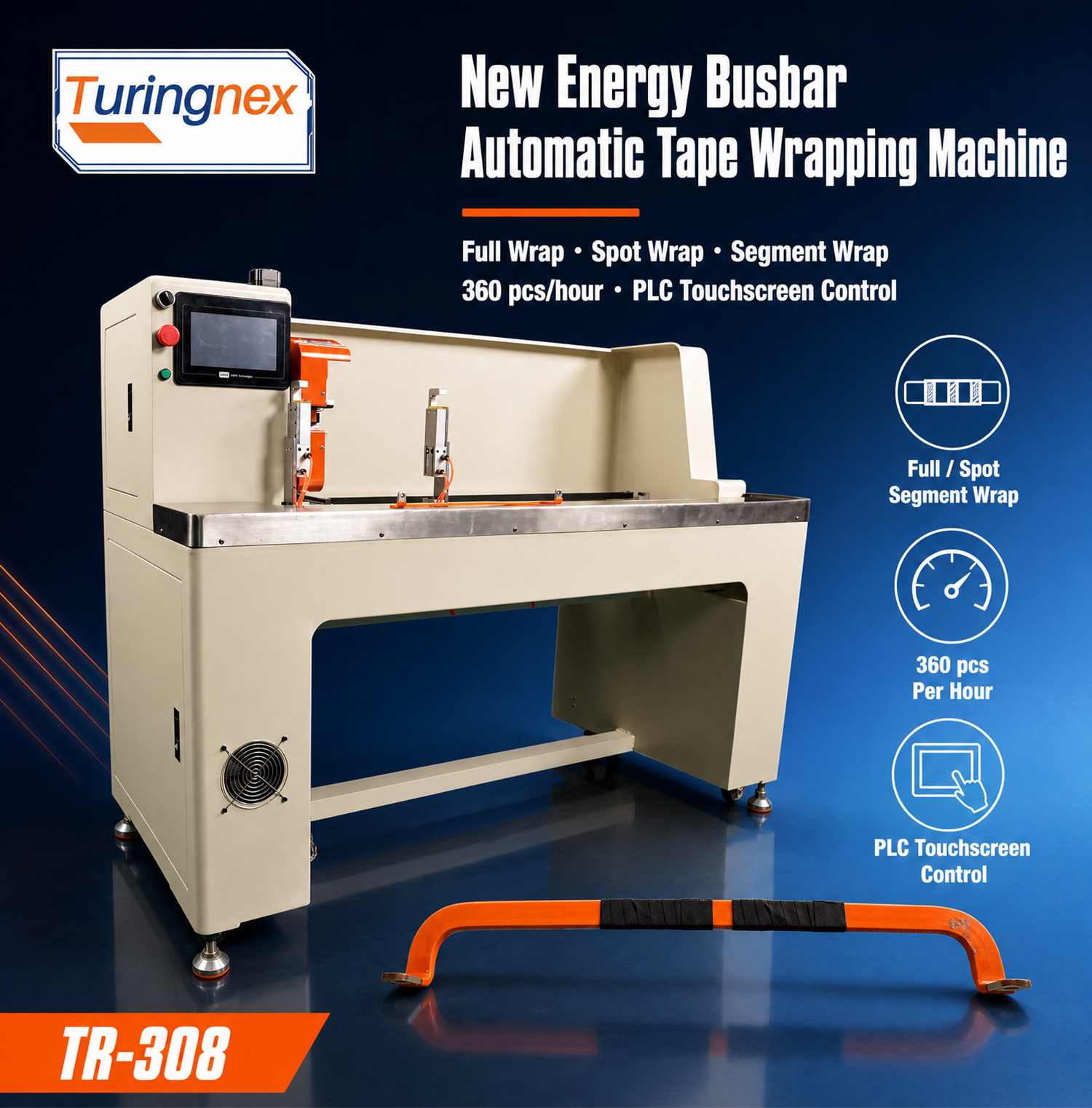

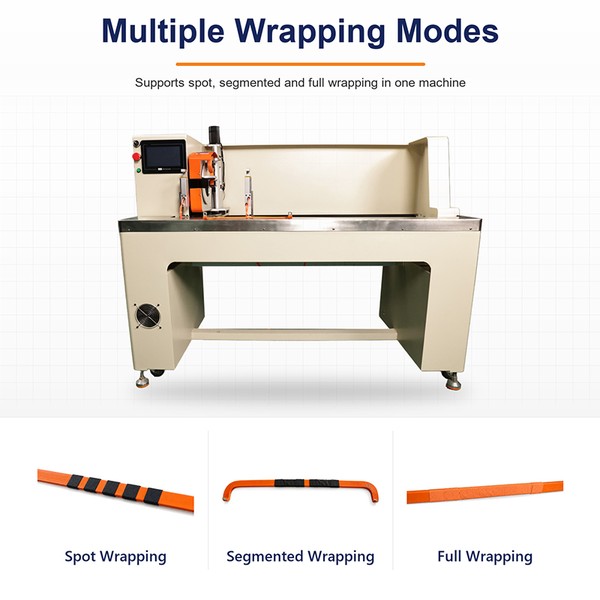

TR-308 New Energy Continuous Tape Wrapping Machine

Name: TR-308 New Energy Continuous Tape Wrapping Machine
Brand: Turingnex
SKU: TR-308
Availability: InStock

TR-308 New Energy Continuous Tape Wrapping Machine: Power AC220V/50HZ, 300W; application Tape Wrapping Machine; feature Stable Performance.

Request Quotation Watch Video Downloads

Quote on requestFOB · MOQ 1 set · final price confirmed at quotation

Power: AC220V/50HZ, 300WApplication: Tape Wrapping MachineFeature: Stable PerformanceFunction: Automatic Tape Winding MachineWarranty: 1yearEquipment-name: TR-308 New Energy Tape Wrapping Machine

Output up to 360 pcs per hour, greatly replacing manual work and boosting productivity.
Servo synchronous moving system ensures wrinkle‑free taping with overlapping tolerance ≤0.5mm.
Firmly locks workpieces on both ends to prevent shifting and avoid scratches on busbar surface.

CE CertifiedFactory Direct Price12-Month Warranty24h Quote ResponseTested Before ShipmentFree Sample Test Video

10,000+ Machines installed worldwide50+ Export countries

Highlights

01

High‑efficiency Production

Output up to 360 pcs per hour, greatly replacing manual work and boosting productivity.

02

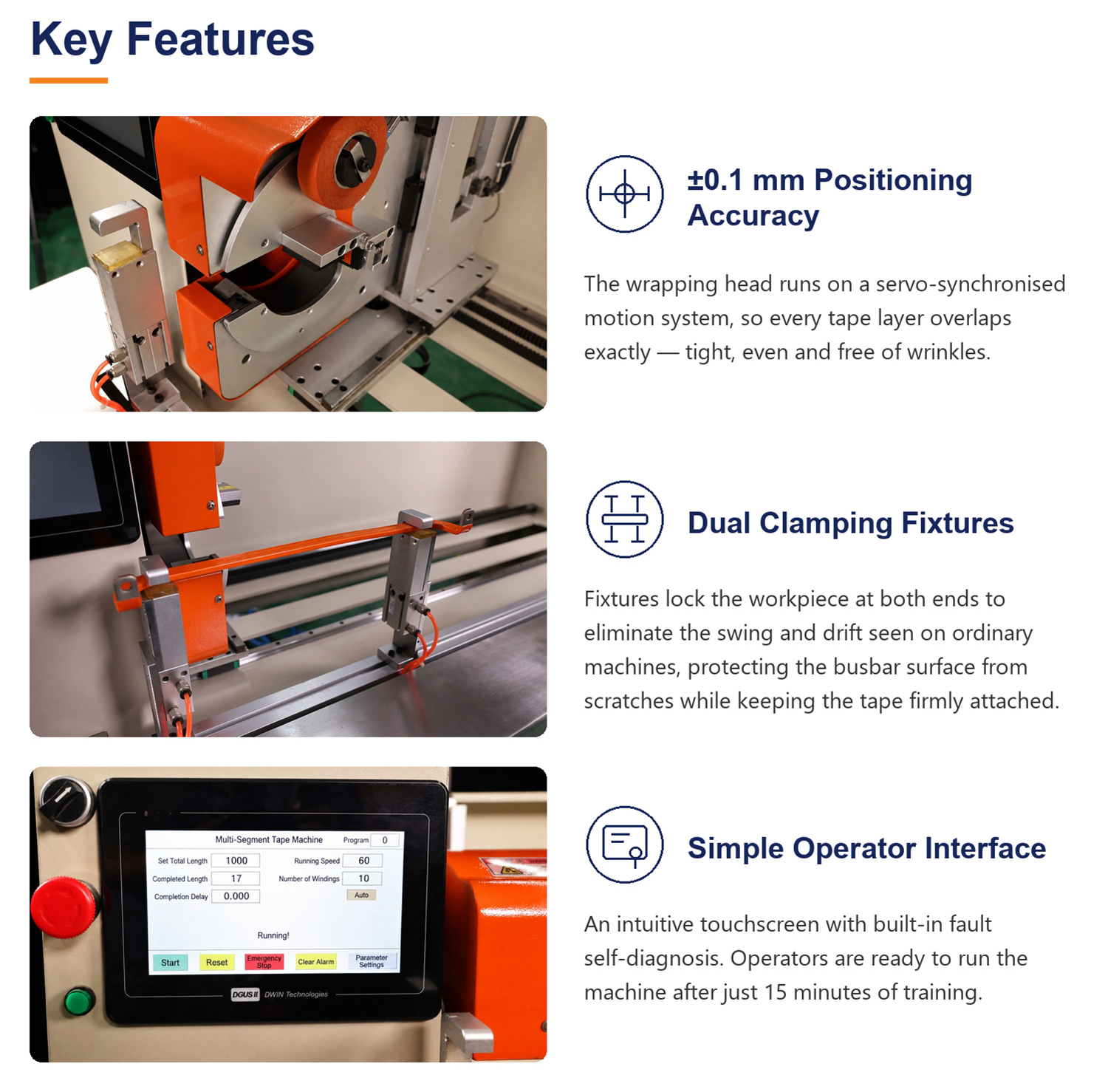

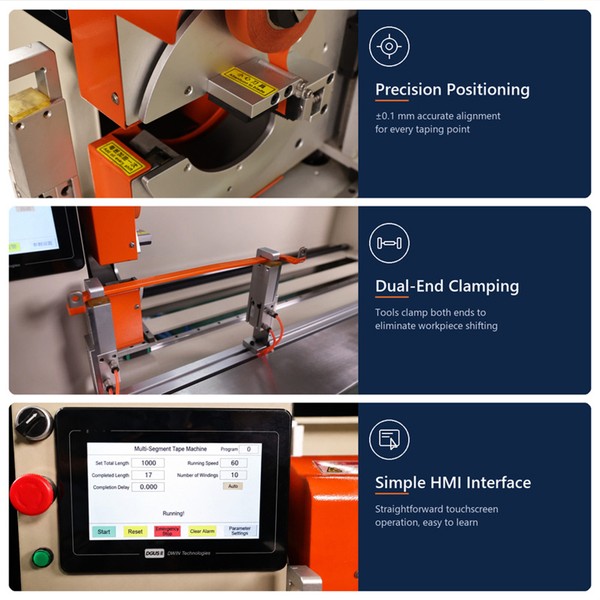

±0.1mm High‑precision Positioning

Servo synchronous moving system ensures wrinkle‑free taping with overlapping tolerance ≤0.5mm.

03

Dual‑clamping Fixture

Firmly locks workpieces on both ends to prevent shifting and avoid scratches on busbar surface.

04

User‑friendly PLC Touch Control

Built‑in self‑diagnosis function for faults; operators can get proficient within 15‑minute training.

05

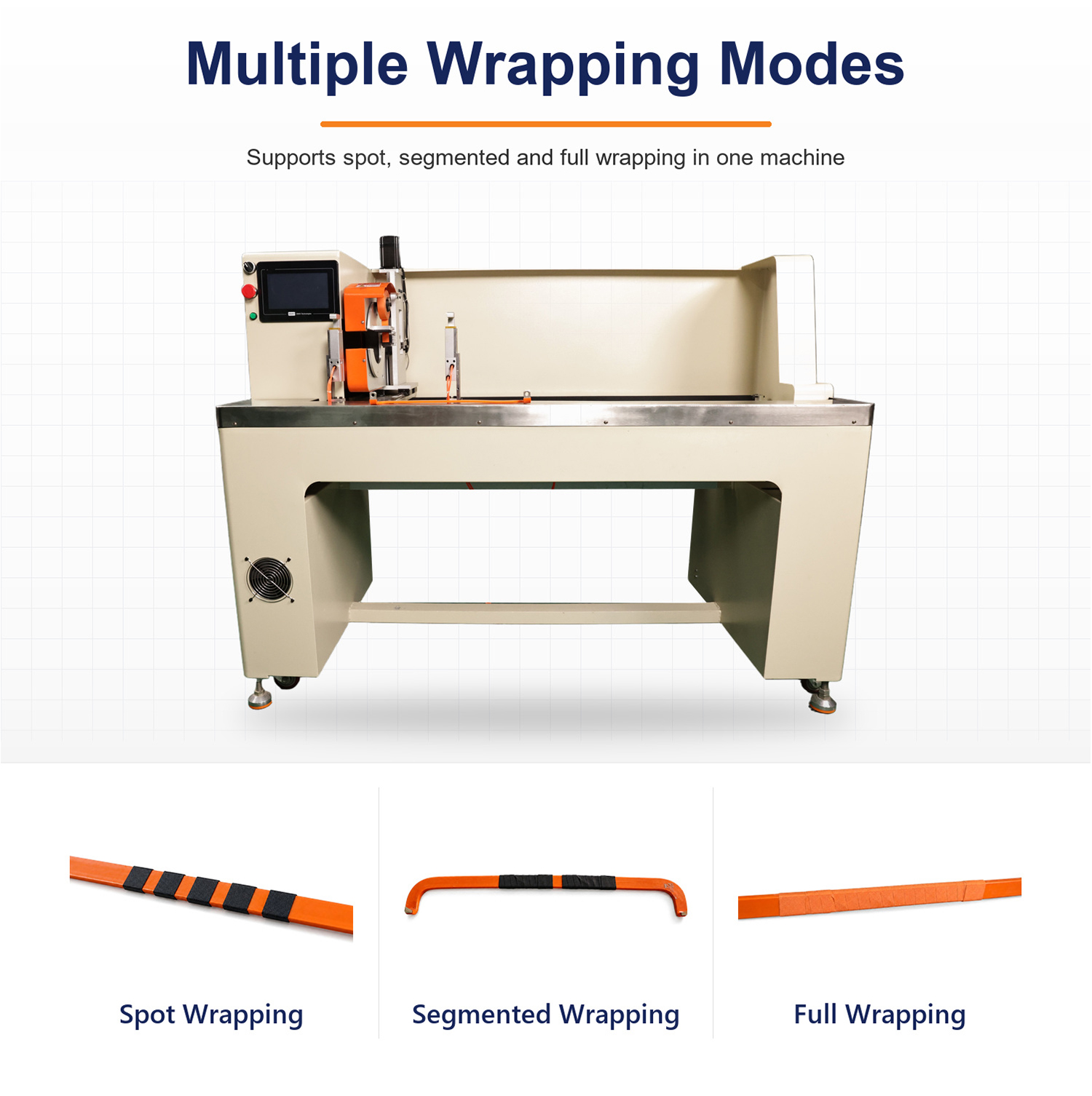

Wide Compatibility

Processes square & round workpieces, fits 5‑30mm tape width; unlimited max processing length.

Machine Video

TR-308 in Operation

TR-308 New Energy Continuous Tape Wrapping Machine in operation

Full Specifications

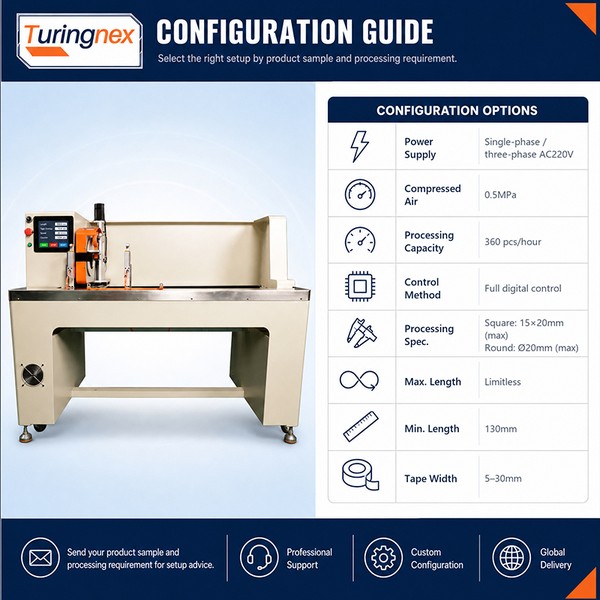

Technical Data

Model	TR-308
Power	AC220V/50HZ, 300W
Application	Tape Wrapping Machine
Feature	Stable Performance
Function	Automatic Tape Winding Machine
Warranty	1year
Equipment-name	TR-308 New Energy Tape Wrapping Machine
Compressed-air	0.5MPa
Production-capacity	360 pcs/hour
Control-method	Full digital control
Processing-specifications	Square: 15*20mm (max) Round: 20mm diameter (max)
Max.-processing-length	limitless
Min.-processing-length	130mm
Main-configuration	5-30mm
Adhesive-tape-overlap-accuracy	Deviation ±0.5mm
Operating-temperature-range	5-40°C ambient temperature
Operating-humidity-range	30%-80%RH No condensation
Terminal compatibility

Ordering Information

Certification	CE — ISO9001 factory — certificates on request
MOQ	1 set
Price (FOB, indicative)	Quote on request
Lead time	Standard models in stock; customised 7–15 days
Payment	T/T 30% deposit + 70% before shipment
Warranty	Standard warranty — terms confirmed in sales contract
Free trial	Free crimp test with your wire & terminals

Specifications are indicative and confirmed with your order. Custom configurations available.

Features & Details

Output up to 360 pcs per hour, greatly replacing manual work and boosting productivity.
Servo synchronous moving system ensures wrinkle‑free taping with overlapping tolerance ≤0.5mm.
Firmly locks workpieces on both ends to prevent shifting and avoid scratches on busbar surface.
Built‑in self‑diagnosis function for faults; operators can get proficient within 15‑minute training.
Processes square & round workpieces, fits 5‑30mm tape width; unlimited max processing length.
Square: 15*20mm (max) Round: 20mm diameter (max)

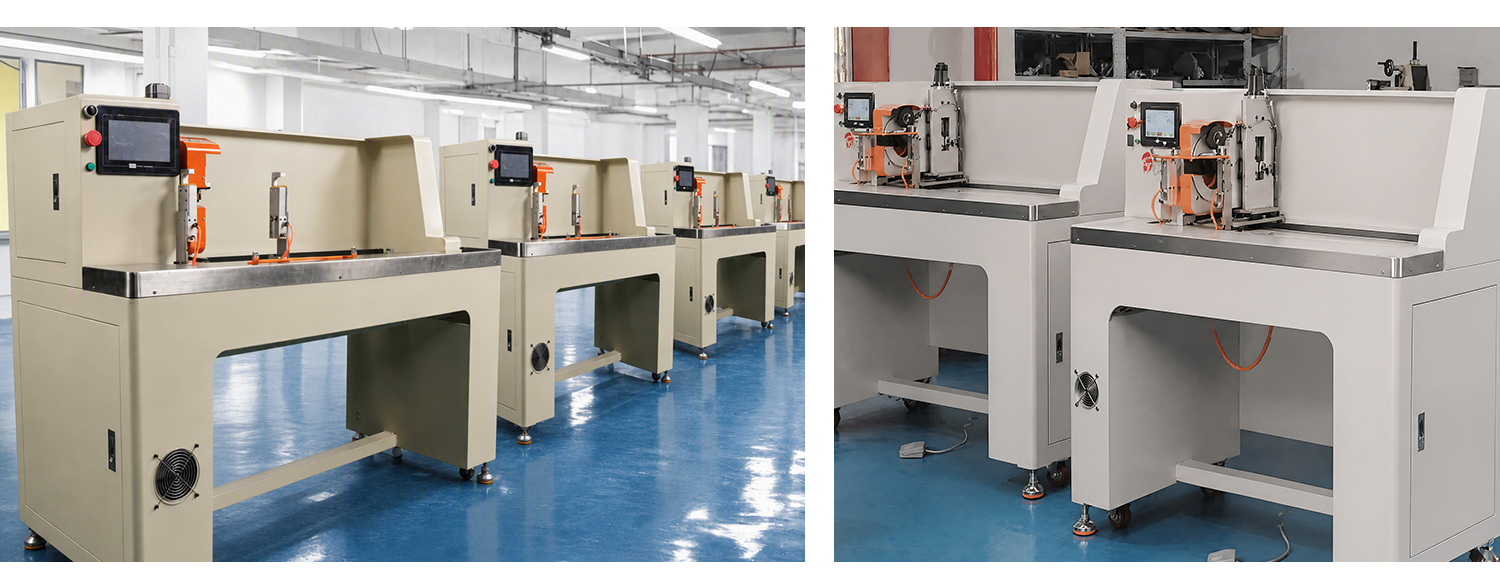

TR-308 New Energy Continuous Tape Wrapping Machine — detail 1

TR-308 New Energy Continuous Tape Wrapping Machine — detail 2

TR-308 New Energy Continuous Tape Wrapping Machine — detail 3

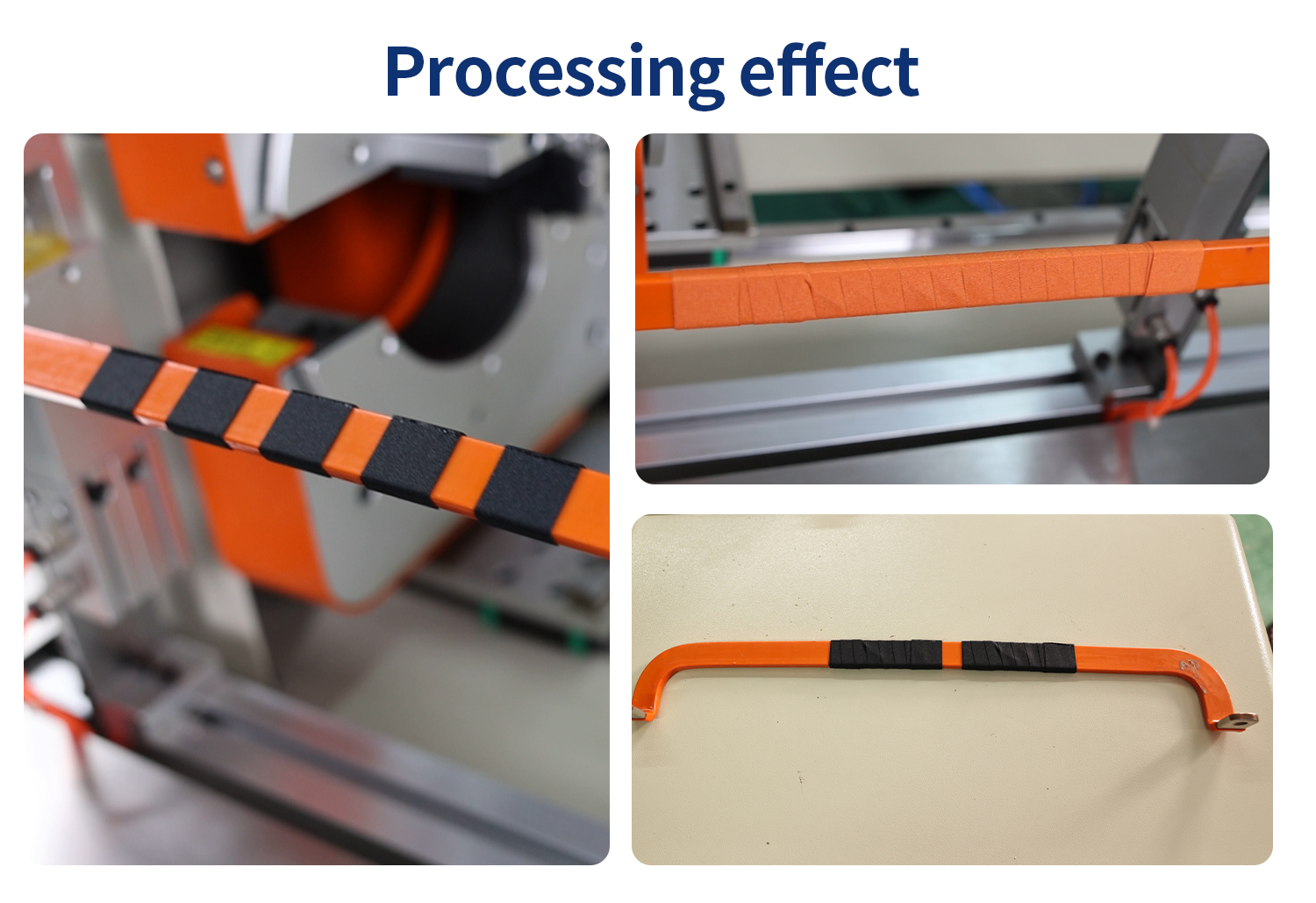

TR-308 New Energy Continuous Tape Wrapping Machine — detail 4

TR-308 New Energy Continuous Tape Wrapping Machine — detail 5

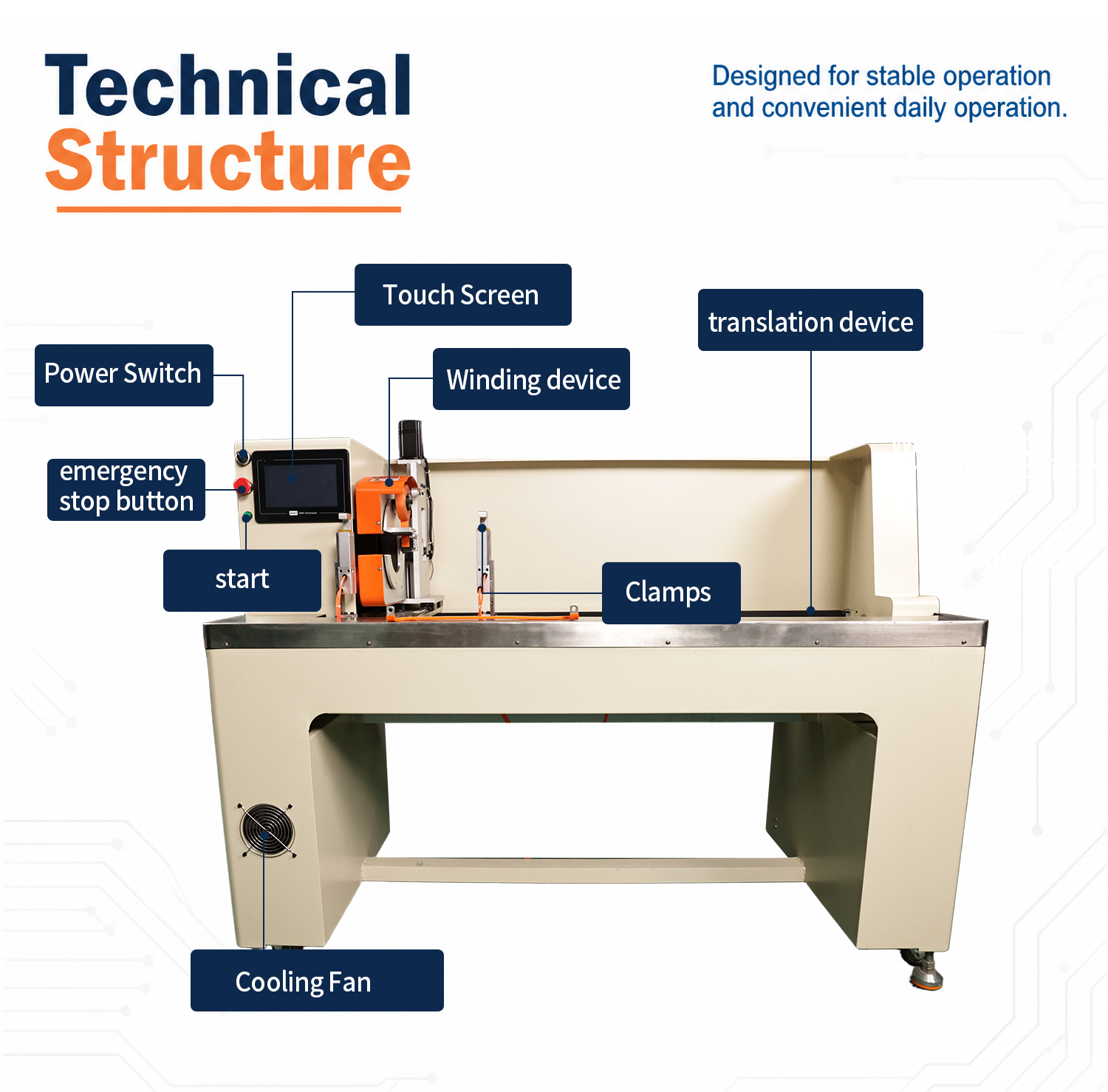

TR-308 New Energy Continuous Tape Wrapping Machine — detail 6

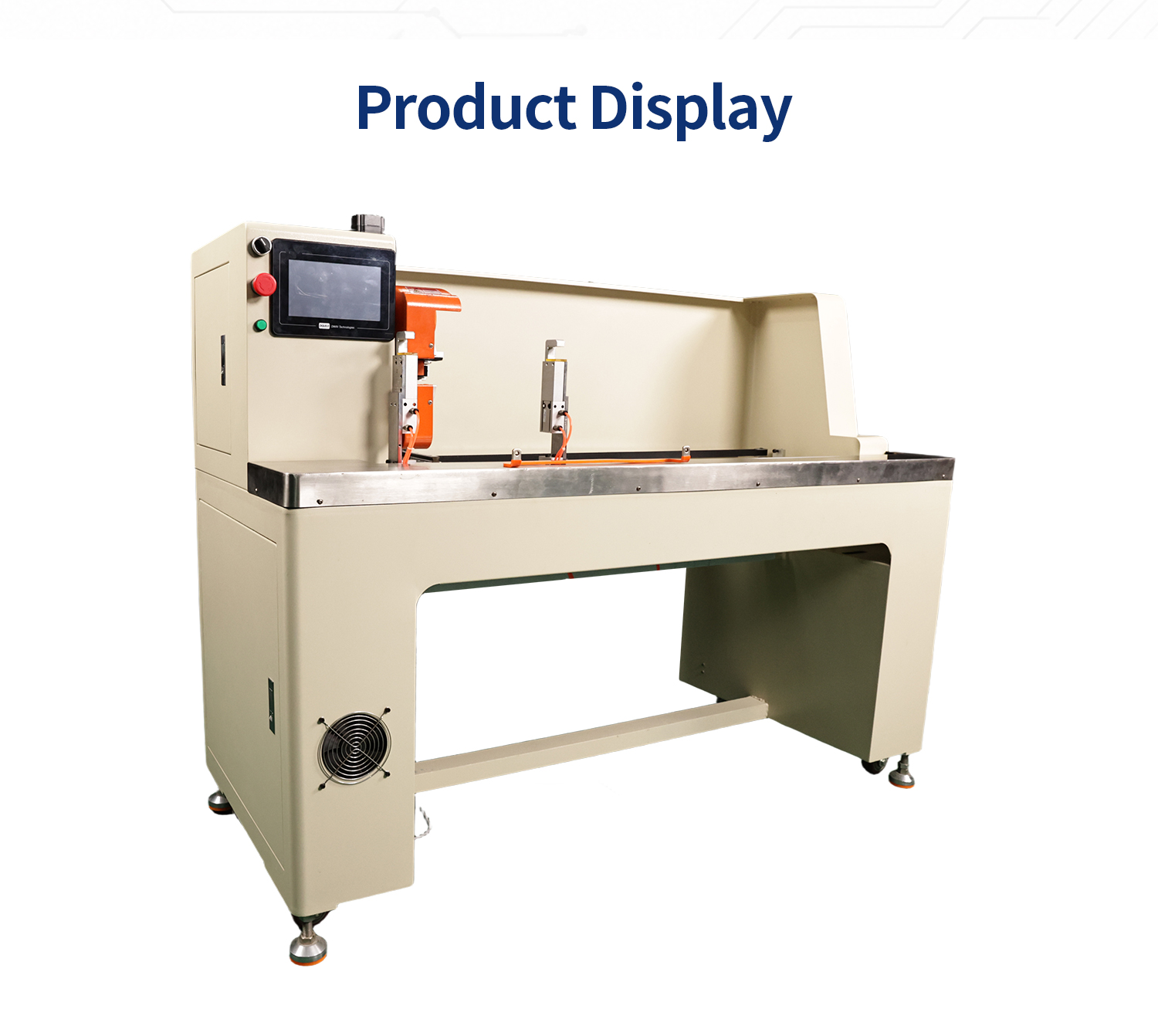

TR-308 New Energy Continuous Tape Wrapping Machine — detail 7

TR-308 New Energy Continuous Tape Wrapping Machine — detail 8

TR-308 New Energy Continuous Tape Wrapping Machine — detail 9

TR-308 New Energy Continuous Tape Wrapping Machine — detail 10

TR-308 New Energy Continuous Tape Wrapping Machine — detail 11

TR-308 New Energy Continuous Tape Wrapping Machine — detail 12

TR-308 New Energy Continuous Tape Wrapping Machine — detail 13

TR-308 New Energy Continuous Tape Wrapping Machine — detail 14

Services Around the Machine

Free sample testYour wire, our machine — video proof before you pay.

Setup guidanceRemote commissioning support included with every order.

12-month warrantyPlus spare-parts support and calibration advice.

Options & toolingCustom dies and accessories made to your terminal.

See All FAQs Browse Custom Tooling

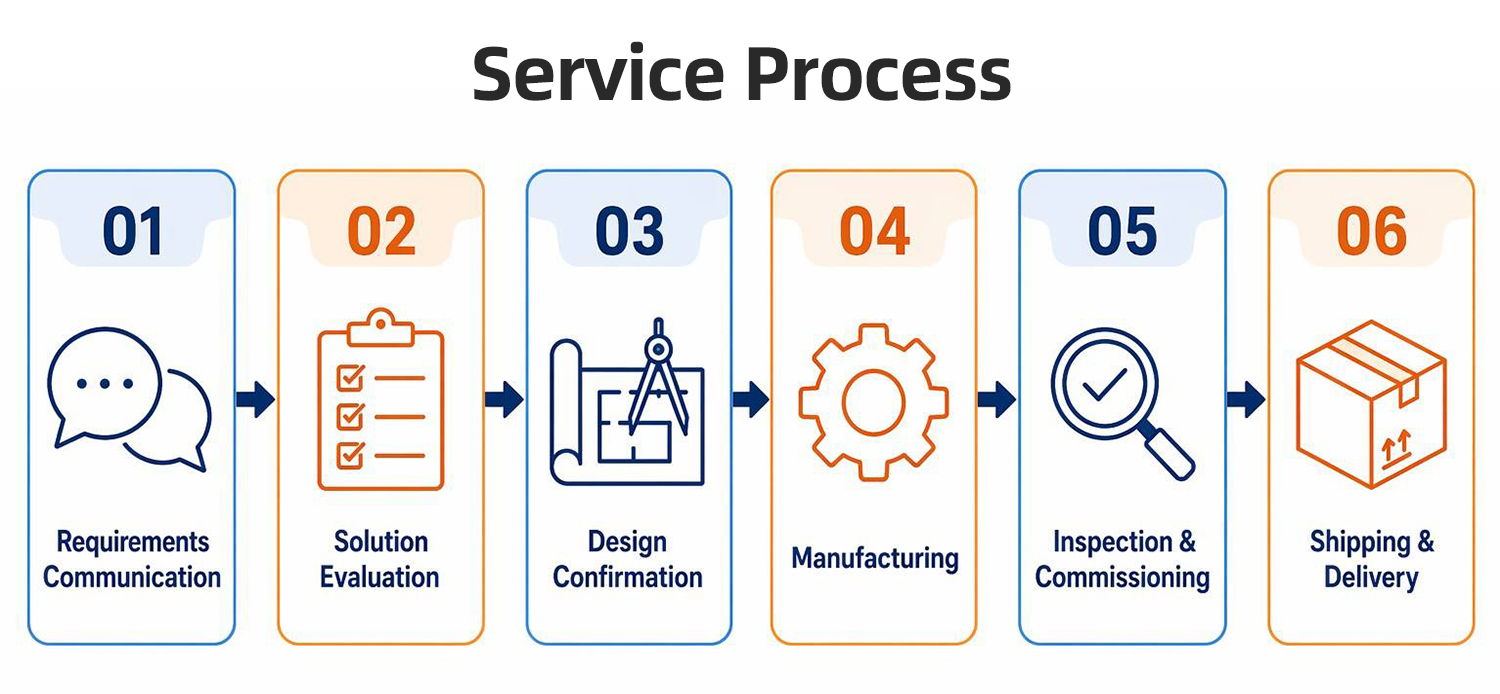

Custom Machine Program

From Your Wire to a Working Machine

Machines are configured around your wire range and terminals — this is how we de-risk it before you pay.

01Send SamplesYour wire and terminals — free evaluation, no commitment.

02Free Test + VideoWe run your sample on the machine and send the video proof.

03Config & QuoteConfiguration, options and FOB quote confirmed within 24 h.

04Build & Run-in TestEvery machine is built and run-in tested 100% before packing.

05QC Video & ShipFinal QC video before packing — sea, air or express dispatch.

Custom dies per drawing Spare parts reorder Remote setup supportStart With Your Samples

Application Note

Which materials it handles, which lines it fits — in the context of your application.

View Application Solution

Free Sample Test

Send your wire and terminals — we run the test on our machine and return the video.

Indicative lead time: On request

Request a Test

Custom dies & tooling Service & support plan Full datasheet library Compare with other models

Why Buy Direct From Turingnex

Applied Industries

Automotive & MotorcycleWiring harness lines

New Energy & EVHigh-voltage & battery cables

Home ApplianceInternal wiring production

ElectronicsConnector & cable assemblies

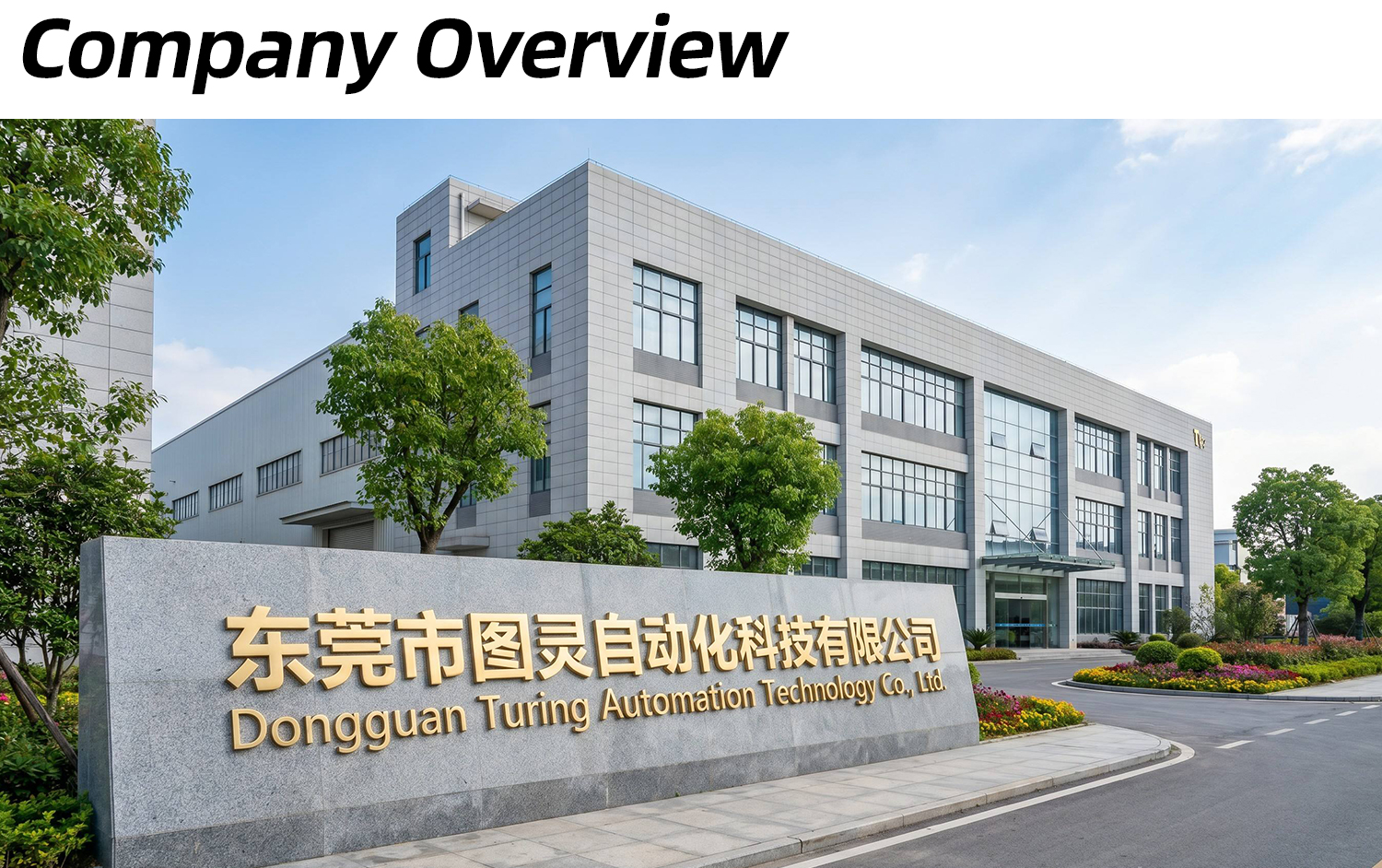

20,000㎡Factory area, Dongguan
