TR-25W

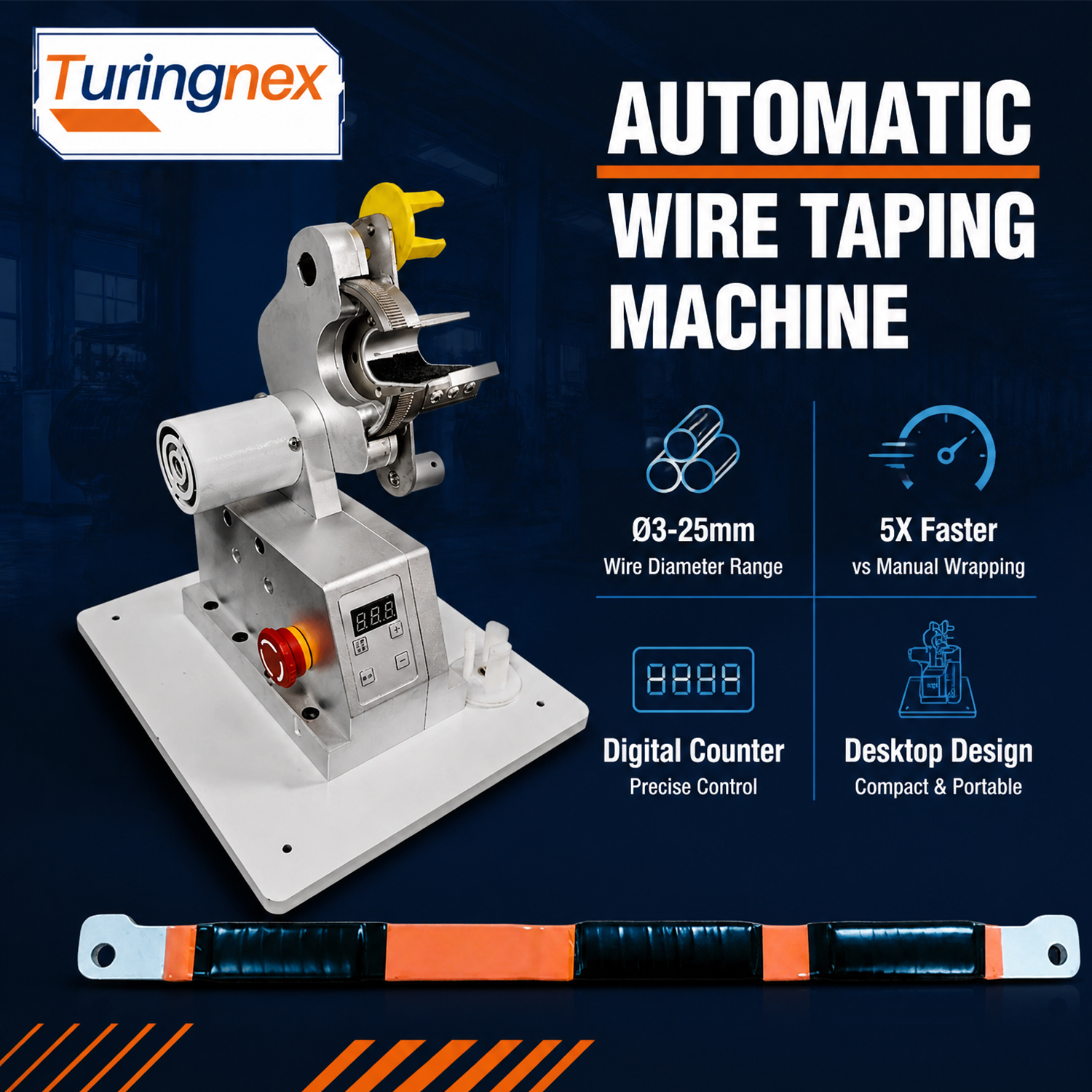

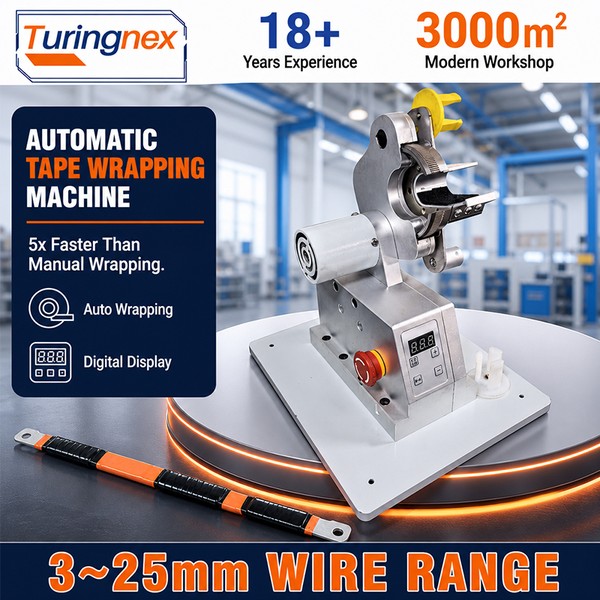

TR-25W Small Tape Winding Machine

Name: TR-25W Small Tape Winding Machine
Brand: Turingnex
SKU: TR-25W
Availability: InStock

TR-25W Small Tape Winding Machine: Power AC220V/50HZ,; operating-mode Touch Screen; power-supply AC220V/DC24V.

Quote on requestFOB · MOQ 1 set · final price confirmed at quotation

Power: AC220V/50HZ,Operating-mode: Touch ScreenPower-supply: AC220V/DC24VWarranty: 1yearWire-diameter: Ф3mm-25mmEquipment-name: TR-25W Small Tape Winding Machine

Compatible with various tapes including PVC, vinyl, flannel cloth, cloth-based tape, high-temperature tape, ceramic tape, etc. It fits wire diameters of 3–25 mm and tape widths of 5–25 mm. Custom inner diameters of tape rolls are available to meet diverse wire harness processing requirements.
9-speed adjustable winding speed (1–9 gears), programmable spot winding cycles from 1 to 99 turns, and bidirectional left/right spiral winding. Standardized winding tension and turns ensure uniform finished products.
Optimized for winding short wires and multi-branch wire harnesses, solving the pain points of irregular and inefficient manual wrapping of complex branched cables.

CE CertifiedFactory Direct Price12-Month Warranty24h Quote ResponseTested Before ShipmentFree Sample Test Video

10,000+ Machines installed worldwide50+ Export countries

Highlights

01

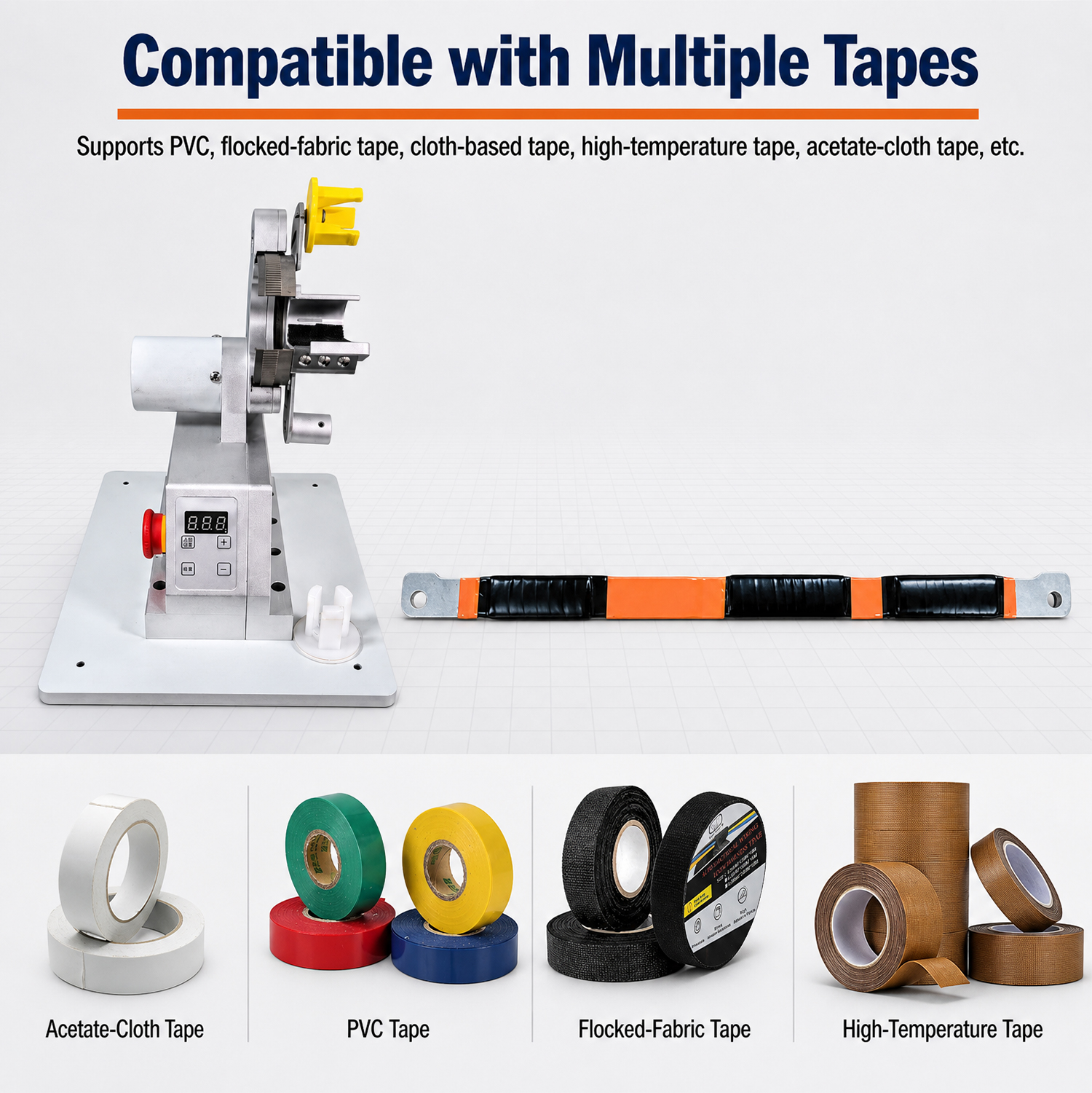

Wide Compatibility with Tapes and Wires

Compatible with various tapes including PVC, vinyl, flannel cloth, cloth-based tape, high-temperature tape, ceramic tape, etc. It fits wire diameters of 3–25 mm and tape widths of 5–25 mm. Custom inner diameters of tape rolls are available to meet diverse wire harness processing requirements.

02

Adjustable Parameters for Precise Winding

9-speed adjustable winding speed (1–9 gears), programmable spot winding cycles from 1 to 99 turns, and bidirectional left/right spiral winding. Standardized winding tension and turns ensure uniform finished products.

03

Specially Designed for Short & Multi-branch Wires

Optimized for winding short wires and multi-branch wire harnesses, solving the pain points of irregular and inefficient manual wrapping of complex branched cables.

04

Compact & Lightweight for Flexible Layout

Overall dimension: W300L250H330 mm, net weight only 10 kg. Small footprint saves workshop space and allows easy placement and movement on assembly workbenches.

Machine Video

TR-25W in Operation

TR-25W Small Tape Winding Machine in operation

Full Specifications

Technical Data

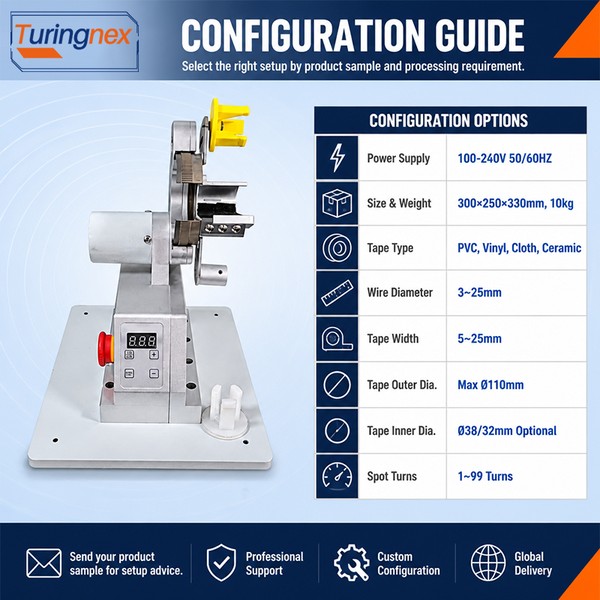

Model	TR-25W
Power	AC220V/50HZ,
Operating-mode	Touch Screen
Power-supply	AC220V/DC24V
Warranty	1year
Wire-diameter	Ф3mm-25mm
Equipment-name	TR-25W Small Tape Winding Machine
Size-&-weight	300x250x330mm,10kg
Tape-width	5-25mm
Winding-method	Spiral Winding
Winding-direction	Left and Right
Tape-inner-diameter	Max.110mm
Tape-outer-diameter	38mm/32mm (optional), other sizes customizable
Speed	1-9 Gears
Spot-winding-loops	1-99 Loops
Applicable-tapes	PVC, Vinyl, Flocked Cloth, Cloth-backed Tape, Ceramic Tape,High-temperature Resistant Tape, etc.
Terminal compatibility

Ordering Information

Certification	CE — ISO9001 factory — certificates on request
MOQ	1 set
Price (FOB, indicative)	Quote on request
Lead time	Standard models in stock; customised 7–15 days
Payment	T/T 30% deposit + 70% before shipment
Warranty	Standard warranty — terms confirmed in sales contract
Free trial	Free crimp test with your wire & terminals

Specifications are indicative and confirmed with your order. Custom configurations available.

Features & Details

Compatible with various tapes including PVC, vinyl, flannel cloth, cloth-based tape, high-temperature tape, ceramic tape, etc. It fits wire diameters of 3–25 mm and tape widths of 5–25 mm. Custom inner diameters of tape rolls are available to meet diverse wire harness processing requirements.
9-speed adjustable winding speed (1–9 gears), programmable spot winding cycles from 1 to 99 turns, and bidirectional left/right spiral winding. Standardized winding tension and turns ensure uniform finished products.
Optimized for winding short wires and multi-branch wire harnesses, solving the pain points of irregular and inefficient manual wrapping of complex branched cables.
38mm/32mm (optional), other sizes customizable
PVC, Vinyl, Flocked Cloth, Cloth-backed Tape, Ceramic Tape,High-temperature Resistant Tape, etc.

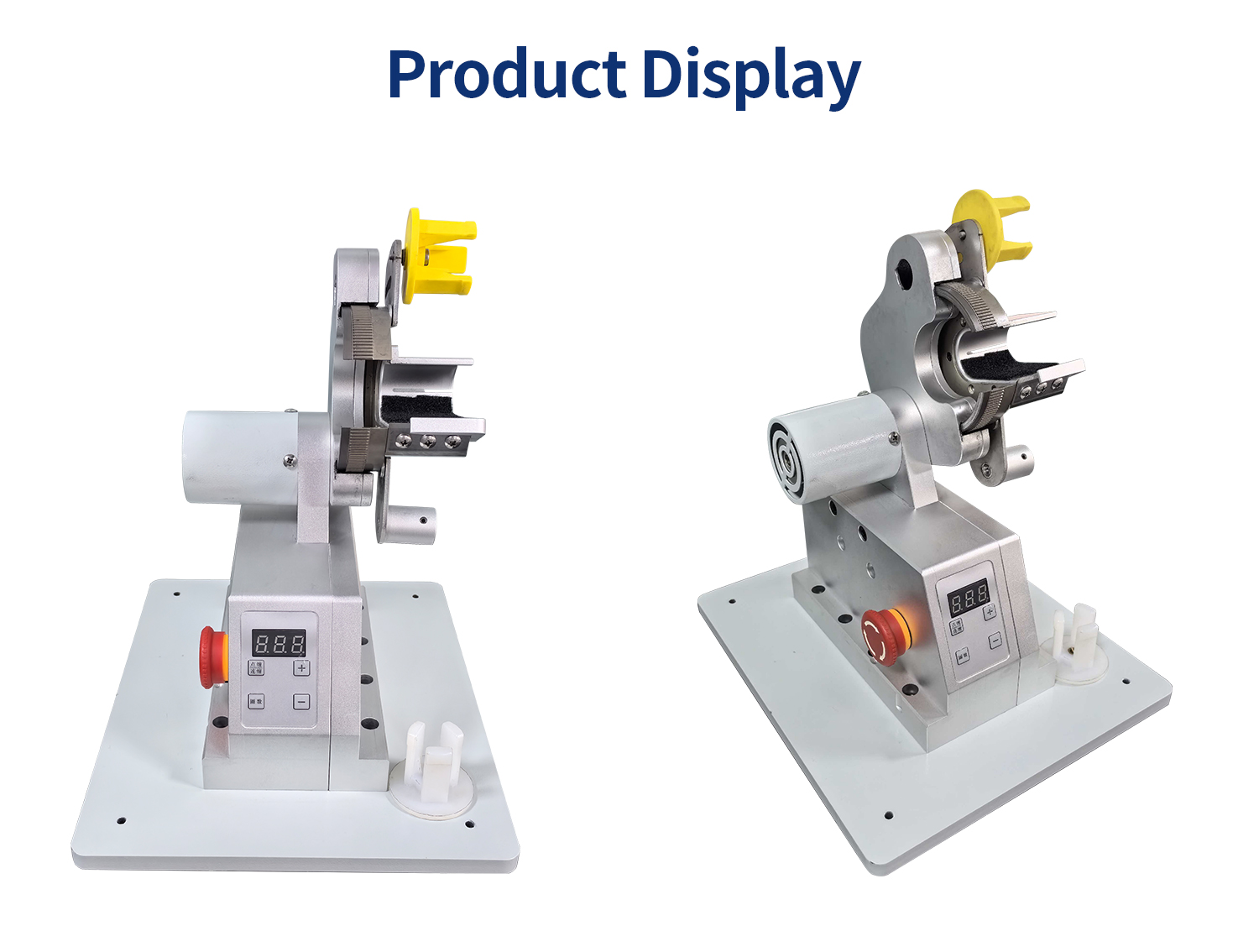

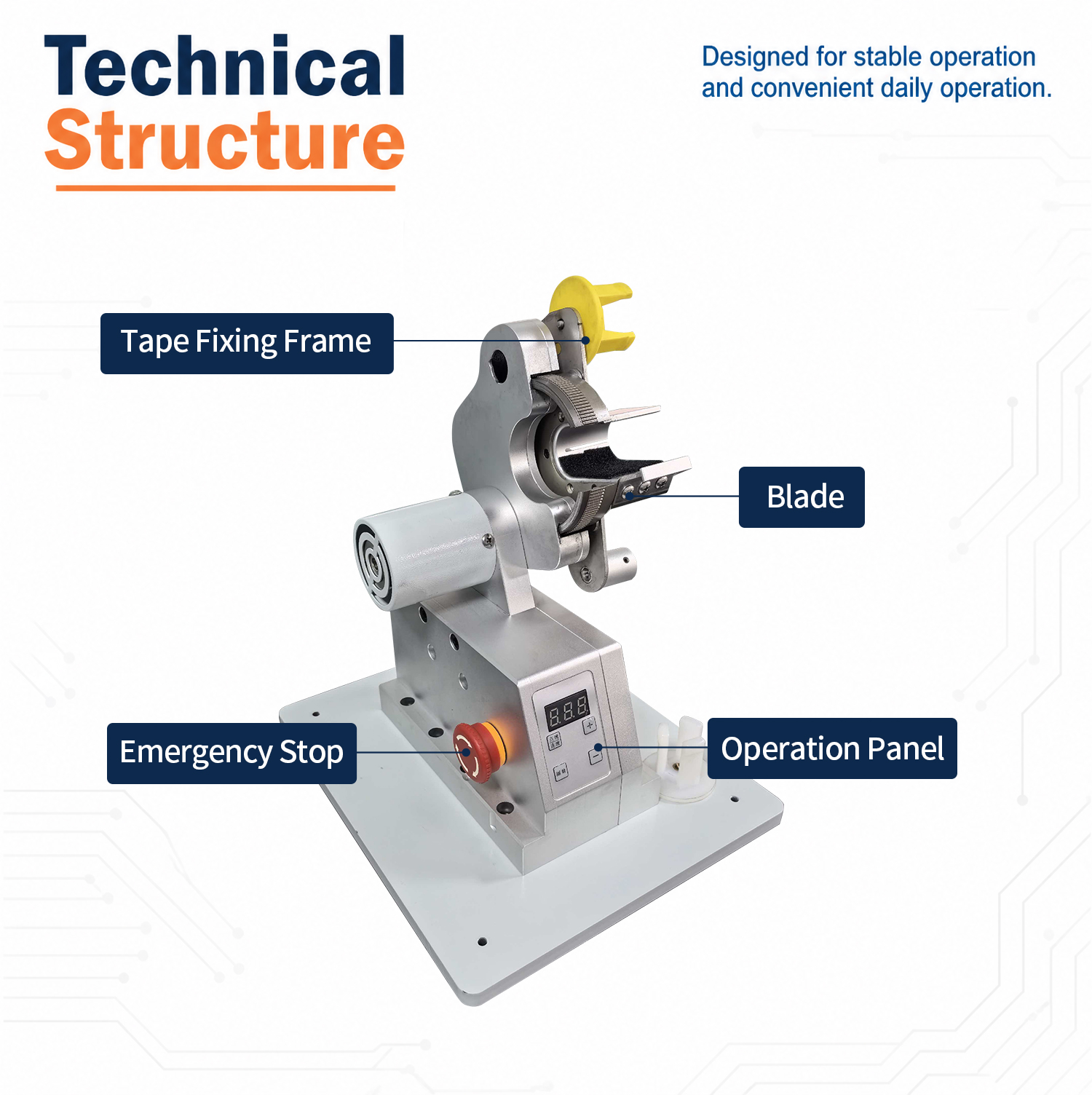

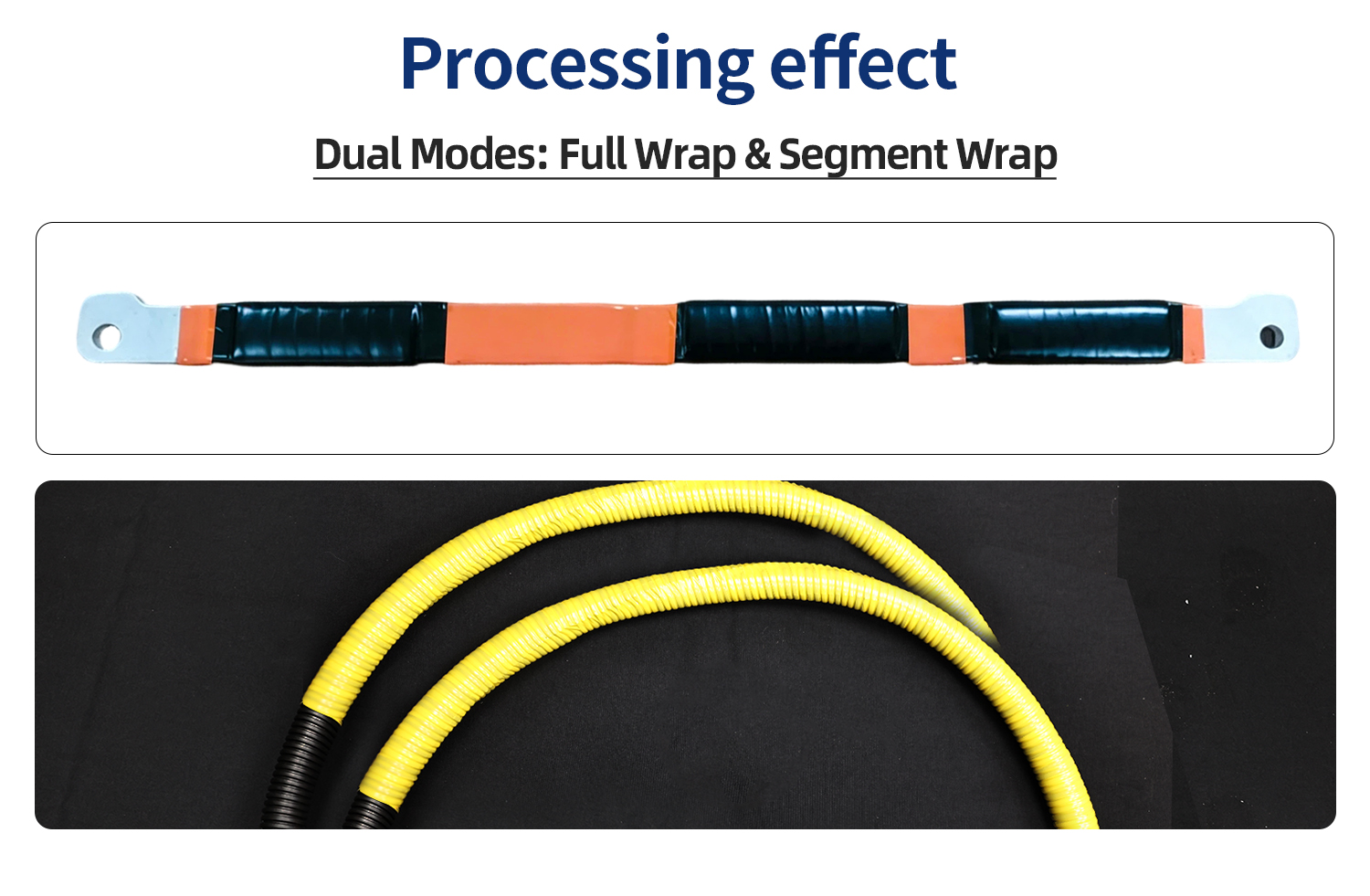

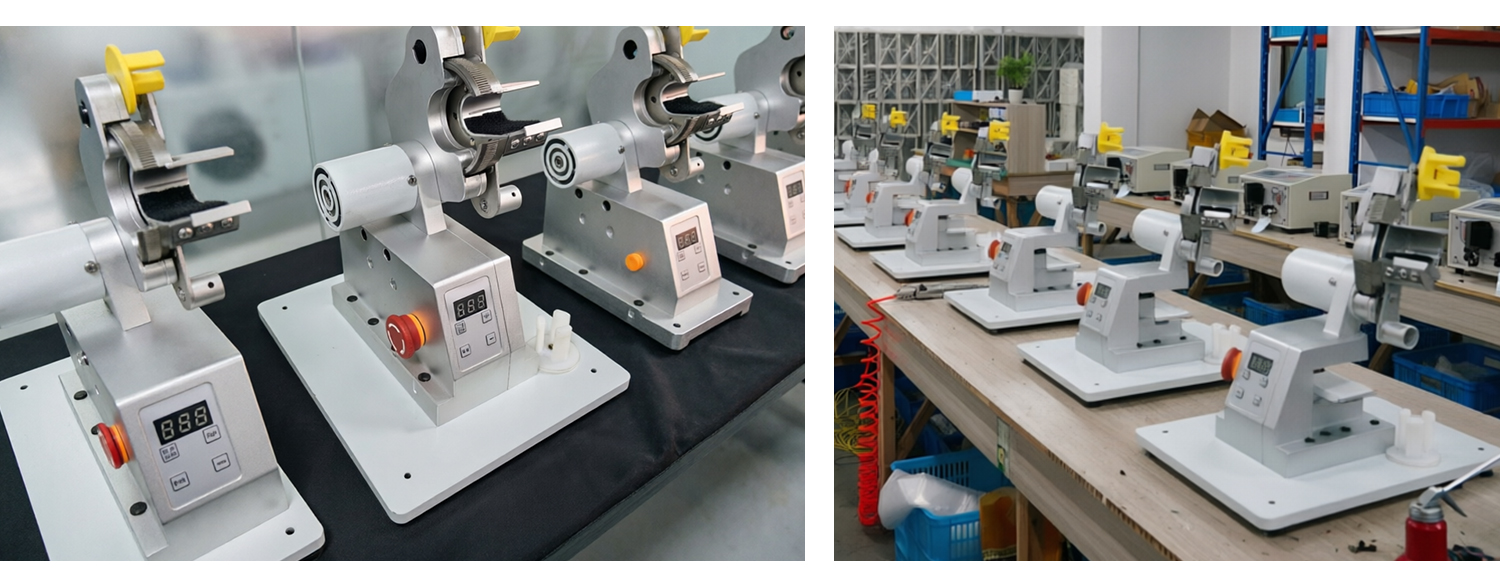

TR-25W Small Tape Winding Machine — detail 1

TR-25W Small Tape Winding Machine — detail 2

TR-25W Small Tape Winding Machine — detail 3

TR-25W Small Tape Winding Machine — detail 4

TR-25W Small Tape Winding Machine — detail 5

TR-25W Small Tape Winding Machine — detail 6

TR-25W Small Tape Winding Machine — detail 7

TR-25W Small Tape Winding Machine — detail 8

TR-25W Small Tape Winding Machine — detail 9

TR-25W Small Tape Winding Machine — detail 10

TR-25W Small Tape Winding Machine — detail 11

TR-25W Small Tape Winding Machine — detail 12

TR-25W Small Tape Winding Machine — detail 13

TR-25W Small Tape Winding Machine — detail 14

Services Around the Machine

Free sample testYour wire, our machine — video proof before you pay.

Setup guidanceRemote commissioning support included with every order.

12-month warrantyPlus spare-parts support and calibration advice.

Options & toolingCustom dies and accessories made to your terminal.

See All FAQs Browse Custom Tooling

Custom Machine Program

From Your Wire to a Working Machine

Machines are configured around your wire range and terminals — this is how we de-risk it before you pay.

01Send SamplesYour wire and terminals — free evaluation, no commitment.

02Free Test + VideoWe run your sample on the machine and send the video proof.

03Config & QuoteConfiguration, options and FOB quote confirmed within 24 h.

04Build & Run-in TestEvery machine is built and run-in tested 100% before packing.

05QC Video & ShipFinal QC video before packing — sea, air or express dispatch.

Custom dies per drawing Spare parts reorder Remote setup supportStart With Your Samples

Application Note

Which materials it handles, which lines it fits — in the context of your application.

View Application Solution

Free Sample Test

Send your wire and terminals — we run the test on our machine and return the video.

Indicative lead time: On request

Request a Test

Custom dies & tooling Service & support plan Full datasheet library Compare with other models

Why Buy Direct From Turingnex

Applied Industries

Automotive & MotorcycleWiring harness lines

New Energy & EVHigh-voltage & battery cables

Home ApplianceInternal wiring production

ElectronicsConnector & cable assemblies

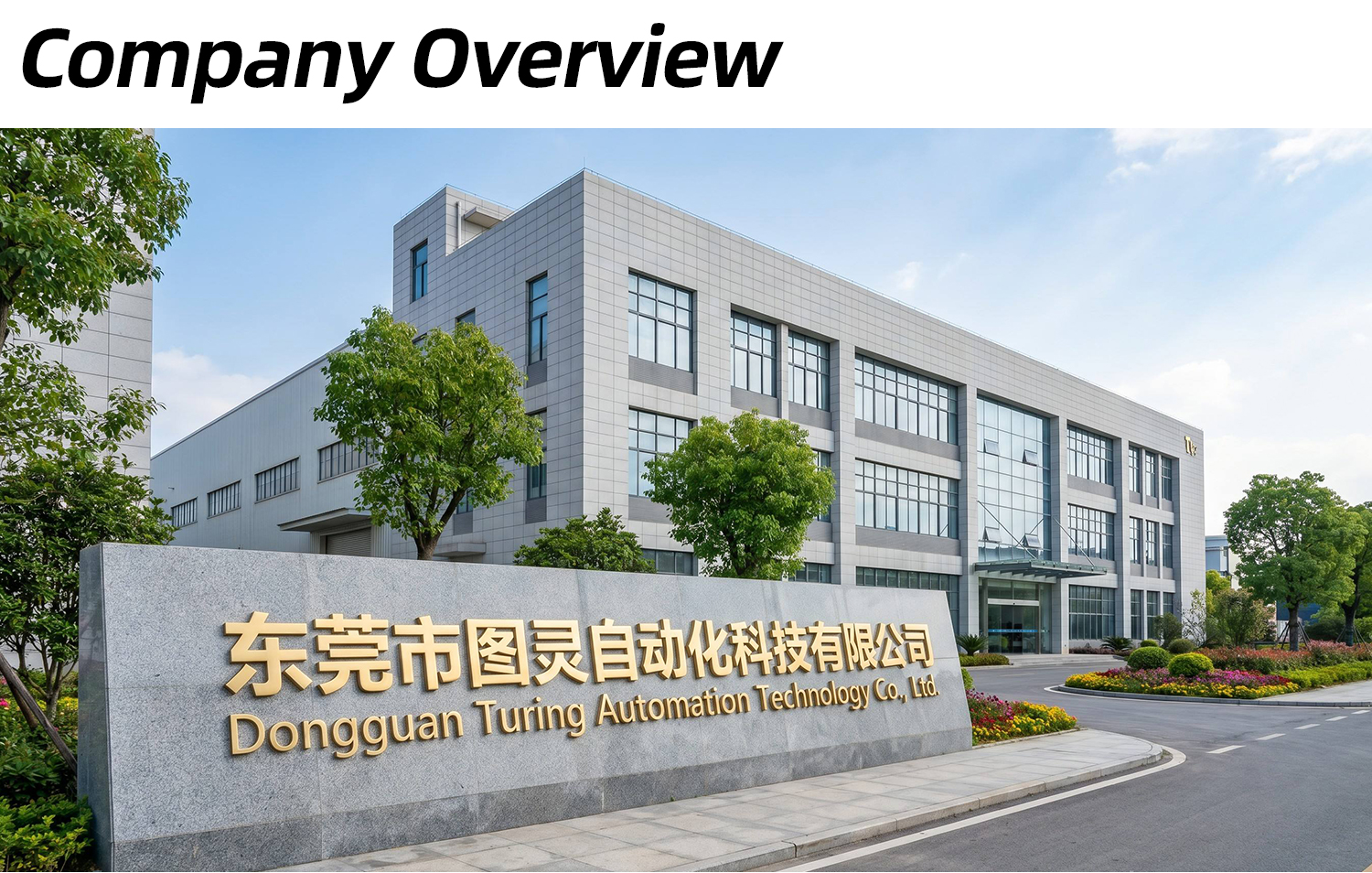

20,000㎡Factory area, Dongguan
