Highlights
Stable & Superior Processing Precision
Cutting tolerance ≤0.2mm + 0.2% of cutting length; adjustable stripping length, 2.0T crimping force, ensuring consistent harness quality.

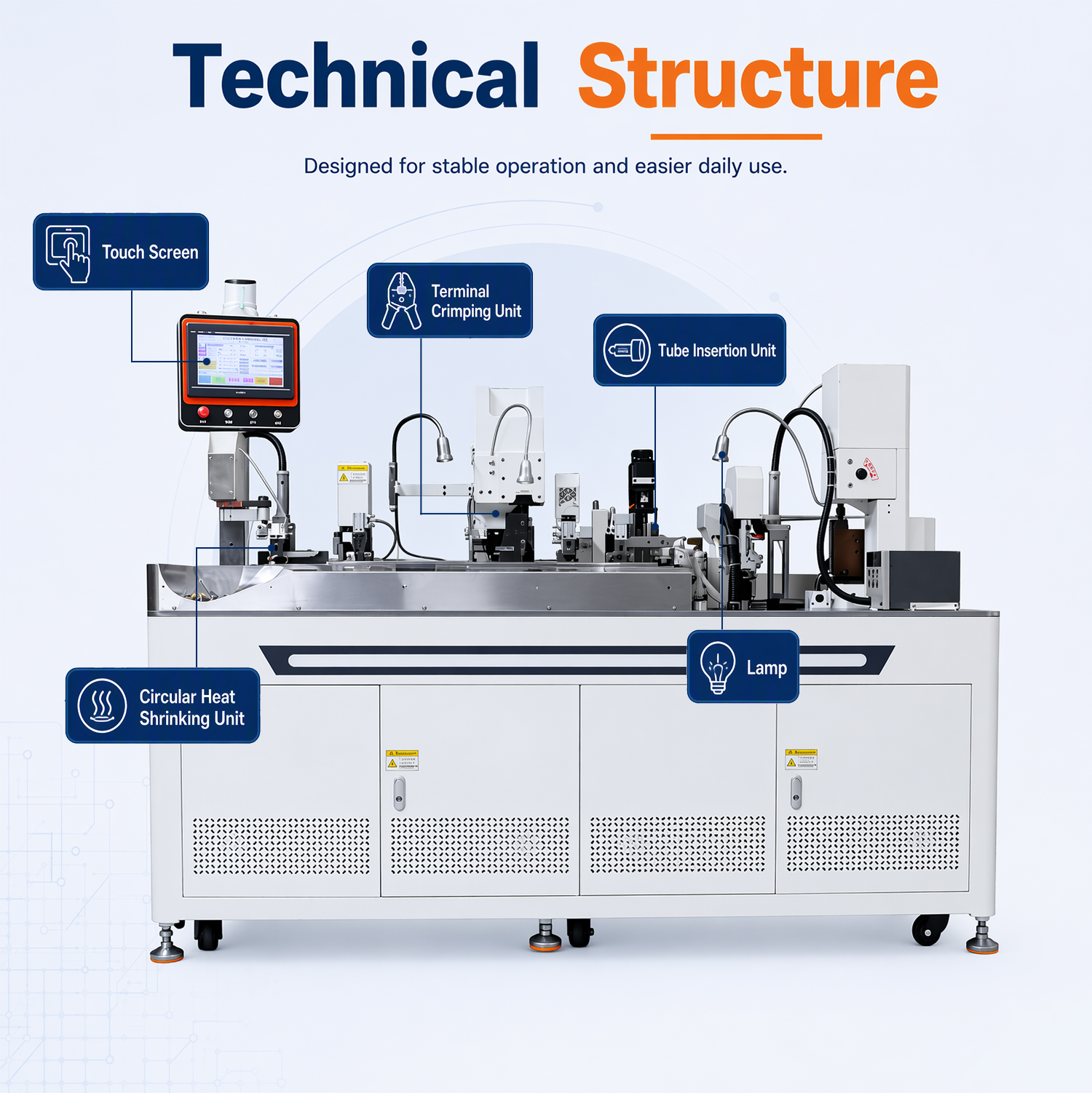

All-in-one Integrated Processing

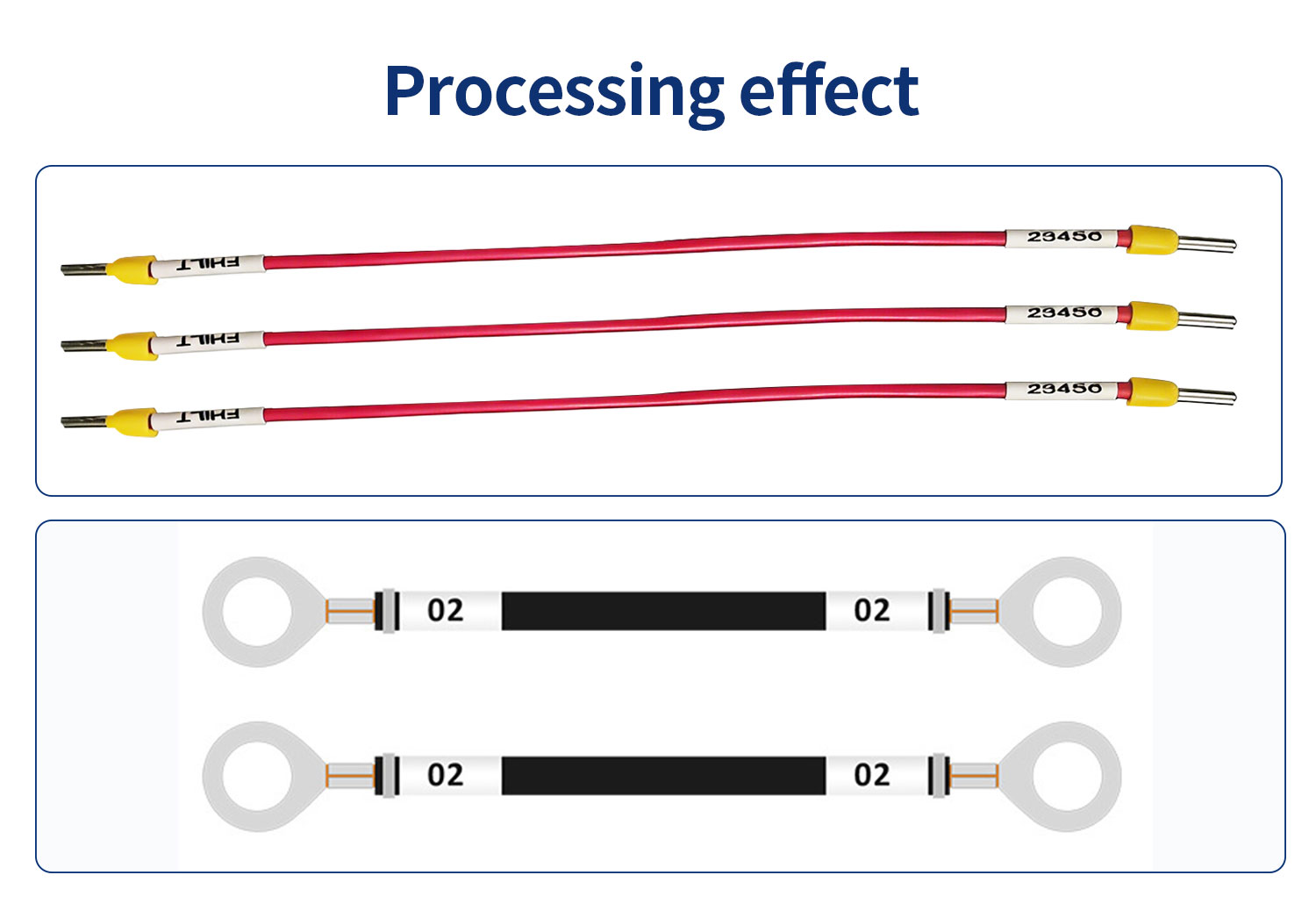

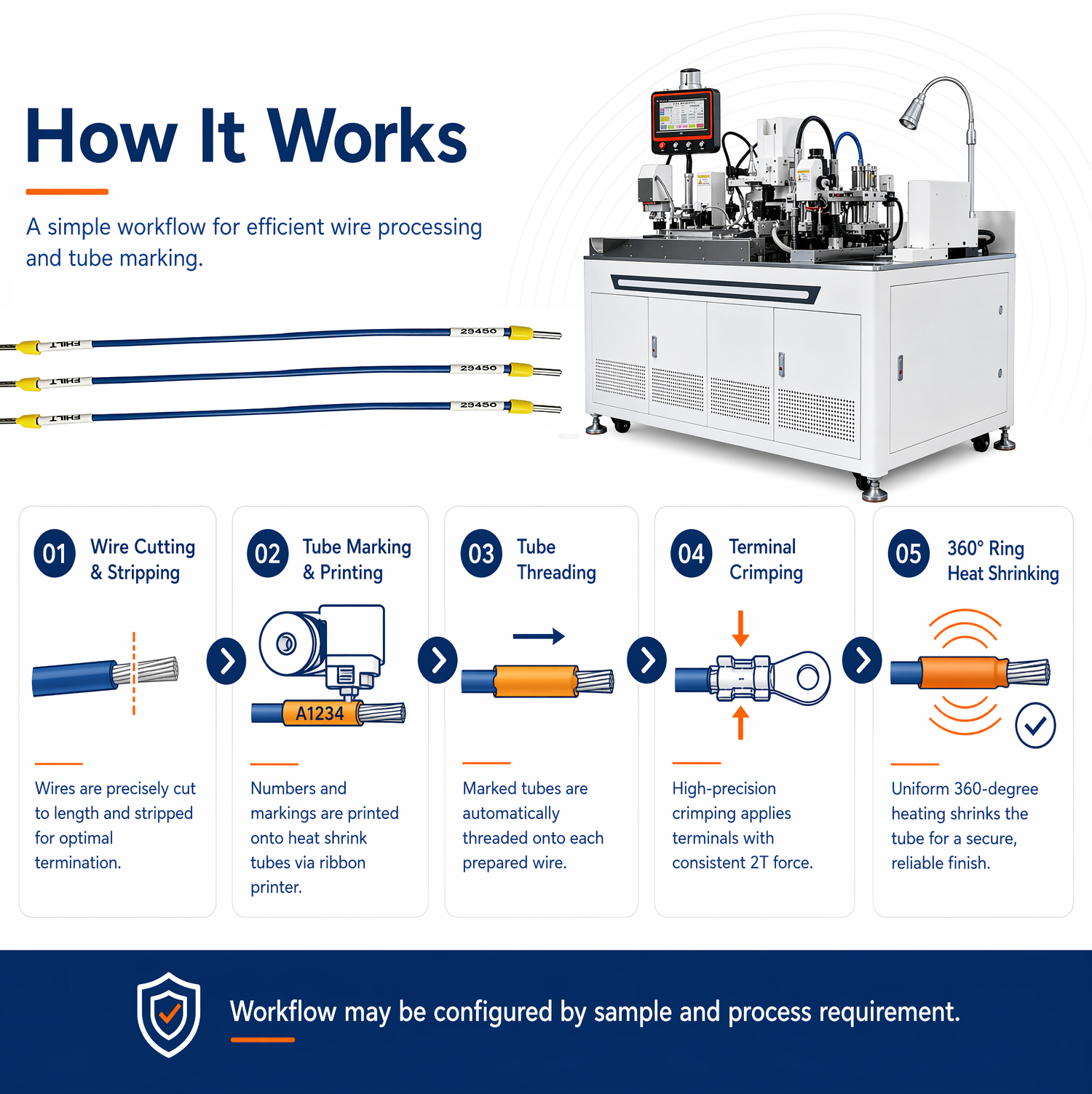

Completes full procedures automatically: wire cutting, stripping, double-end terminal crimping, marking tube threading and 360° circular heat shrinking.
Multi-inspection for High Yield Rate
Equipped with fiber optic inspection and optional CCD visual detection to automatically reject missing terminals and defective crimping products.
Wide Wire Compatibility
Covers wire gauge AWG22# to AWG14#, cutting length adjustable from 66mm to 99999mm, ideal for automotive, home appliance wiring harnesses.
Gentle Wire Protection Technology

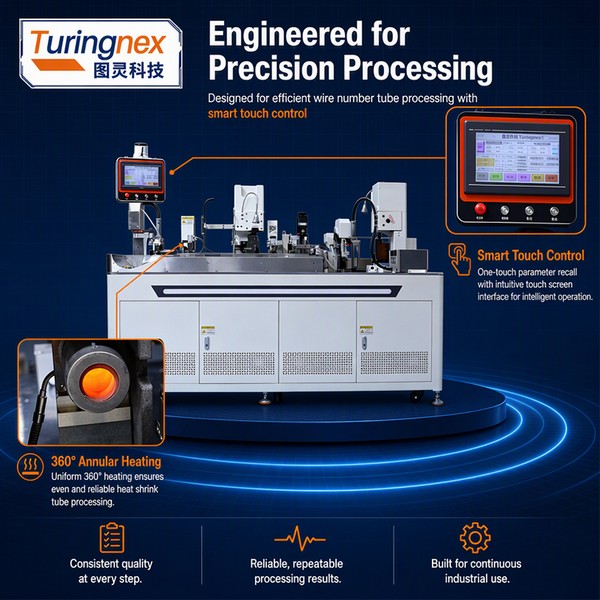

Precise marking tube threading avoids wire insulation damage and wire fraying; 360° circular heating ensures even heat shrinkage with neat appearance.

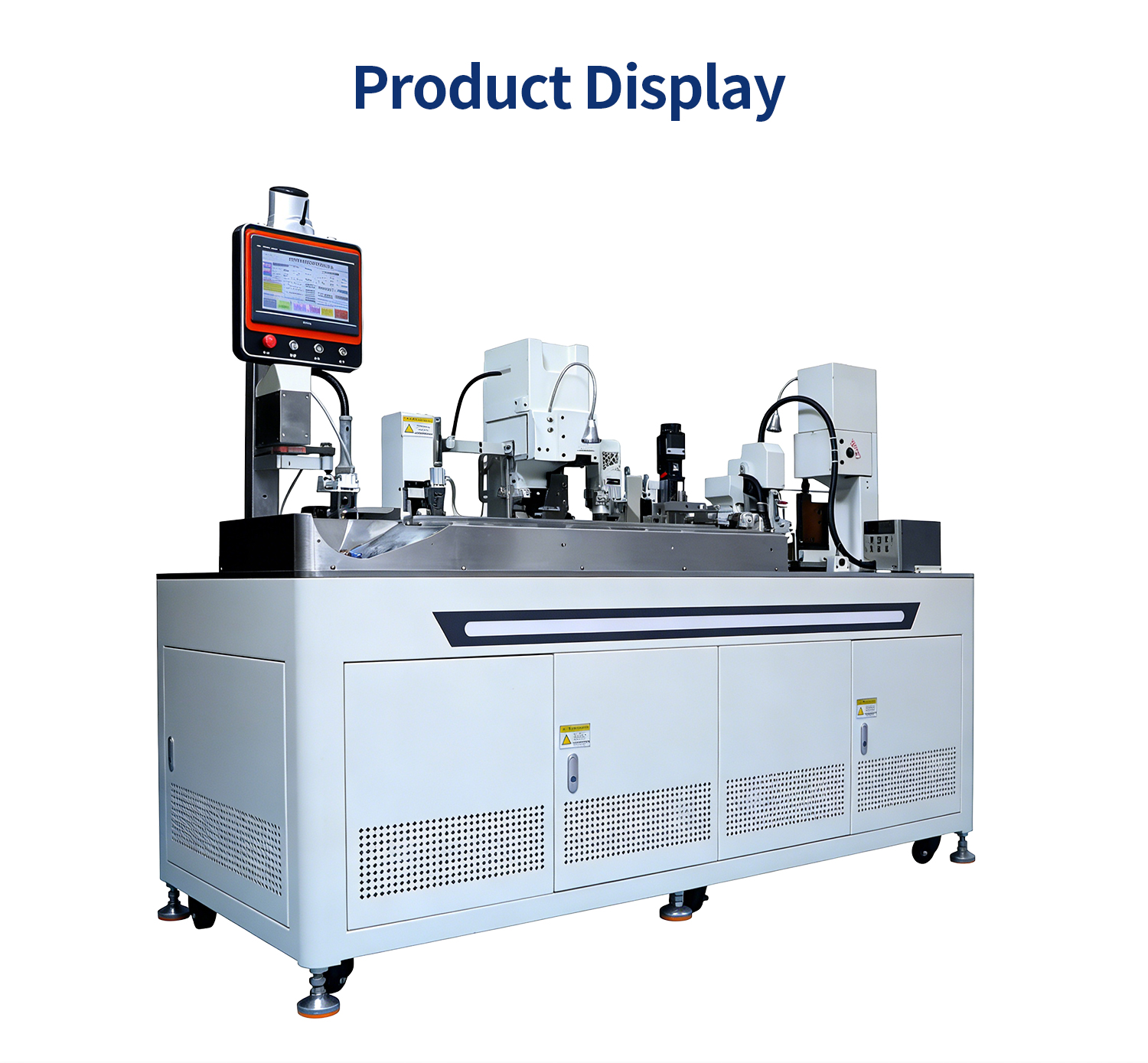

TR-2525 in Operation
Full Specifications
Technical Data
| Model | TR-2525 |
| Power | AC220V 50/60Hz 20A |
| Application | wire cutting, stripping, terminal crimping |
| Cutting-length | 66~99999mm |
| Contact | Coco : +86 18666170785 |

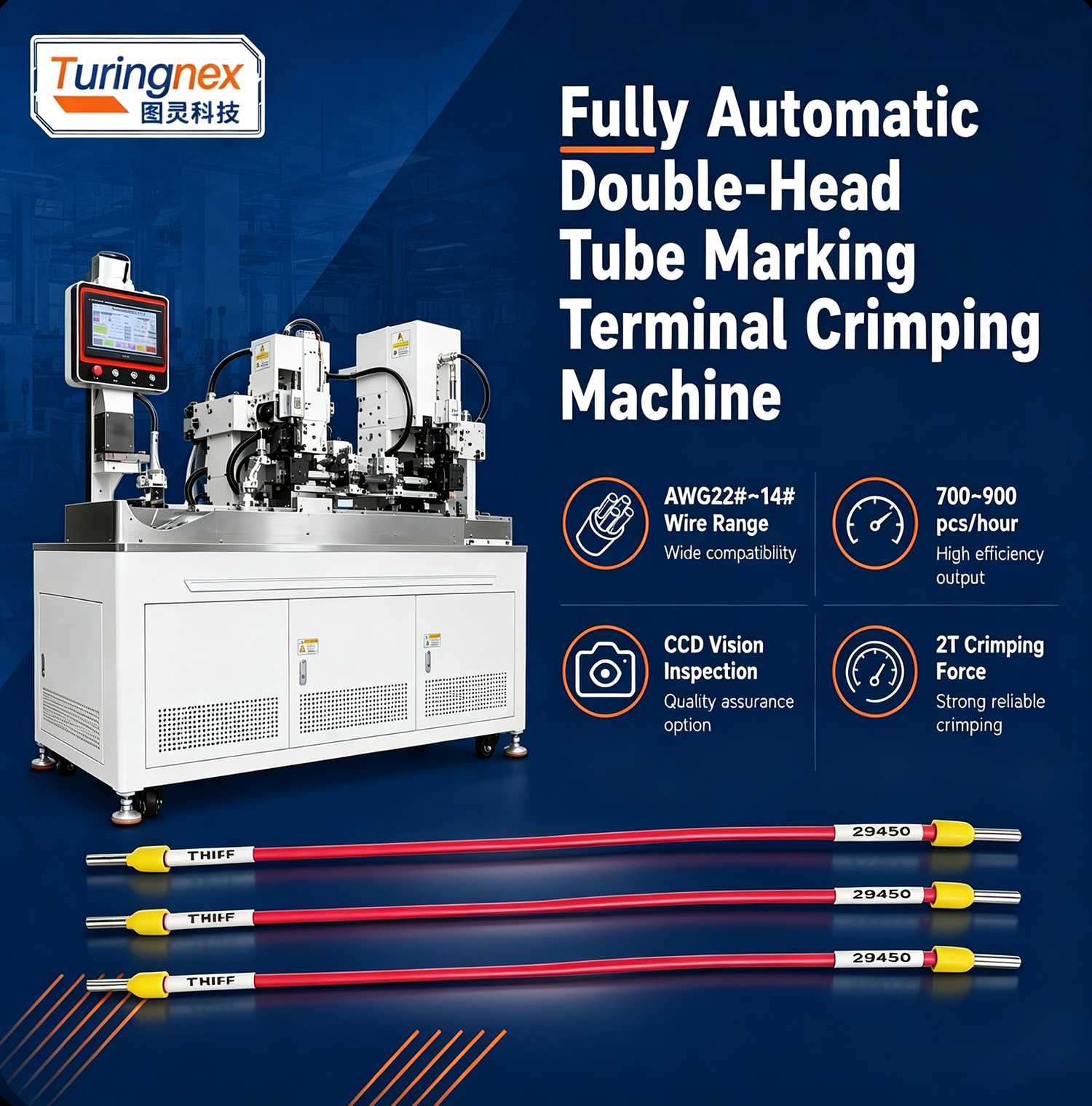

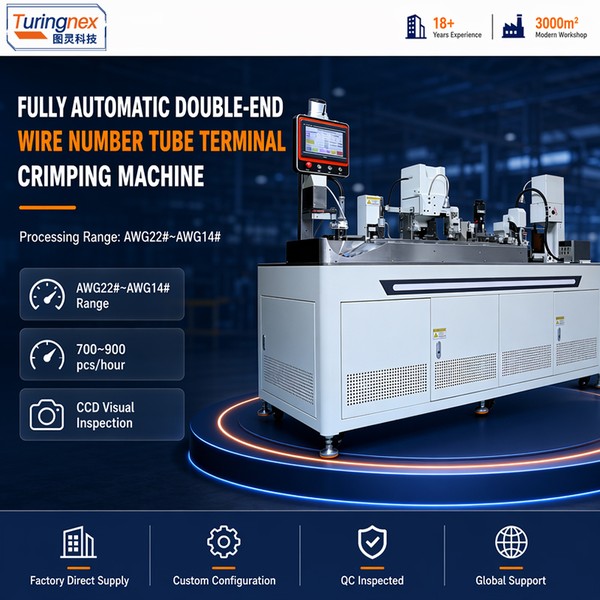

| Equipment-name | TR-2525 Fully Automatic Double-End Wire Number Tube Terminal Crimping Machine |
| Processing-range | AWG22#~AWG14# |
| Size-&-weight | 800x1800x1800mm，800kg |
| Stripping-length | Front: 0.5~8mm; Rear: 0.1~10mm |
| Cutting-accuracy | 2.0T |
| Production-efficiency | 700~900 pcs/hour (for wire length 80~150mm) |
| Optional-mold | 30mm or 40mm |
| Air-pressure | 0.4~0.6MPa (clean, dry air) |
| Optional | CCD Visual Inspection |
| Terminal compatibility |
Ordering Information
| Certification | CE — ISO9001 factory — certificates on request |
| MOQ | 1 set |
| Price (FOB, indicative) | Quote on request |
| Lead time | Standard models in stock; customised 7–15 days |
| Payment | T/T 30% deposit + 70% before shipment |
| Warranty | Standard warranty — terms confirmed in sales contract |
| Free trial | Free crimp test with your wire & terminals |
Specifications are indicative and confirmed with your order. Custom configurations available.
Features & Details
- Cutting tolerance ≤0.2mm + 0.2% of cutting length; adjustable stripping length, 2.0T crimping force, ensuring consistent harness quality.
- Completes full procedures automatically: wire cutting, stripping, double-end terminal crimping, marking tube threading and 360° circular heat shrinking.

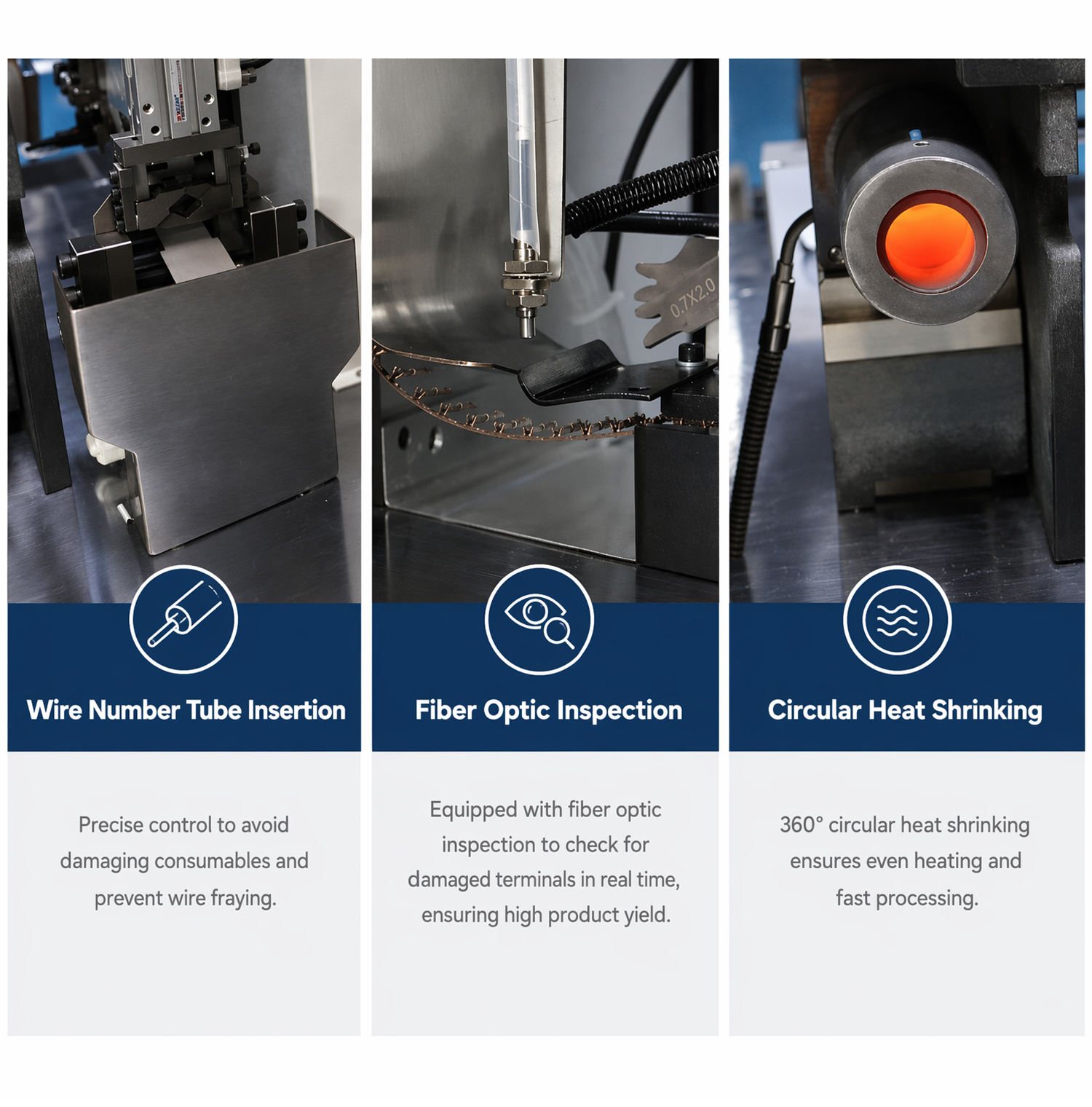

- Equipped with fiber optic inspection and optional CCD visual detection to automatically reject missing terminals and defective crimping products.
- Covers wire gauge AWG22# to AWG14#, cutting length adjustable from 66mm to 99999mm, ideal for automotive, home appliance wiring harnesses.
- Precise marking tube threading avoids wire insulation damage and wire fraying; 360° circular heating ensures even heat shrinkage with neat appearance.
- TR-2525 Fully Automatic Double-End Wire Number Tube Terminal Crimping Machine
Services Around the Machine
From Your Wire to a Working Machine
Machines are configured around your wire range and terminals — this is how we de-risk it before you pay.
Application Note
Which materials it handles, which lines it fits — in the context of your application.
View Application SolutionFree Sample Test
Send your wire and terminals — we run the test on our machine and return the video.
Indicative lead time: On request
Request a TestWhy Buy Direct From Turingnex

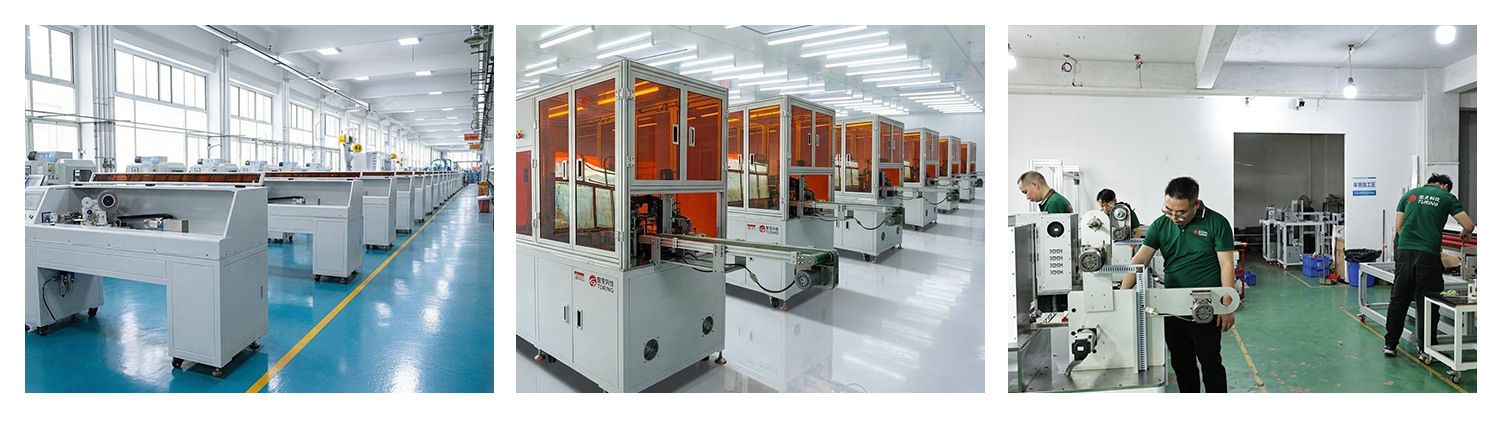

Factory Direct
One factory in Dongguan, one engineer per inquiry — 24h quotes, no middlemen.
Certified & Protected
CE certification, ISO9001 quality system, Alibaba Trade Assurance available.
Test Before You Buy
Free crimp test on your wire and terminals — quality verified before you commit.
Packing & Delivery
- Export-grade packing: wooden case / carton with foam protection
- Sea, air or express shipping — tracking provided
- QC photos & videos sent before packing
- Spare dies and consumables available for reorder
