TR-1604

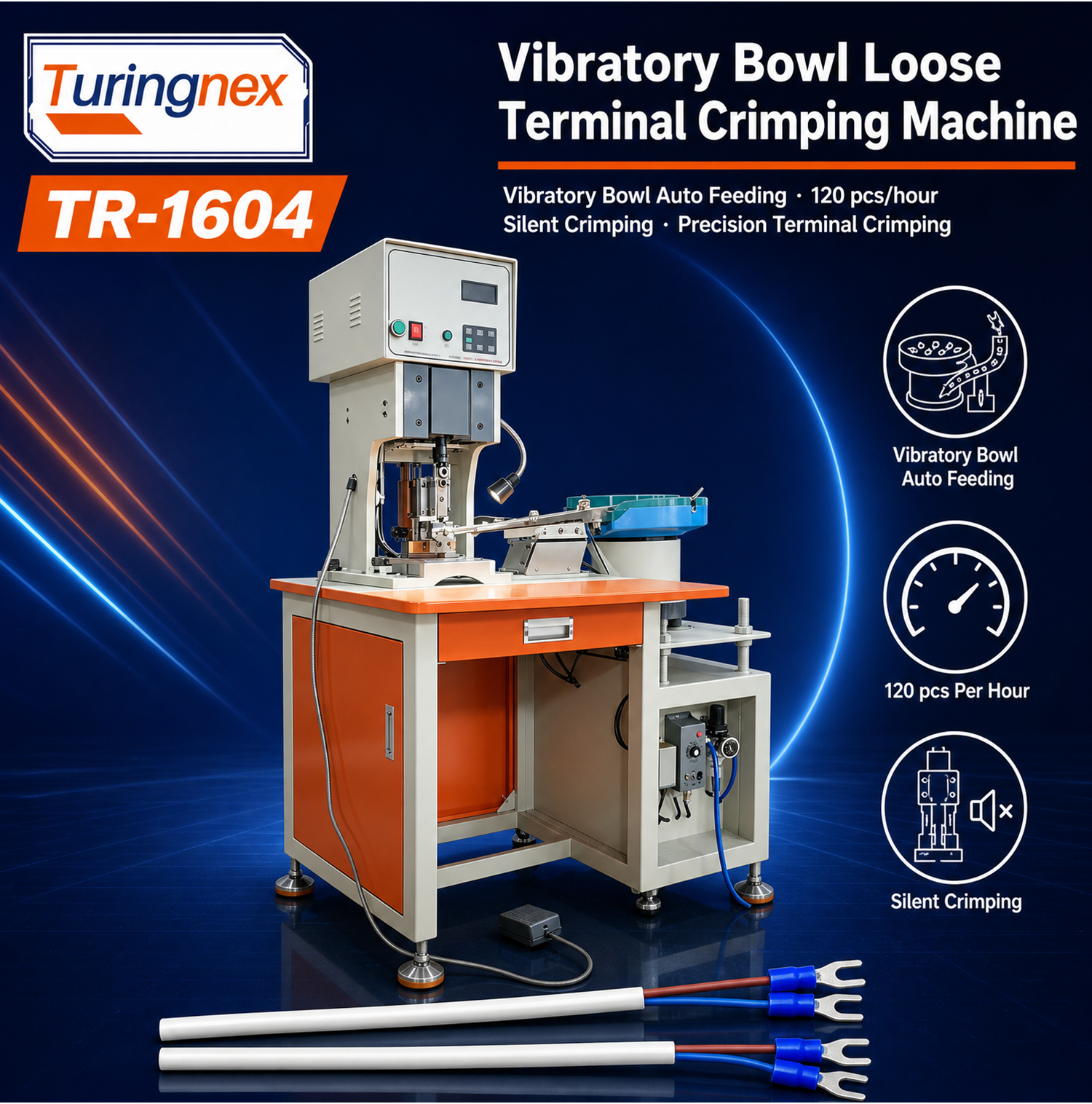

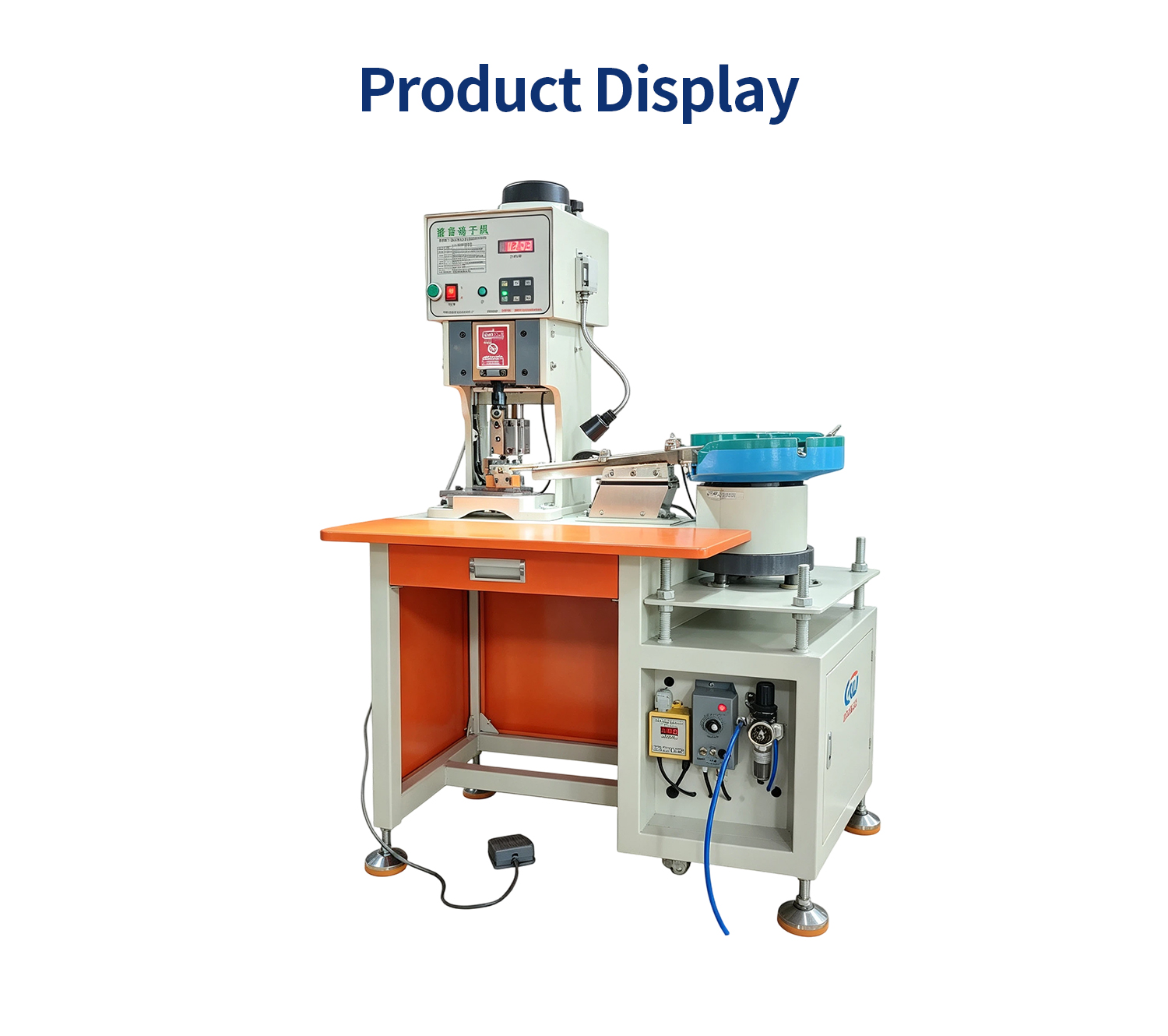

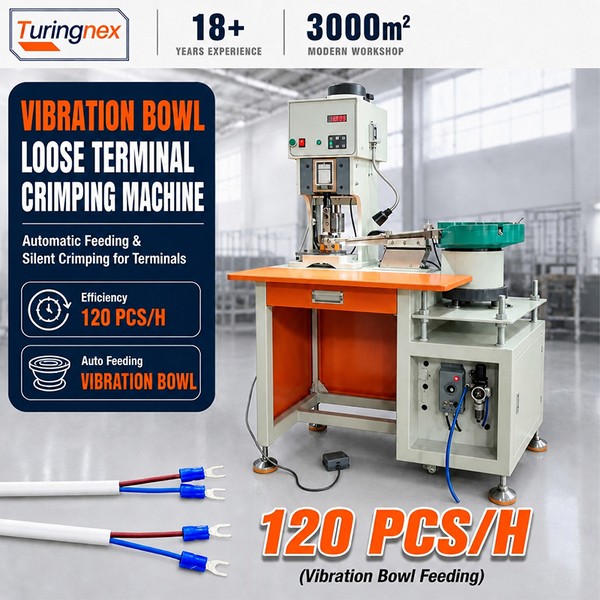

TR-1604 Vibration Plate Bulk Terminal Crimping Machine

TR-1604 Vibration Plate Bulk Terminal Crimping Machine: Power AC220V/50HZ,; application Bulk Terminal Crimping Machine with Vibrating Tray; feature Stable Performance.

Request QuotationWatch VideoDownloads
Quote on requestFOB · MOQ 1 set · final price confirmed at quotation
Power: AC220V/50HZ,Application: Bulk Terminal Crimping Machine with Vibrating TrayFeature: Stable PerformanceWarranty: 1yearContact: Lily 0086-13715588365Slider-stroke: 35MM(40MM)
  • TR-1604 Vibration Plate Bulk Terminal Crimping Machine
  • Automatic sorting for loose terminals, waste‑free operation
  • Silent main unit, smooth feeding without jamming, high productivity
CE CertifiedFactory Direct Price12-Month Warranty24h Quote ResponseTested Before ShipmentFree Sample Test Video
10,000+ Machines installed worldwide50+ Export countries

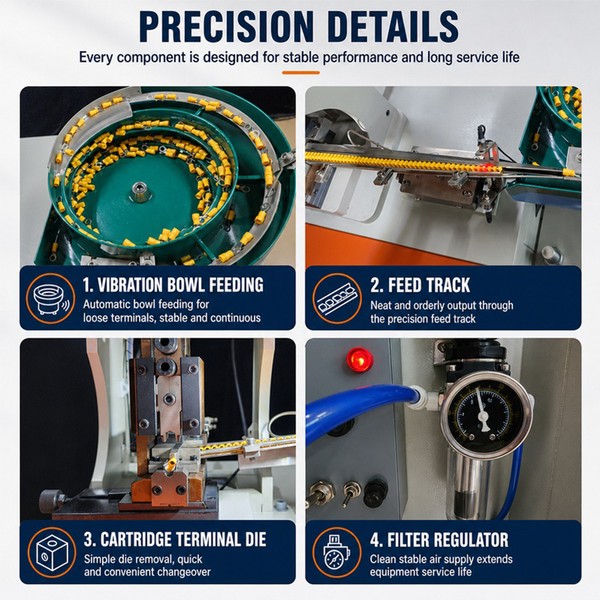

Highlights

01

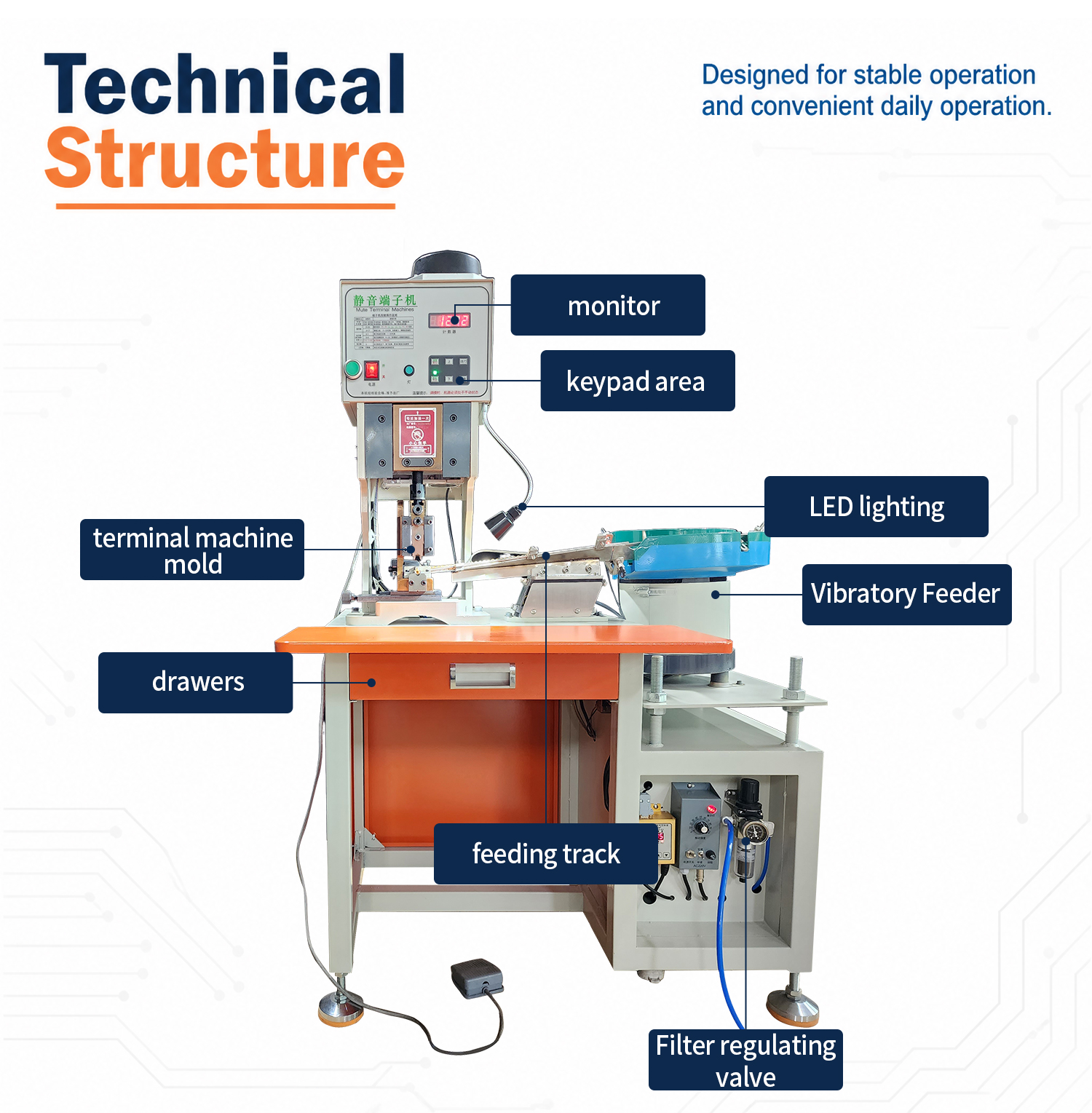

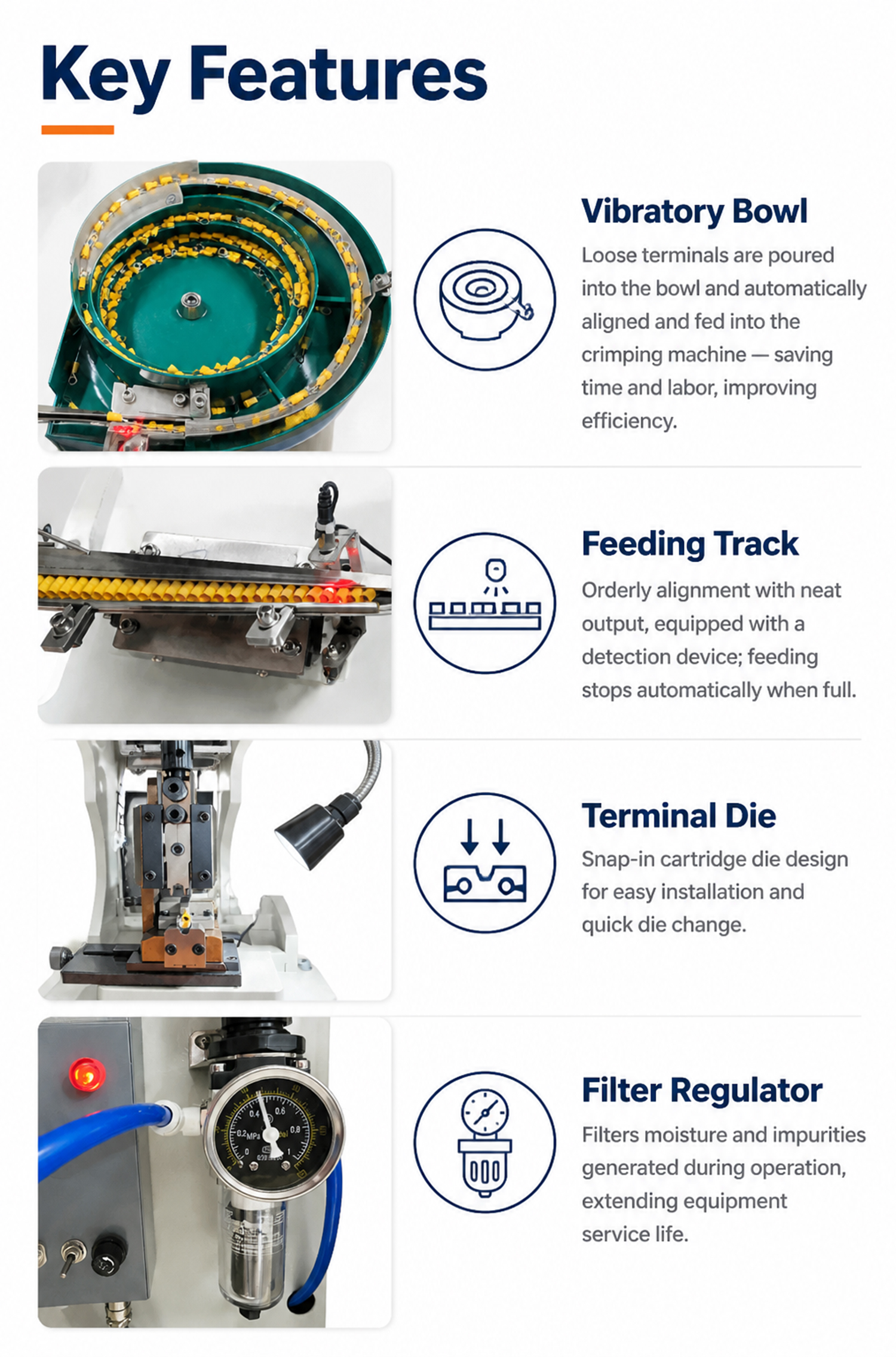

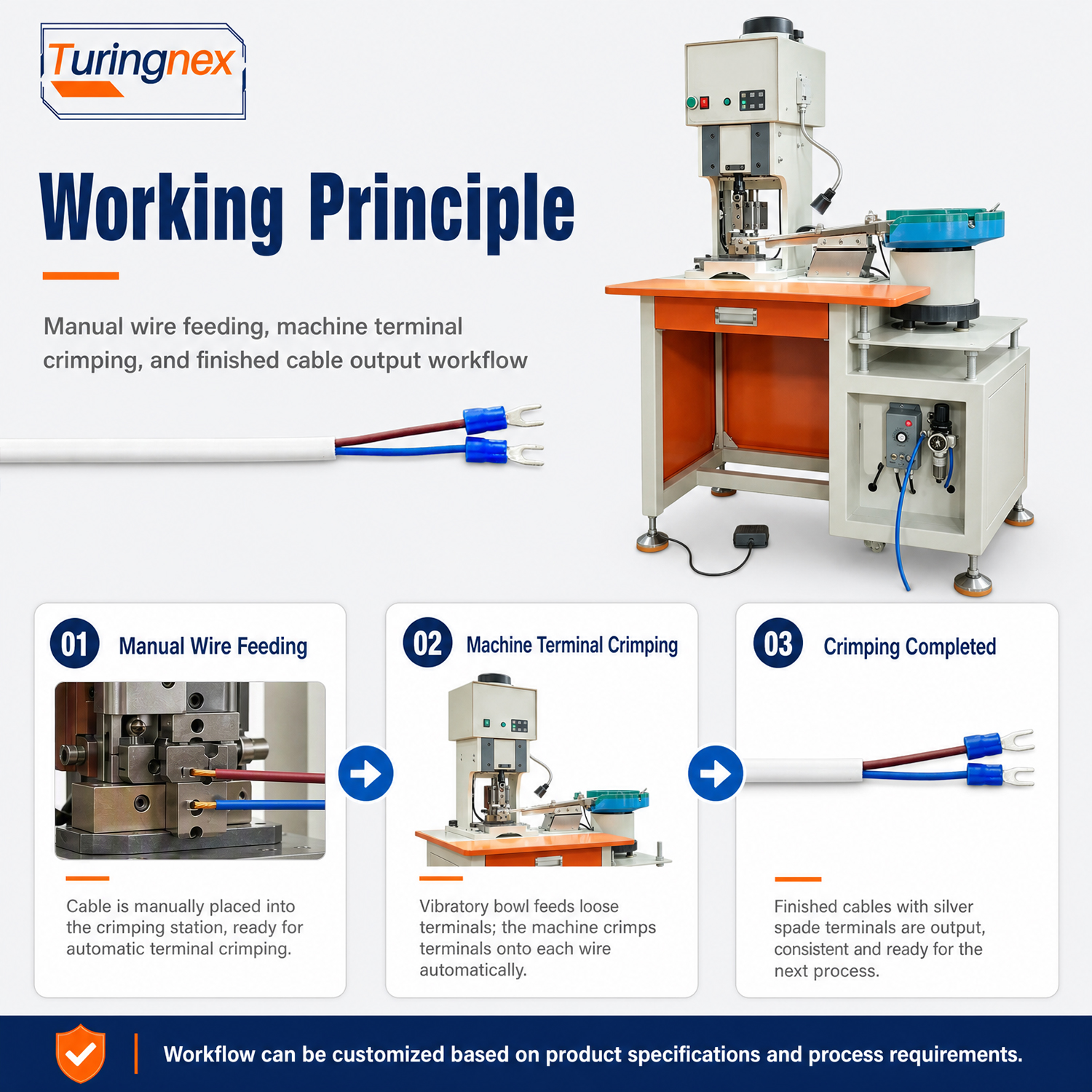

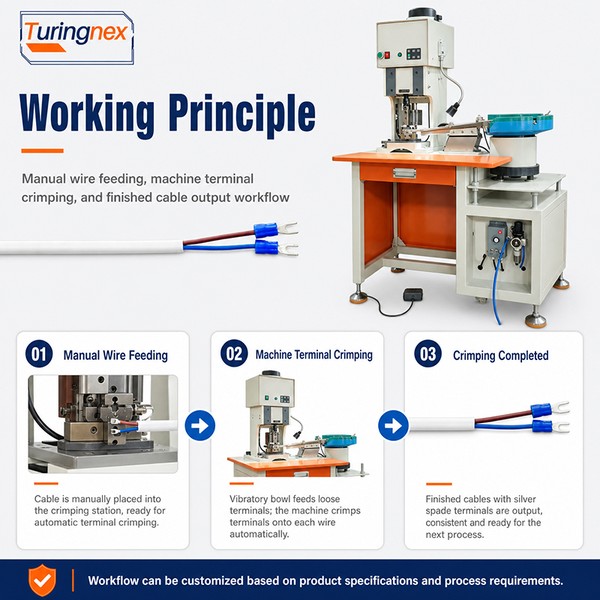

Vibratory Bowl Auto‑Feeding

Automatic sorting for loose terminals, waste‑free operation

02

Low‑Noise Crimping & Anti‑Jamming

Silent main unit, smooth feeding without jamming, high productivity

03

Speed‑Adjustable Segmented Feeder

Freely adjustable feeding speed for stable material transport

04

Quick‑Change Cassette‑Style Die

Easy disassembly & replacement, save model‑switching time

05

Air Pressure Stabilization System

Equipped with filter pressure regulator for steady air supply & consistent crimp quality

06

HD Digital Display & Easy Operation

Large‑screen control panel, intuitive parameter setting, user‑friendly

Machine Video

TR-1604 in Operation

TR-1604 Vibration Plate Bulk Terminal Crimping Machine in operation

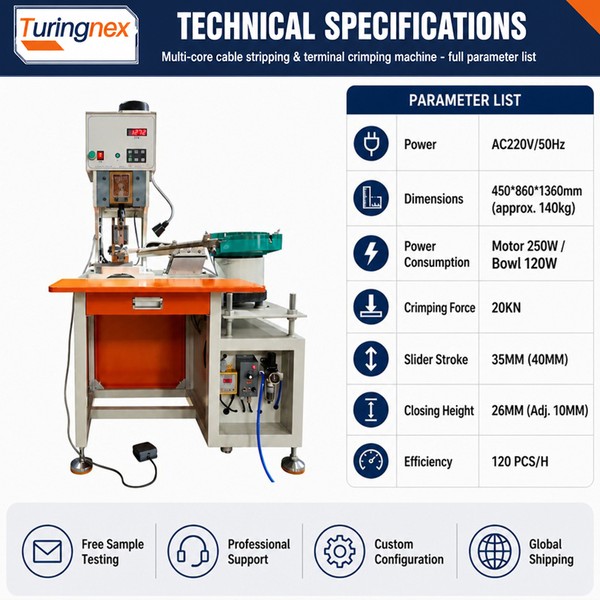

Full Specifications

Technical Data

ModelTR-1604
PowerAC220V/50HZ,
ApplicationBulk Terminal Crimping Machine with Vibrating Tray
FeatureStable Performance
Warranty1year
ContactLily 0086-13715588365
Slider-stroke35MM(40MM)
Pressing-times120 times/H
Closed-height26MM
Equipment-nameTR-1604 Vibratory Bowl Loose‑Terminal Crimping Machine
Power-supplyAC220V/50Hz
Power-consumptionMotor: 250W, Vibratory Feeder: 120W
Crimping-force20KN
Slide-stroke35mm (40mm)
Crimping-frequency120 cycles/h
Shut-height26mm
Shut‑height-adjustment10mm
Dimension-&-weight450*860*1360(mm)，Approx. 140kg
Terminal compatibility

Ordering Information

CertificationCE — ISO9001 factory — certificates on request
MOQ1 set
Price (FOB, indicative)Quote on request
Lead timeStandard models in stock; customised 7–15 days
PaymentT/T 30% deposit + 70% before shipment
WarrantyStandard warranty — terms confirmed in sales contract
Free trialFree crimp test with your wire & terminals

Specifications are indicative and confirmed with your order. Custom configurations available.

Services Around the Machine

Free sample testYour wire, our machine — video proof before you pay.
Setup guidanceRemote commissioning support included with every order.
12-month warrantyPlus spare-parts support and calibration advice.
Options & toolingCustom dies and accessories made to your terminal.
See All FAQsBrowse Custom Tooling
Custom Machine Program

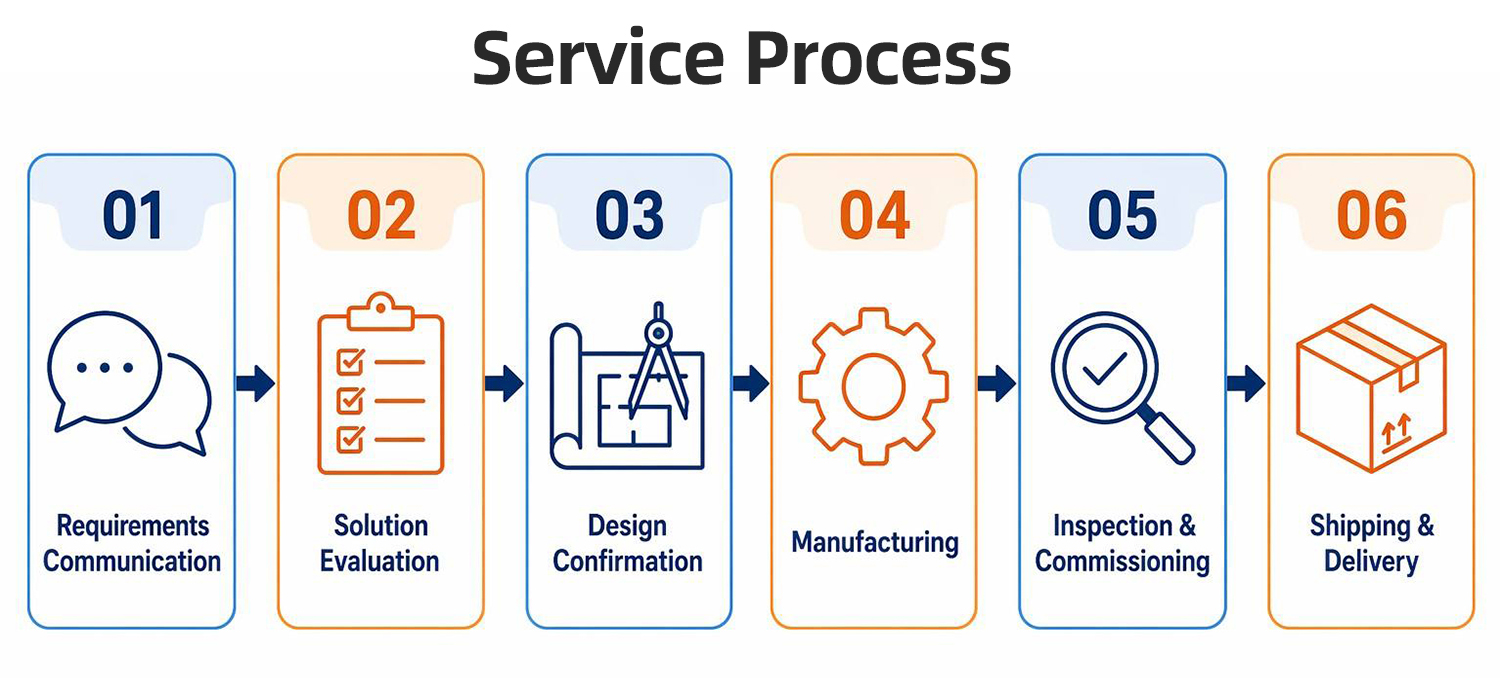

From Your Wire to a Working Machine
