TR-001

TR-001 Fully Electric Push-Type Tape Winding Machine

Name: TR-001 Fully Electric Push-Type Tape Winding Machine
Brand: Turingnex
SKU: TR-001
Availability: InStock

TR-001 Fully Electric Push-Type Tape Winding Machine: 1200 pcs/h, ~2.5 seconds per point; power 220V 50Hz; application Single Point Tape Wrapping Machine.

Request Quotation Watch Video Downloads

Quote on requestFOB · MOQ 1 set · final price confirmed at quotation

Power: 220V 50HzApplication: Single Point Tape Wrapping MachineFeature: Stable PerformanceFunction: Automatic Tape Winding MachineContact-person: Coco:0086 18666170785Equipment-name: TR-001 Fully Electric Push-Type Tape Winding Machine

Equipped with 5 stepper motors and single‑chip microcomputer control. No external air compressor required for easy installation and operation.
Tape length and winding turns are configurable. Tape overlap accuracy reaches 0.2mm for consistent winding performance.
Single‑point processing takes around 2.5 seconds with output up to 1200pcs per hour, improving wire harness production capacity.

CE CertifiedFactory Direct Price12-Month Warranty24h Quote ResponseTested Before ShipmentFree Sample Test Video

10,000+ Machines installed worldwide50+ Export countries

Highlights

01

Fully‑electric design without air source

Equipped with 5 stepper motors and single‑chip microcomputer control. No external air compressor required for easy installation and operation.

02

Adjustable parameters

Tape length and winding turns are configurable. Tape overlap accuracy reaches 0.2mm for consistent winding performance.

03

High working efficiency

Single‑point processing takes around 2.5 seconds with output up to 1200pcs per hour, improving wire harness production capacity.

04

Wide compatibility

Processes workpieces with outer diameter of 1‑10mm, compatible with 20‑40mm wide tape. Supports electrical tape, acetate tape, PVC tape, fabric‑based and flocking‑based tapes. Isolation paper rewinding function is available.

05

Premium hardware configuration

5‑inch touch‑screen operation, HIWIN linear guides and Mean Well switching power supply for high durability and reliability.

06

Compact footprint

Overall dimension 400mm × 400mm × 350mm, gross weight approx. 33kg. Occupies little floor space and easy for workshop layout.

Machine Video

TR-001 in Operation

TR-001 Fully Electric Push-Type Tape Winding Machine in operation

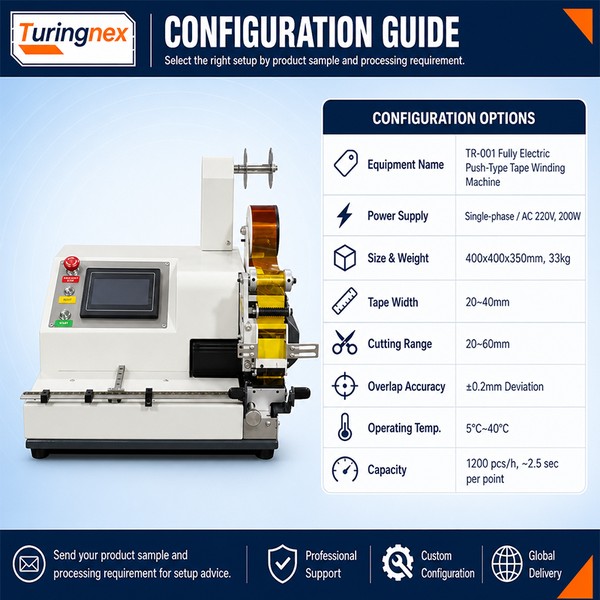

Full Specifications

Technical Data

Model	TR-001
Power	220V 50Hz
Application	Single Point Tape Wrapping Machine
Feature	Stable Performance
Function	Automatic Tape Winding Machine
Contact-person	Coco:0086 18666170785
Equipment-name	TR-001 Fully Electric Push-Type Tape Winding Machine
Size	L2400mm × W850mm × H1600mm
Size-&-weight	400x400x350mm，33kg
Tape-width	20~40mm
Tape-length-cutting-range	20~60mm
Tape-overlap-accuracy	±0.2mm Deviation
Operating-temperature	5℃~40℃
Capacity	1200 pcs/h, ~2.5 seconds per point
Applicable-tapes	Electrical tape, acetate tape, PVC tape, fabric-based tape, fleece-based tape, etc.
Functions	1. Automatic cutting and wrapping; 2. Adjustable tape length and wrapping loops
Terminal compatibility

Ordering Information

Certification	CE — ISO9001 factory — certificates on request
MOQ	1 set
Price (FOB, indicative)	Quote on request
Lead time	Standard models in stock; customised 7–15 days
Payment	T/T 30% deposit + 70% before shipment
Warranty	Standard warranty — terms confirmed in sales contract
Free trial	Free crimp test with your wire & terminals

Specifications are indicative and confirmed with your order. Custom configurations available.

Features & Details

Equipped with 5 stepper motors and single‑chip microcomputer control. No external air compressor required for easy installation and operation.
Tape length and winding turns are configurable. Tape overlap accuracy reaches 0.2mm for consistent winding performance.
Single‑point processing takes around 2.5 seconds with output up to 1200pcs per hour, improving wire harness production capacity.
Processes workpieces with outer diameter of 1‑10mm, compatible with 20‑40mm wide tape. Supports electrical tape, acetate tape, PVC tape, fabric‑based and flocking‑based tapes. Isolation paper rewinding function is available.
5‑inch touch‑screen operation, HIWIN linear guides and Mean Well switching power supply for high durability and reliability.
Overall dimension 400mm × 400mm × 350mm, gross weight approx. 33kg. Occupies little floor space and easy for workshop layout.

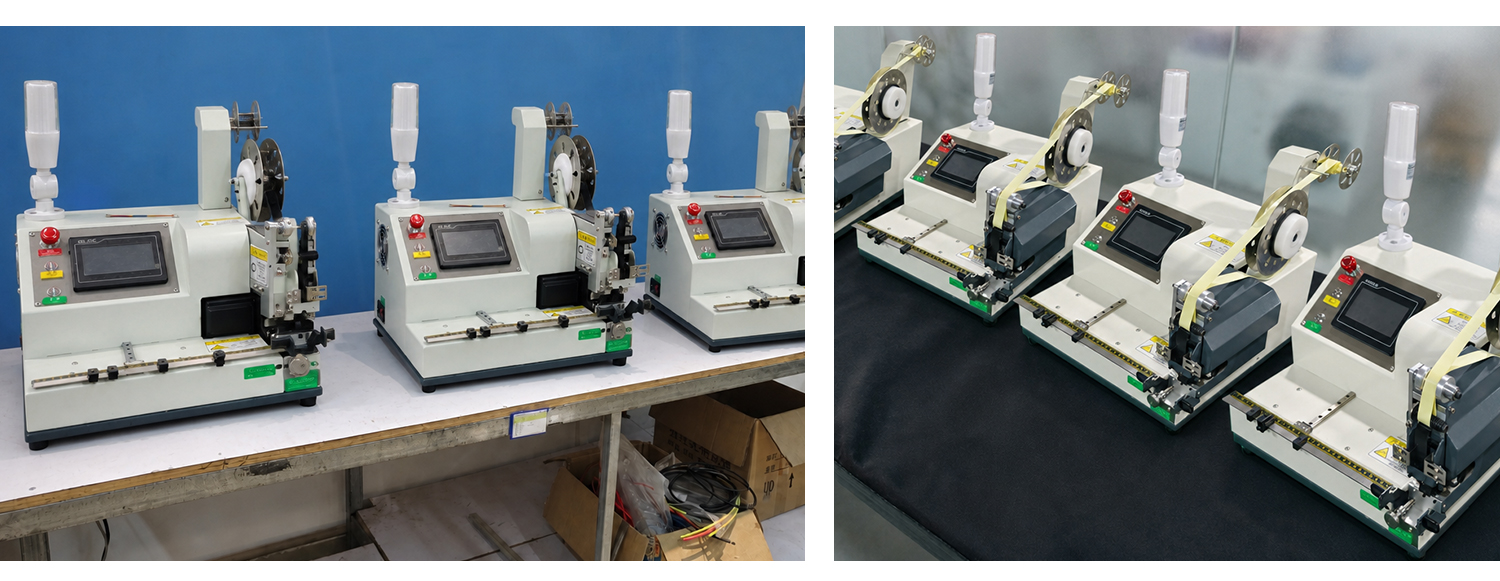

TR-001 Fully Electric Push-Type Tape Winding Machine — detail 1

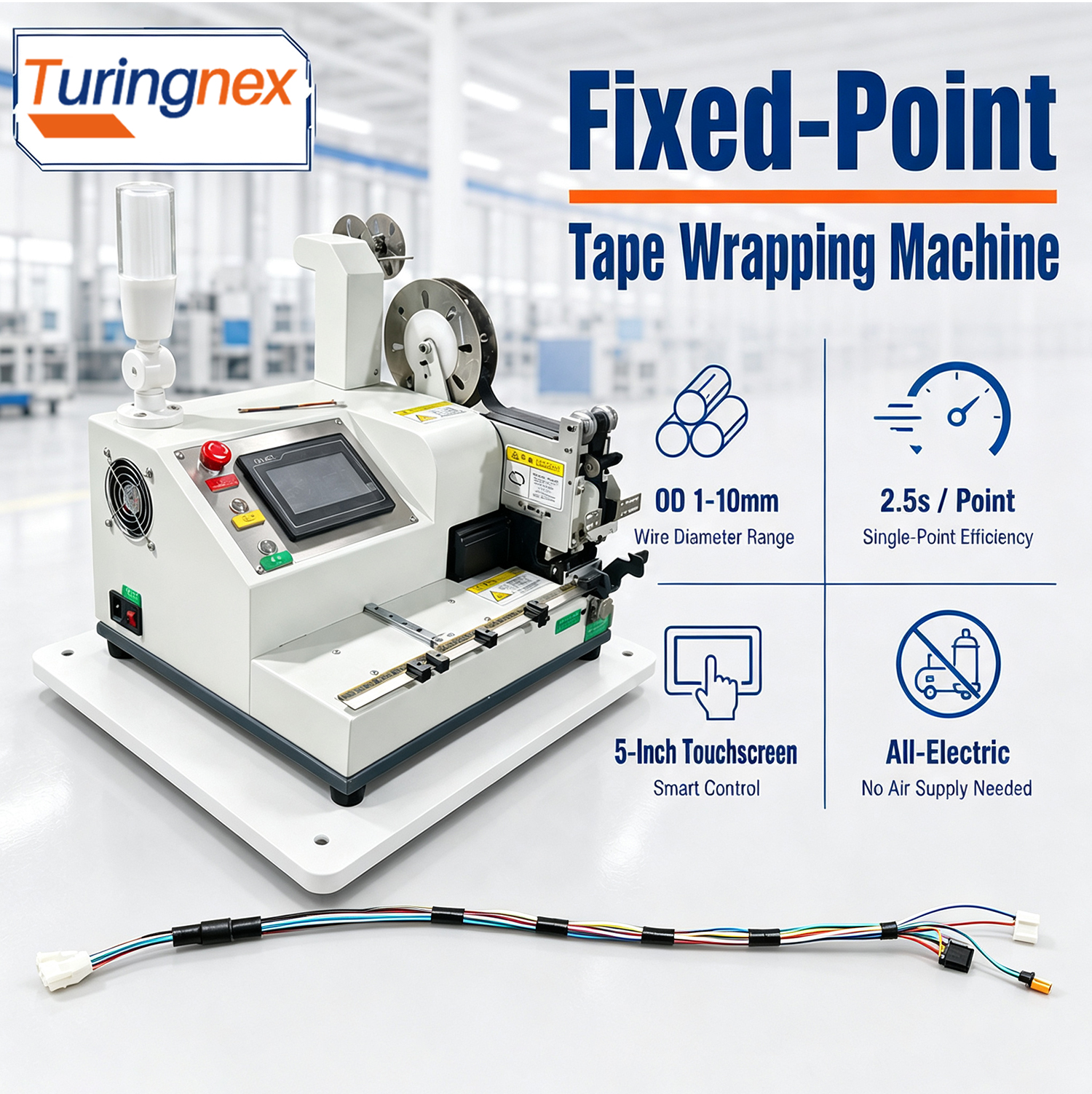

TR-001 Fully Electric Push-Type Tape Winding Machine — detail 2

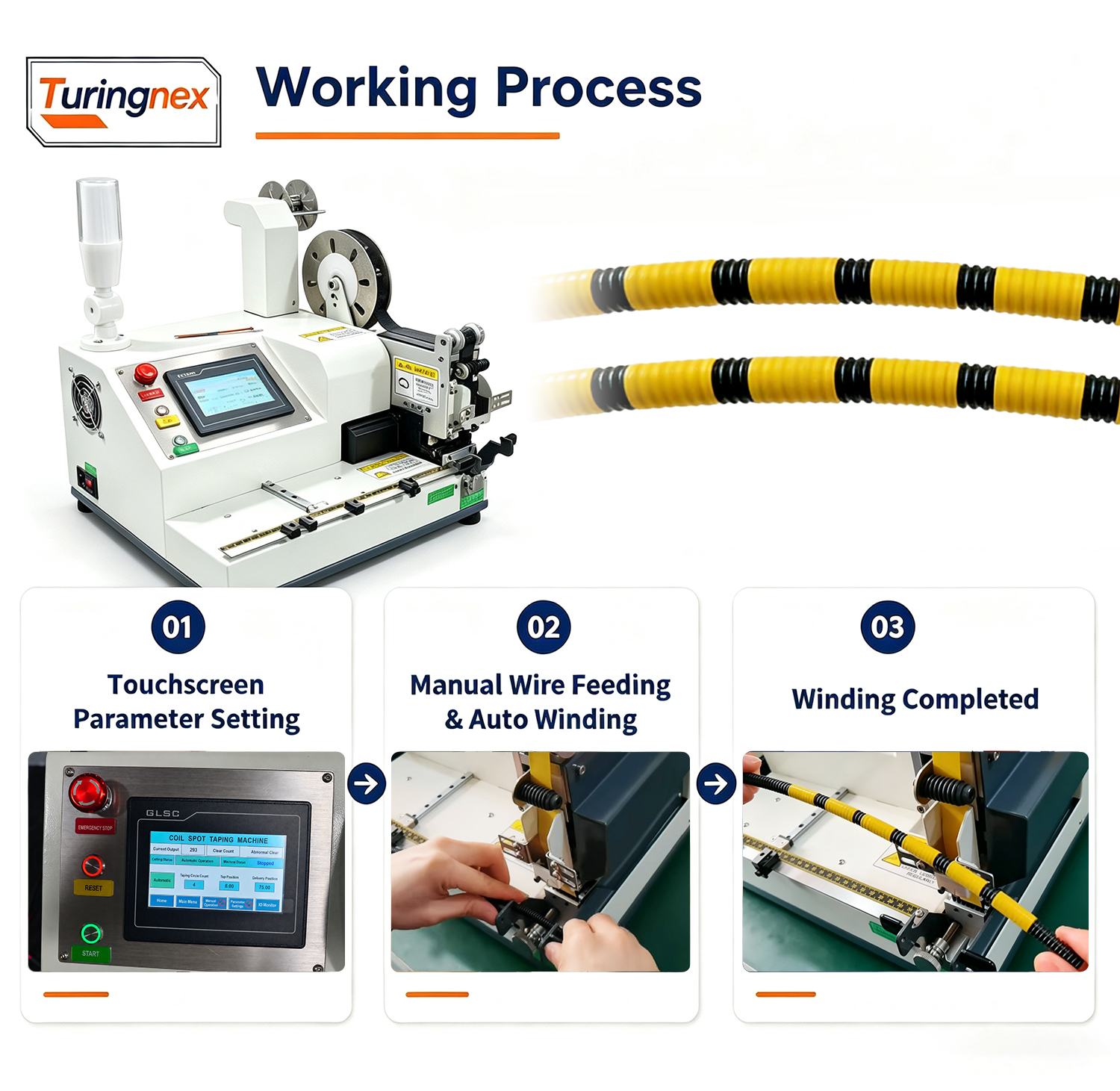

TR-001 Fully Electric Push-Type Tape Winding Machine — detail 3

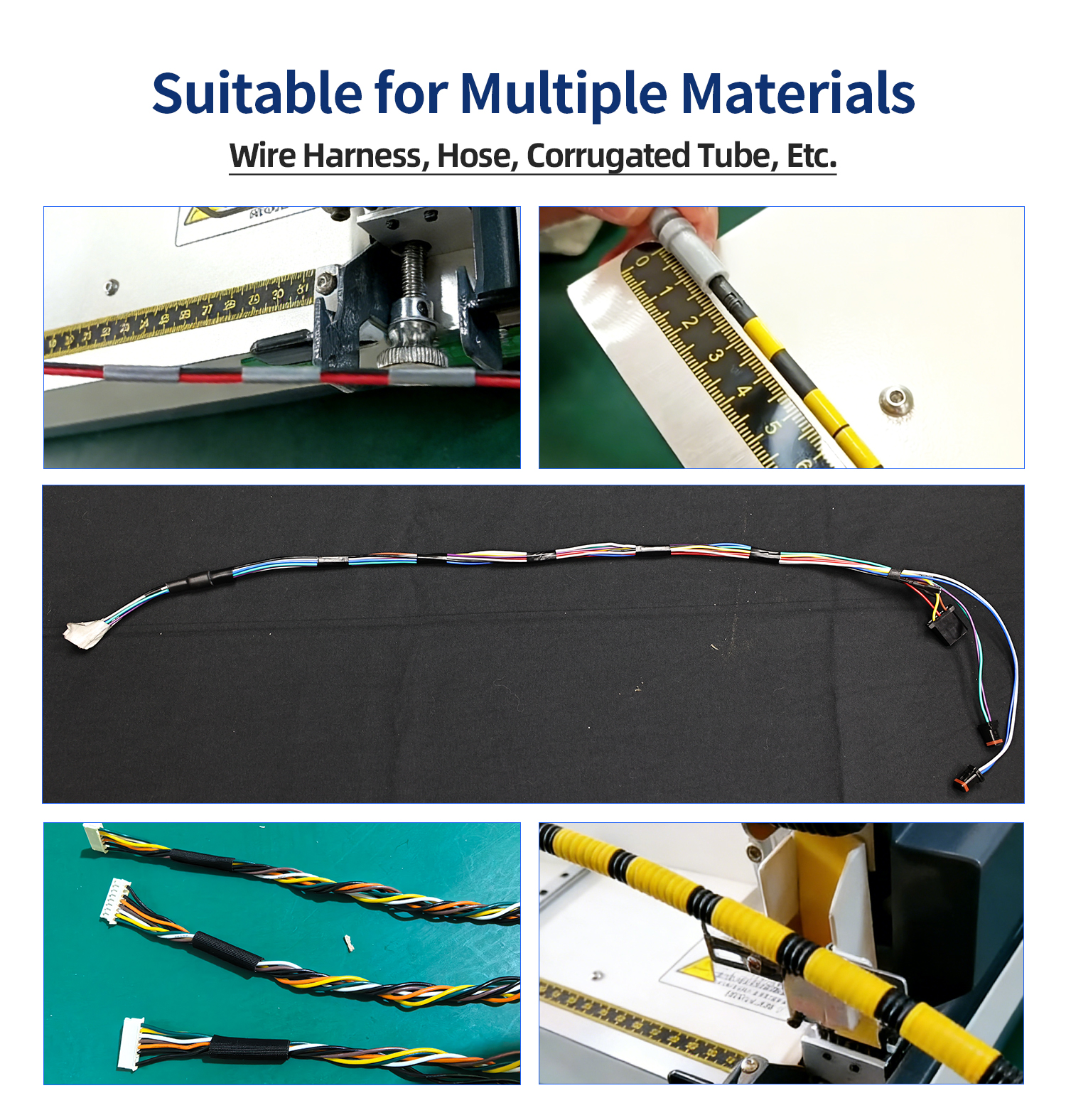

TR-001 Fully Electric Push-Type Tape Winding Machine — detail 4

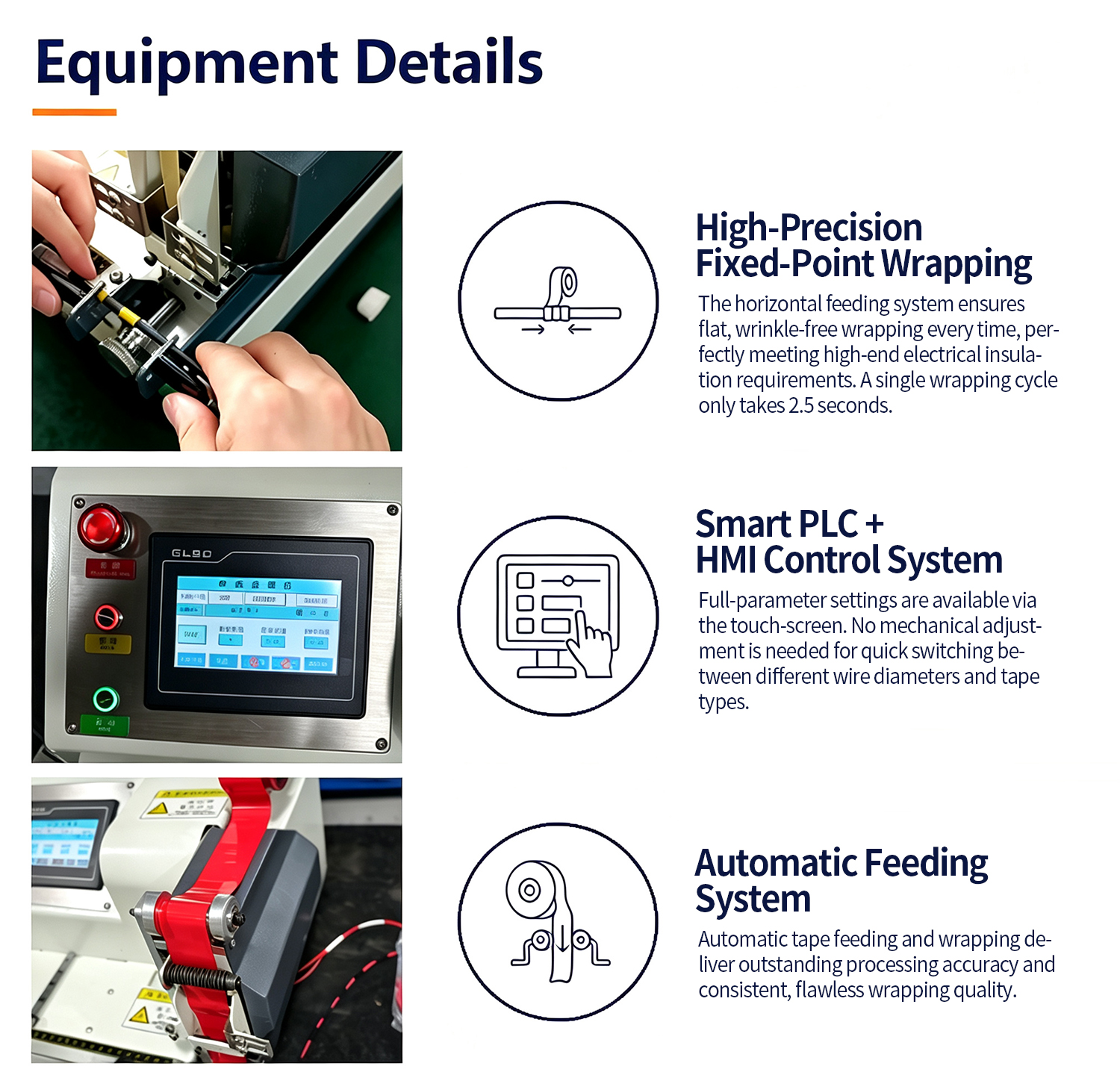

TR-001 Fully Electric Push-Type Tape Winding Machine — detail 5

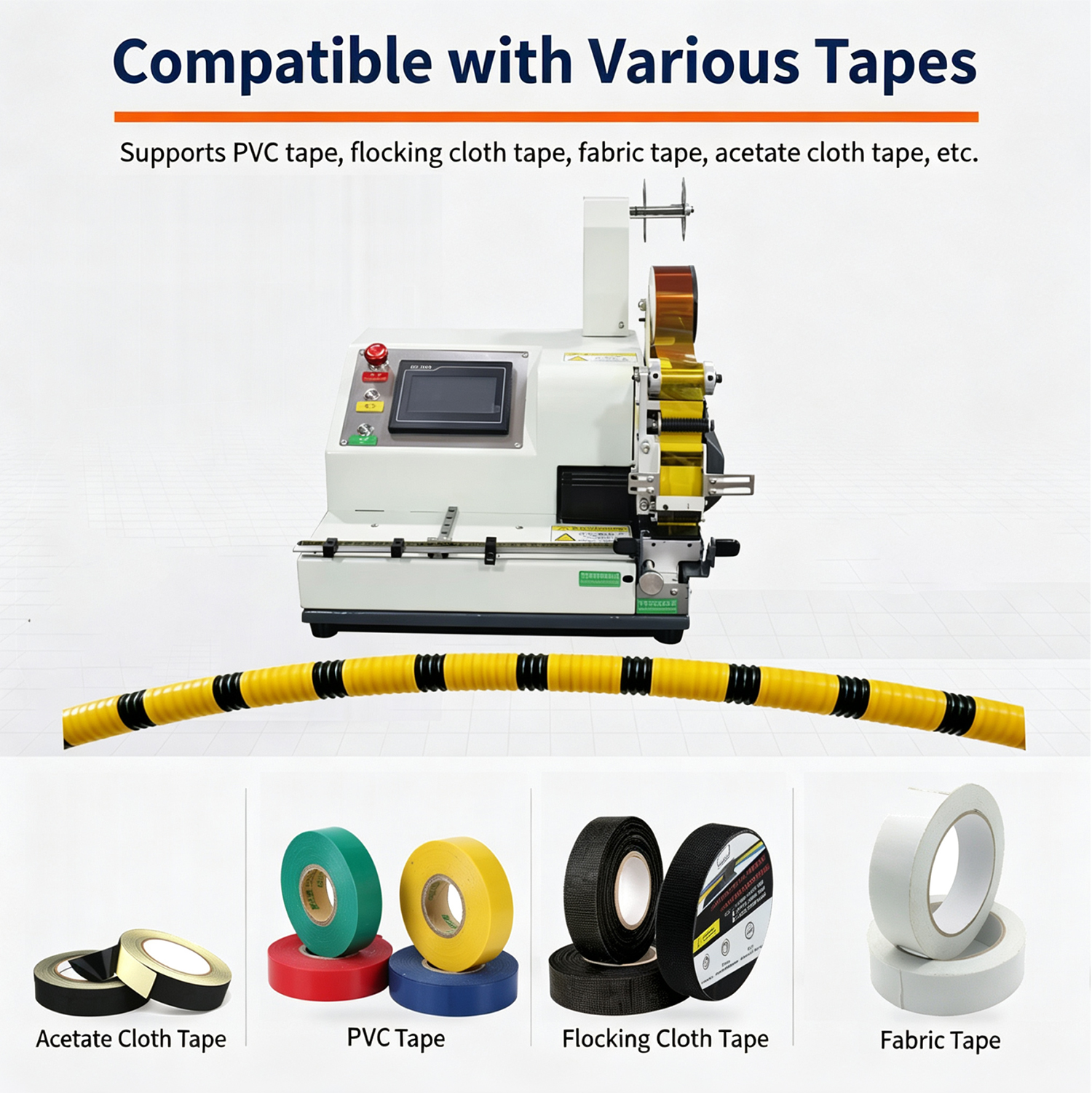

TR-001 Fully Electric Push-Type Tape Winding Machine — detail 6

TR-001 Fully Electric Push-Type Tape Winding Machine — detail 7

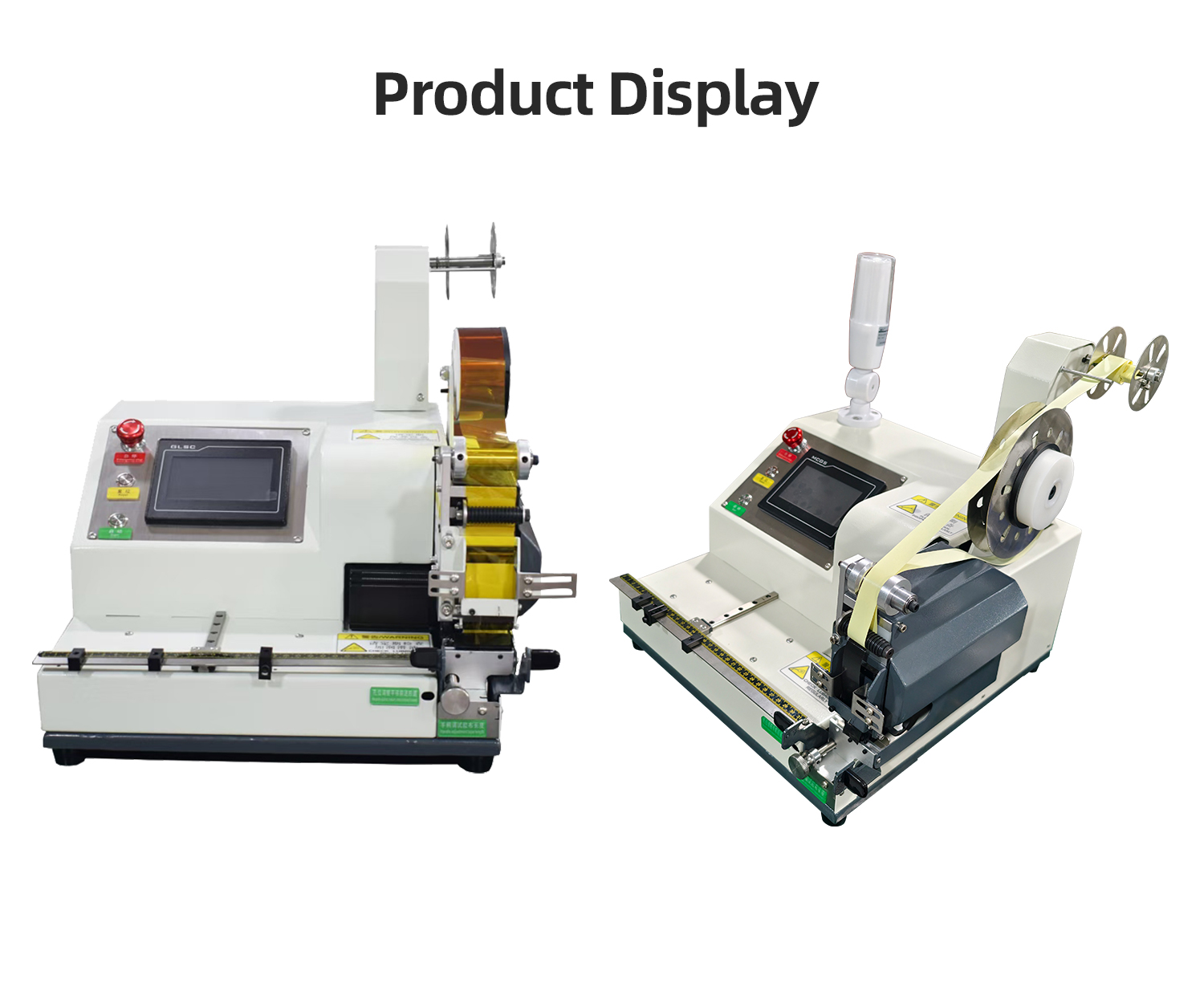

TR-001 Fully Electric Push-Type Tape Winding Machine — detail 8

TR-001 Fully Electric Push-Type Tape Winding Machine — detail 9

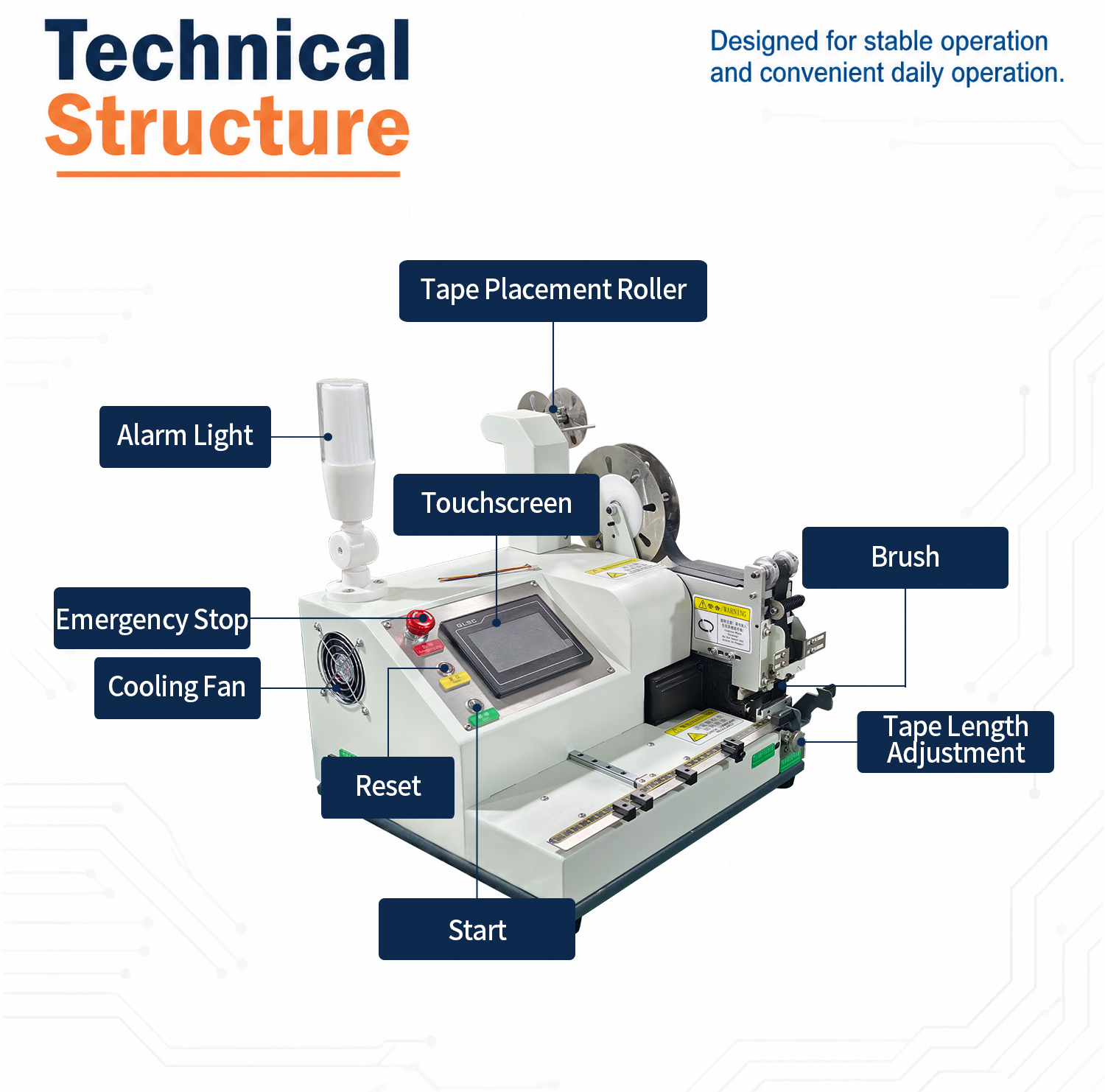

TR-001 Fully Electric Push-Type Tape Winding Machine — detail 10

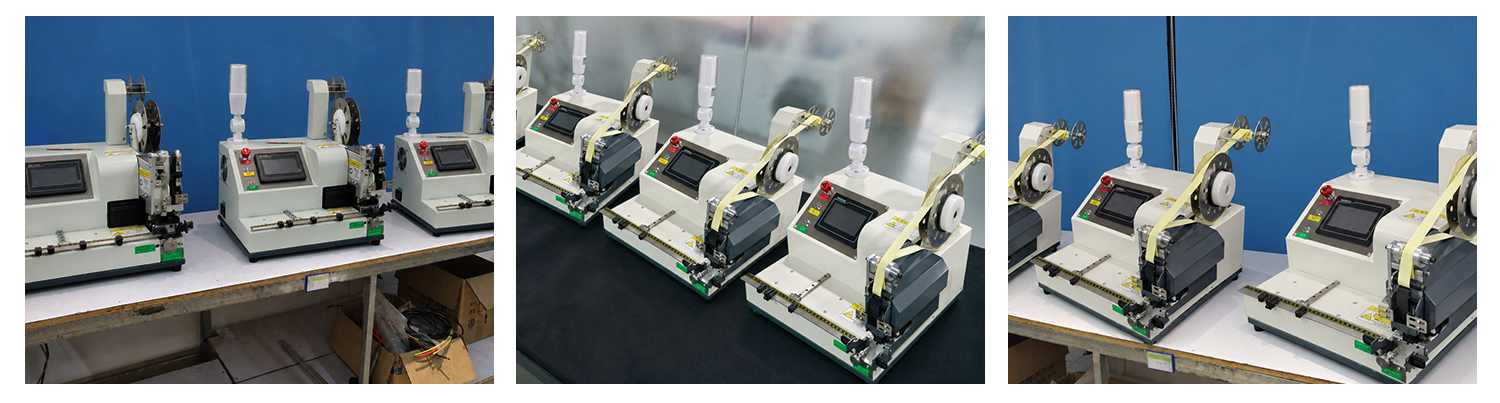

TR-001 Fully Electric Push-Type Tape Winding Machine — detail 11

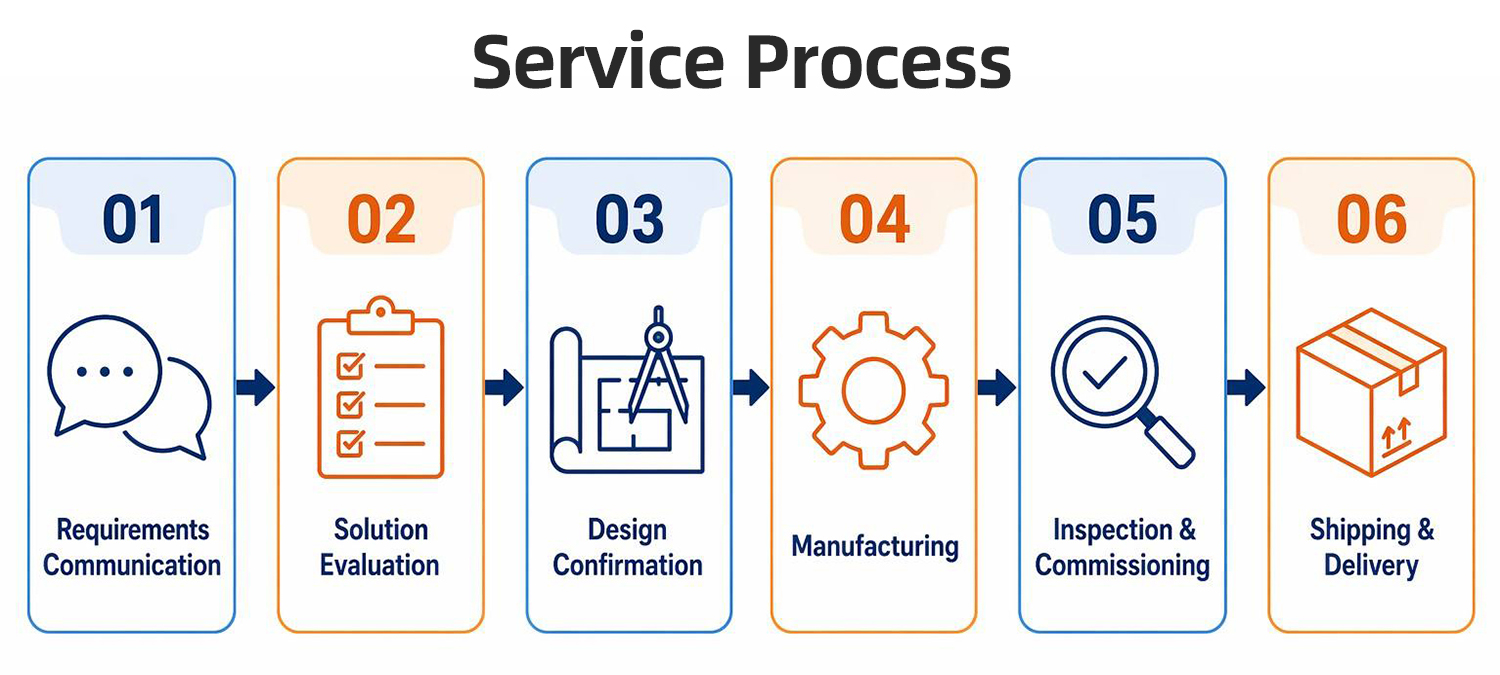

TR-001 Fully Electric Push-Type Tape Winding Machine — detail 12

TR-001 Fully Electric Push-Type Tape Winding Machine — detail 13

TR-001 Fully Electric Push-Type Tape Winding Machine — detail 14

TR-001 Fully Electric Push-Type Tape Winding Machine — detail 15

TR-001 Fully Electric Push-Type Tape Winding Machine — detail 16
